400KG Insulating Glass Production Line With Lifting Sucker

400KG Insulating Glass Production Line With Lifting Sucker
400KG Insulating Glass Production Line With Lifting Sucker 400KG Insulating Glass Production Line With Lifting Sucker 400KG Insulating Glass Production Line With Lifting Sucker 400KG Insulating Glass Production Line With Lifting Sucker 400KG Insulating Glass Production Line With Lifting Sucker

Large Image :  400KG Insulating Glass Production Line With Lifting Sucker

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJXJ400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 20set/month
Contact Now

400KG Insulating Glass Production Line With Lifting Sucker

Description
Name: Glass Cantilever Crane Advantage: With Lifting Sucker
Max Lifting Weight: 400KG
High Light:

400KG Insulating Glass Production Line

,

Rotate Insulating Glass Production Line

,

Glass Lifting Moving Glass Equipment

Hot Sell Glass Cantilever Crane With Four Lifting Suckers 400KG LJXJ400 And Glass Vacuum Suction Sucker Tools

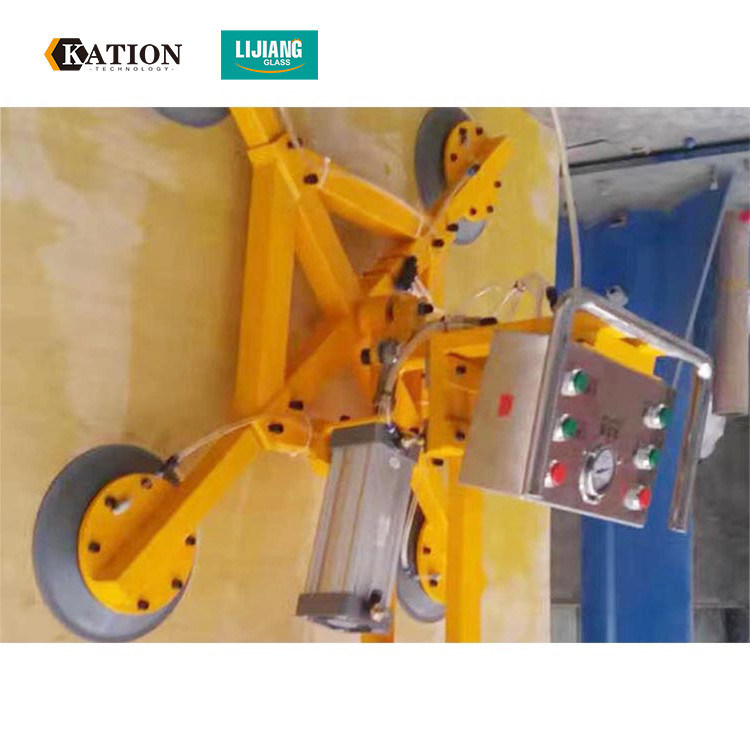

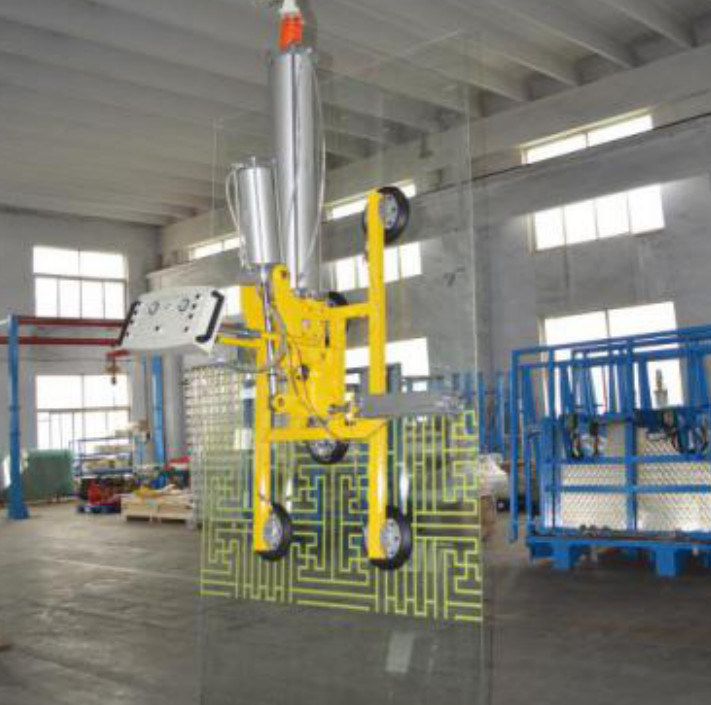

Glass Cantilever Crane with lifting sucker



1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

400KG Insulating Glass Production Line With Lifting Sucker 0

400KG Insulating Glass Production Line With Lifting Sucker 1

400KG Insulating Glass Production Line With Lifting Sucker 2



400KG Insulating Glass Production Line With Lifting Sucker 3

Parameters:

Max Glass weight5 00KG
Rotation angle

Rotate 180

Left and Right

Up and Down
Suction cups  4 Pieces
Cup Materials Silicone
Sliding method Manual
Column height 4 meters Gas storage function
Arm length 4 meters
Air Control parts Airtac


Useing For

-Insulated glass production line,
-Installation of glass curtain wall system,
-Loading and unloading glass sheets on the glass cutting table,
-Installing the windshield of the car.



400KG Insulating Glass Production Line With Lifting Sucker 4

400KG Insulating Glass Production Line With Lifting Sucker 5

400KG Insulating Glass Production Line With Lifting Sucker 6


400KG Insulating Glass Production Line With Lifting Sucker 7

Single Claw Plastic / Aluminum Heavy Duty Glass Vacuum Suction sucker Tools for Tile Ceramic Glass Installation

Feature:



1) Strong traction and lifting force with a surface area of 64 square inches.
2) Dual rubber suction cups feature a loading capacity of 125 lbs and a suction of 4-1 / 2 inches in diameter. Ideal for lifting glass, pulling dents, and handling glass and sheet metal materials.
3) Use the lever active grab to firmly hold the smoothest, non-porous surface.
4) Ideal for glass that is difficult to lift and move, windshields, windows, sheet metal, strong lightweight ABS bodies for car bodies, and large easy-to-grip handles sold in pairs.


Name
Glass Sucker
Handle Material
Aluminum Alloy
Sucker Material
Rubber
Sucker Diameter
122mm
Switch Material
Polyformaldehyde
Net Weight
15kg
Gross Weight
20.30kg
Vertical Suction
150kg
Horizontal Suction
160kg
Package
45 pieces / carton
Suitable for
Smooth surfaces such as tiles, glass



Feature:

1) Strong traction and lifting force with a surface area of 64 square inches.
2) Dual rubber suction cups feature a loading capacity of 125 lbs and a suction of 4-1 / 2 inches in diameter. Ideal for lifting glass, pulling dents, and handling glass and sheet metal materials.
3) Use the lever active grab to firmly hold the smoothest, non-porous surface.
4) Ideal for glass that is difficult to lift and move, windshields, windows, sheet metal, strong lightweight ABS bodies for car bodies, and large easy-to-grip handles sold in pairs.

 400KG Insulating Glass Production Line With Lifting Sucker 8400KG Insulating Glass Production Line With Lifting Sucker 9



Tag:

mechanical vacuum lifter,

hoist lifting equipment,

glass vacuum lifting equipment
