Product Details:
|
| Name: | Spreading Sealant Rotaing Table | Using: | For Manual Sealants Spreading Machine |
|---|---|---|---|
| Max Glass Size: | 1500mm*1500mm | Optional Size: | 2000mm*2000mm |
| Application: | Using For Coating Hollow Glass | Warranty: | 1 Year |
| High Light: | 0.37kw Insulating Double Glass Machine,1500mm*1500mm Insulating Double Glass Machine,Insulating Glass sealant spreading rotated table |
||

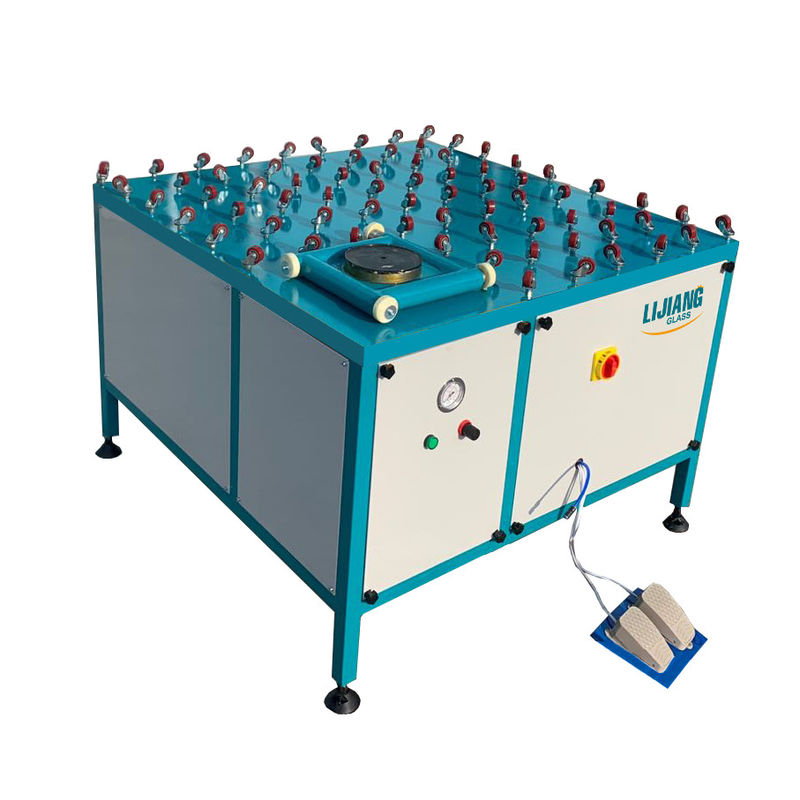

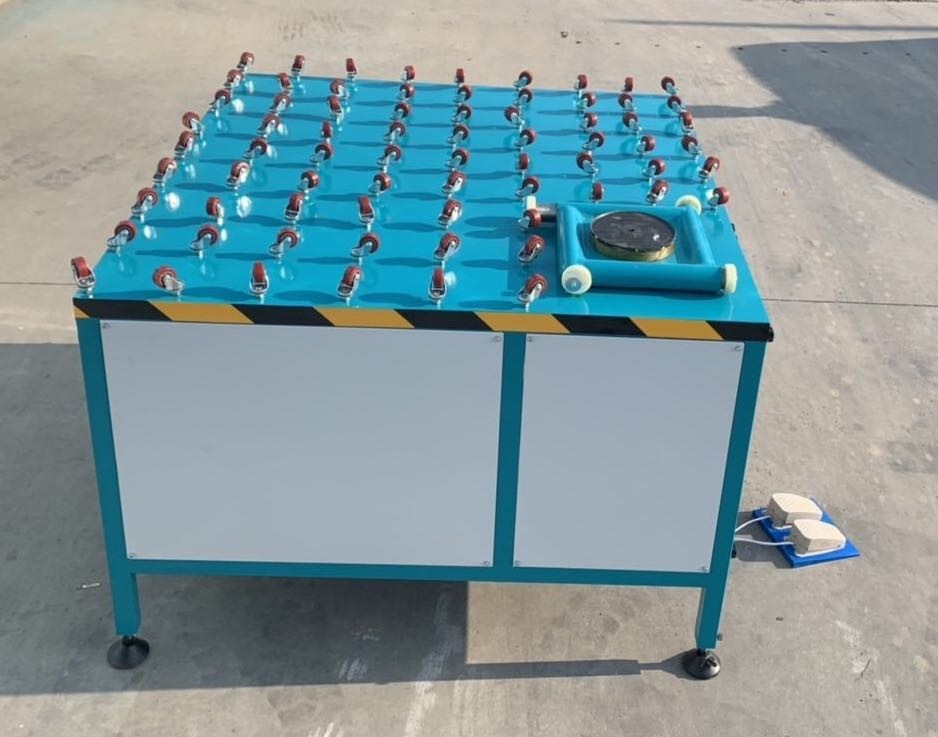

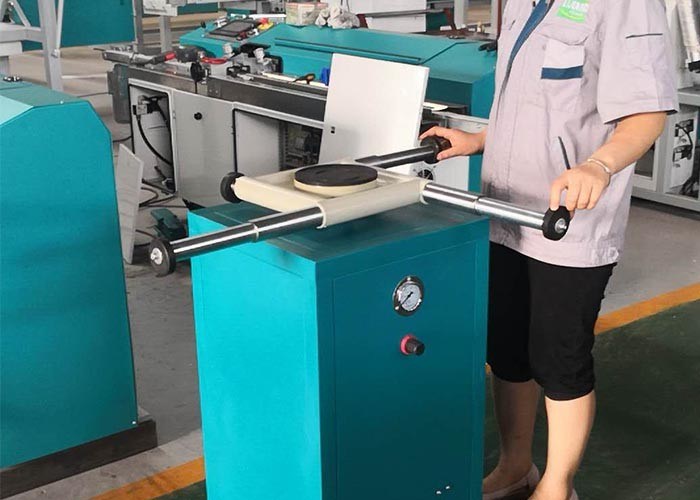

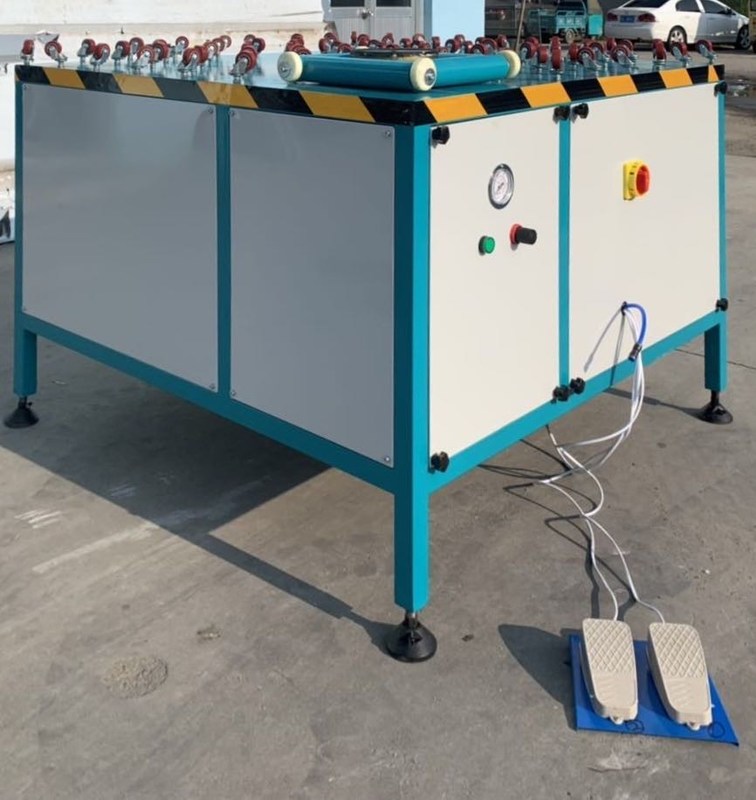

Main feature of sealant spreading rotated table
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data of sealant spreading rotated table
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Related Product
Two-pump Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve the efficiency of the equipment
• Imported sealant gun, stainless steel mixer
• Backflow prevention control structure
• High voltage protector
• Mixing speed detector can control the speed of two types of adhesive
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air pressure | ≥0.8MPa |
| Air supply | Flow 0.8m3/min |
| Overall dimension | 1100*950*1630mm |
Auotomatic Desiccant Filling Machine LJGZ 2020A
Main feature
• Simple and visible touch screen interface
• German Siemens PLC control system
• Height can be adjusted according to the size of the spacer frame
• Automatic loading and refilling of desiccant
• The filling time can be adjusted
• Automatically drill, fill and seal
• Core parts are imported brands
• Use large plastic barrels to save feeding time and improve efficiency
• Head protection device
• Use a vacuum pump mounting device to increase the mounting speed
• Fill large particle molecular sieves (optional)
• Arc frame (optional)
Technical data
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of the aluminum rod, and automatically adjust the adhesive nuzzle
• An important part of the hydraulic system uses imports of components from Germany to ensure even filling of plastic
• High-speed preheating, improved work efficiency
• With preheating function
• Exhaust inflatable feature improves sealing quality and saves plastic time
• Rapid coating speed, up to 47m / min
• Save the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
