Product Details:
|
| Product Name: | Vacuum Lifting Machine | Type: | SC01 |
|---|---|---|---|
| Material: | Stainless Steel | Horizontal Suction Force: | 90KG |
| Vertical Suction Force: | 78KG | Diameter Of Suction Cup: | 123MM |
| Rubber Plate Thickness: | 7MM | ||
| High Light: | 123MM Vacuum Lifting Machine,Double Glazing Vacuum Lifting Machine |
||

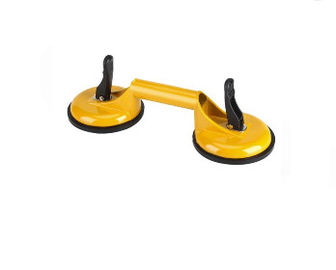

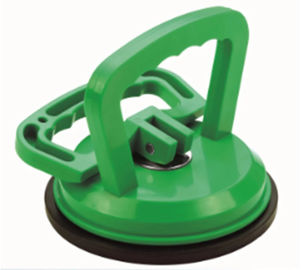

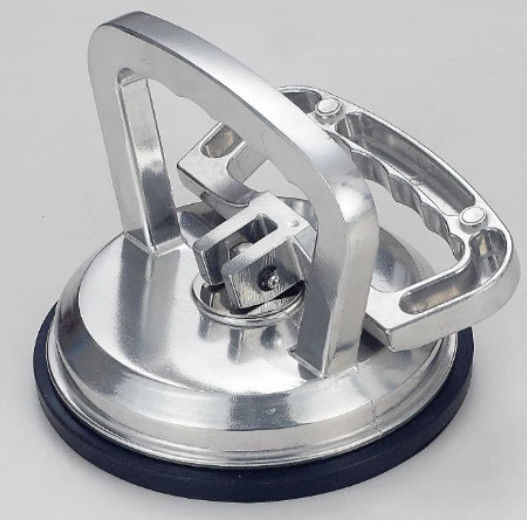

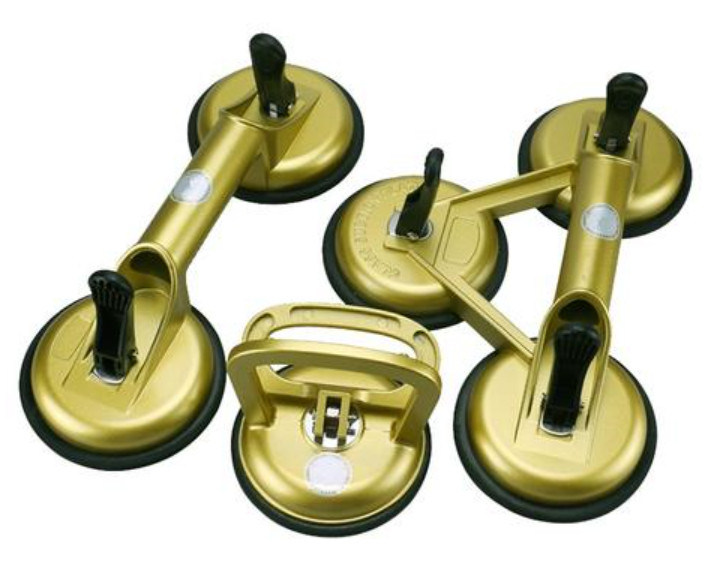

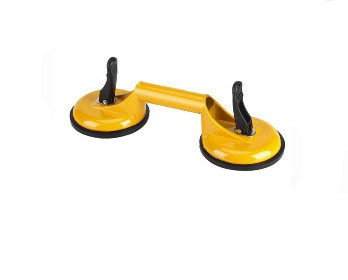

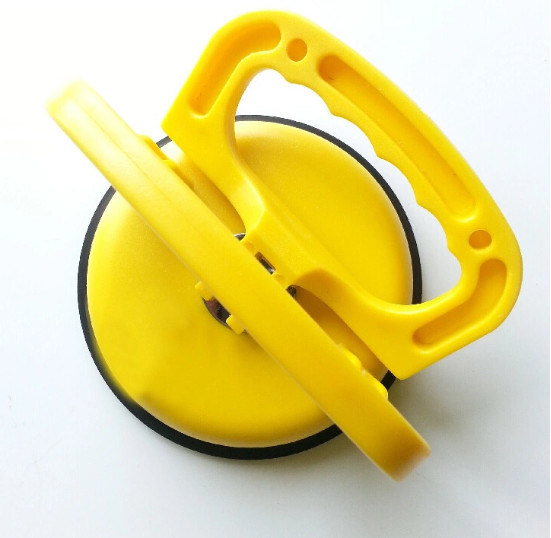

good priceSuction Cup Vacuum lifting machine for double glazing
Application of product:
It is mainly used for sucking flat and smooth objects such as glass and ceramic tiles. It uses the
toughness and deformation of the rubber chassis to create a vacuum, and uses atmospheric
pressure to suck the items firmly, so as to achieve the purpose of lifting and carrying the items.
This screen lists some feature buttons that are frequently used in everyday production.
When production is finished, use this function to close the press plate to prevent dust
Prevents falling on contaminated glass and avoids the effects of moist air on flat surfaces
Of the holding plate.
When the first piece of glass sticks to the front holding plate, take it out with this function
Glass, press plate closes automatically, releases glass and sends to press
Release section.
Note: When using this feature, you need to make sure that the conveyor is free of glass
It is easy to crush the belt of the back pressure plate, otherwise the glass. The second one is
Entered a flat pressure section of glass, it can switch to manual mode on the contrary
Glass.
Front panel display position correction value: For correcting deviation
Between the front panel open position and the actual front panel open position.
Actual opening of the front plate: The position of the front plate is displayed in real time.
Front plate electronic ruler value: Real-time display electronic ruler value.
Electronic ruler value when the front plate is opened for overhaul: value
Set the electronic ruler when the overhaul front plate is opened.
Electronic ruler value when the front plate is zero: Electronic value
A ruler when the front plate is completely closed.
Beam display position correction value: It is for correcting the deviation between
The position of the beam and the actual position of the beam expansion.
Actual Beam Position: Shows the beam position in real time.
Beam electronic ruler value: The value of the beam electronic ruler displayed in real time.
The value of the electronic ruler when the beam is extended: the value of the electron
A ruler when the beam's DC electric push rod is fully extended.
Electronic ruler value when the beam is zero: Electronic ruler value
When the beam's DC electric push rod is fully retracted.
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
