26s 0.65MPa Insulating Glass Spacer Bending Machine

26s 0.65MPa  Insulating Glass Spacer Bending Machine
26s 0.65MPa  Insulating Glass Spacer Bending Machine 26s 0.65MPa  Insulating Glass Spacer Bending Machine 26s 0.65MPa  Insulating Glass Spacer Bending Machine 26s 0.65MPa  Insulating Glass Spacer Bending Machine 26s 0.65MPa  Insulating Glass Spacer Bending Machine

Large Image :  26s 0.65MPa Insulating Glass Spacer Bending Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 21000-24000 USD/SET
Packaging Details: Woodencase ect
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20SET/MONTH

26s 0.65MPa Insulating Glass Spacer Bending Machine

Description
Max Bending Size: 2000*2000 Min Bending Size: 250*200
Air Supply: 0.65MPa Name: Aluminium Spacer Bar Bending For Insulating Glass Making Machine
High Light:

Insulating Glass Spacer Bending Machine

,

26s Spacer Bending Machine

,

0.65MPa Aluminium Spacer Bending machine

Aluminium Spacer Bar Bending insulating glass automatic spacer bending machine

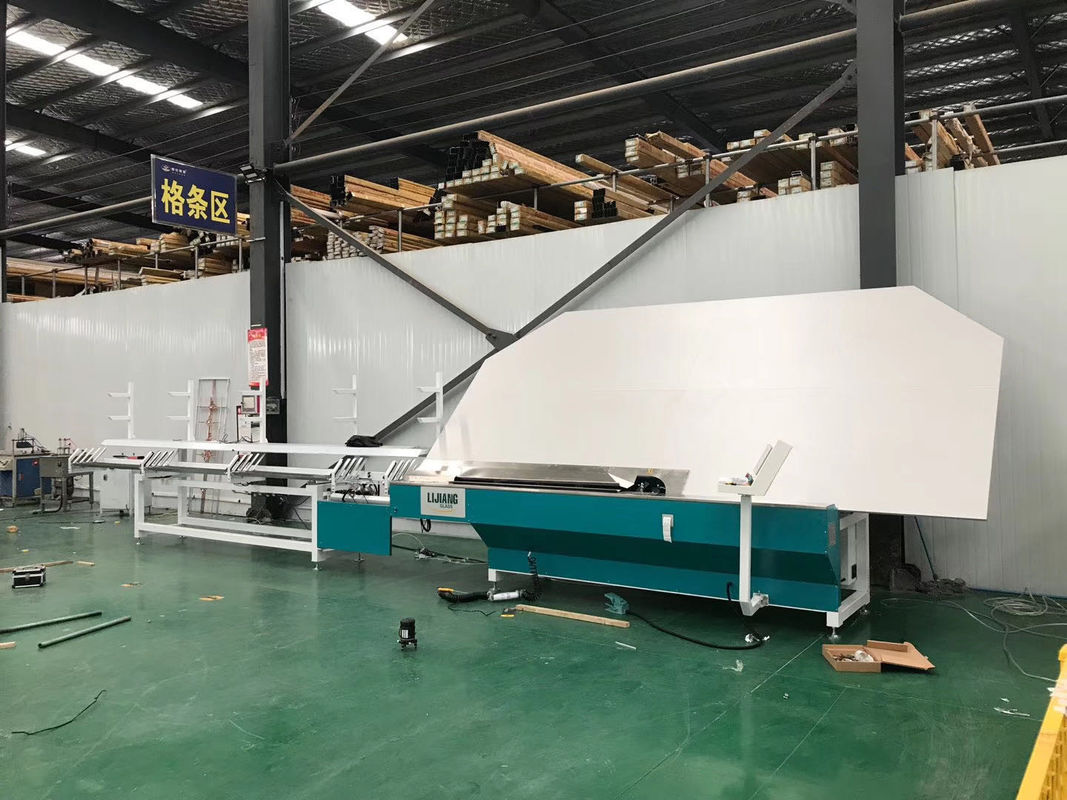

The automatic roll bending machine is a special device for the production of aluminum insulated glass units, which replaces the conventional production technology. The device can simultaneously manufacture different polygonal convex aluminum frames with a single aluminum strip, increasing the strength of the aluminum frame and improving the sealing effect of the insulating glass.

26s 0.65MPa  Insulating Glass Spacer Bending Machine 026s 0.65MPa  Insulating Glass Spacer Bending Machine 126s 0.65MPa  Insulating Glass Spacer Bending Machine 2

26s 0.65MPa  Insulating Glass Spacer Bending Machine 3

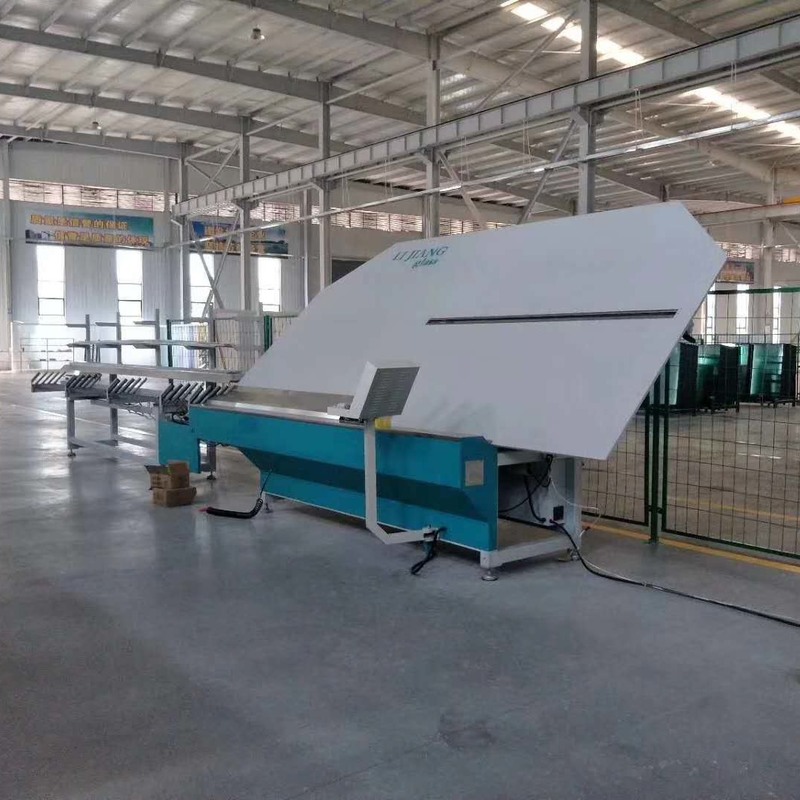

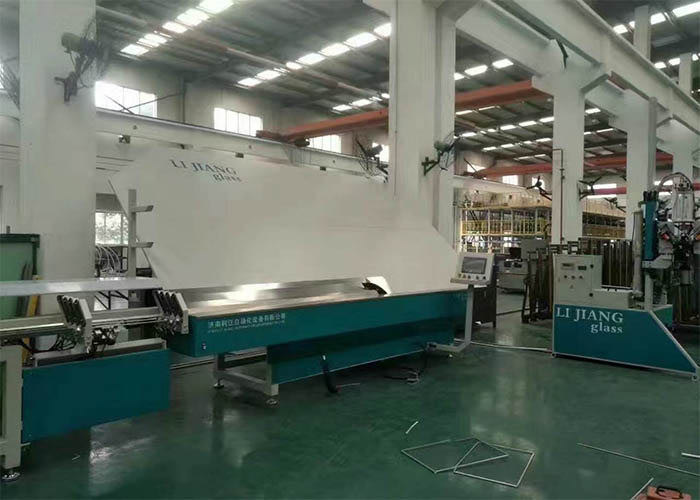

Equipment details

26s 0.65MPa  Insulating Glass Spacer Bending Machine 426s 0.65MPa  Insulating Glass Spacer Bending Machine 5

Uses Siemens PLC control system
There are 4 Siemens servos
There are 4 sets of shelves that can store spacers of different sizes. Use Siemens servo drives to replace different racks.
Aluminum spacers are automatically cut and shipped
Continuously curved spacer frame
Automatically avoid joint corners when folding or cutting
Instead of grabbing the pad from below, the machine grabs the pad from above to solve the old-fashioned flip problem.
Industrial computer technology is used to allow industrial computer technicians to draw in the field and stack the drawn graphics directly.
Fold the frame in big steps using a special mechanical manual device

Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

26s 0.65MPa  Insulating Glass Spacer Bending Machine 626s 0.65MPa  Insulating Glass Spacer Bending Machine 726s 0.65MPa  Insulating Glass Spacer Bending Machine 8

Leading Technology

  • Spacer printing code function (Optional)

26s 0.65MPa  Insulating Glass Spacer Bending Machine 9

  • Spacer printing code function (Optional)

26s 0.65MPa  Insulating Glass Spacer Bending Machine 10

  • Printing paper label sticker function (Optional),could remove it easily.

26s 0.65MPa  Insulating Glass Spacer Bending Machine 11

Company Information

Founded in 2009, Kation-Tech specializes in R & D, manufacturing and sales of insulated glass machines and related auxiliary equipment for the deep glass processing industry and the door and window construction industry. The basis of professional processing such as insulated glass machines, aluminum plastic door and window machines and related auxiliary materials. Until 2019, we exported glass machinery and materials to America, South America, Europe, Middle East, India and more. , Almost 30 countries and regions. We have established perfect international business relationships with 10 strong agents and worked together to build a world-famous international brand. Kation-Tech will win the future with you with know-how, profession and integrity!

26s 0.65MPa  Insulating Glass Spacer Bending Machine 12

Electrical parameters



NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor GERMAN SIEMENS Solenoid valve Taiwan AIRTAC
Servo driver GERMAN SIEMENS Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI



26s 0.65MPa  Insulating Glass Spacer Bending Machine 13
