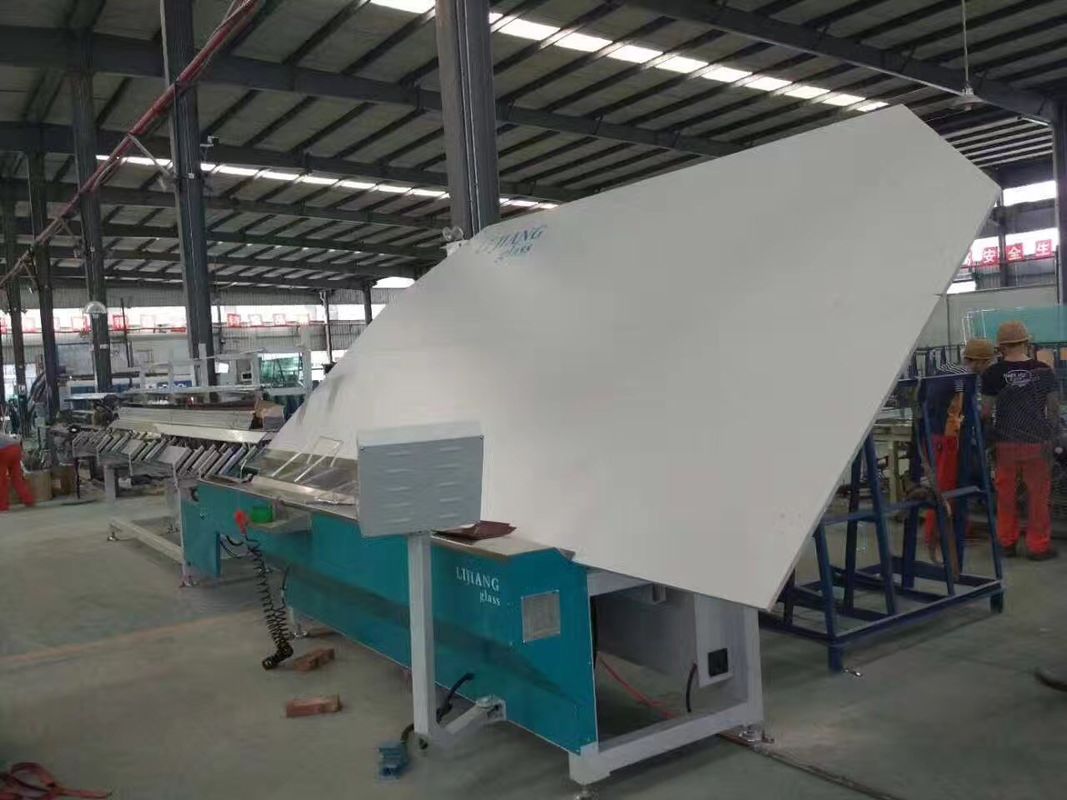

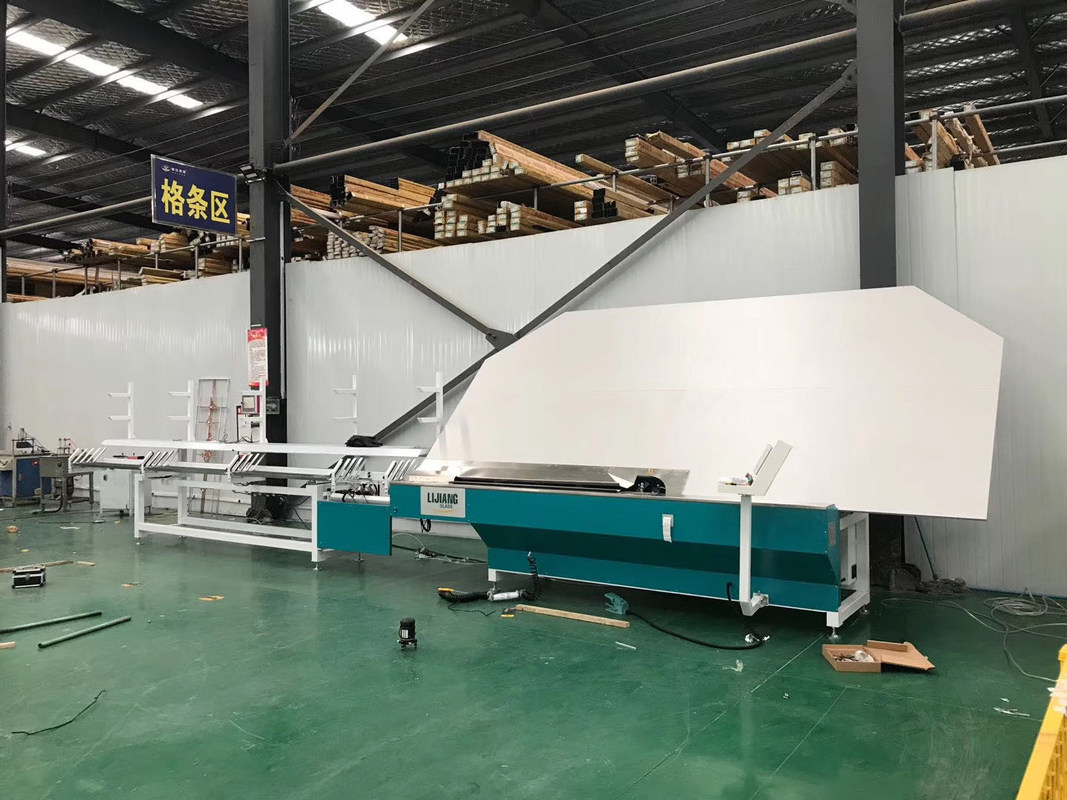

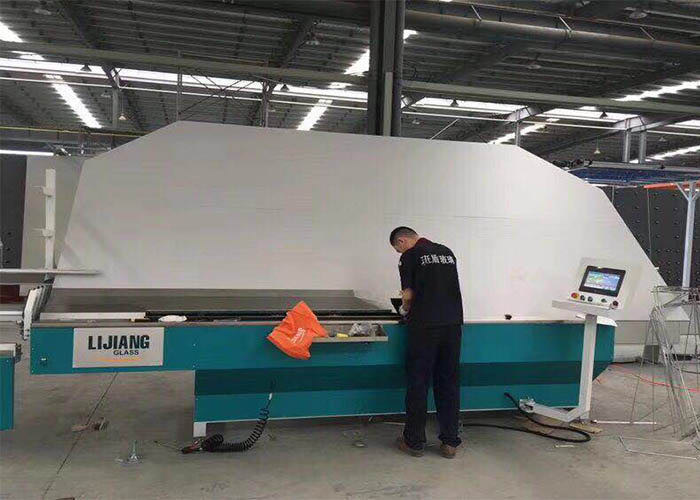

PLC 2000*2000 Aluminum Spacer Bending Machine

PLC 2000*2000 Aluminum Spacer Bending Machine
PLC 2000*2000 Aluminum Spacer Bending Machine PLC 2000*2000 Aluminum Spacer Bending Machine PLC 2000*2000 Aluminum Spacer Bending Machine PLC 2000*2000 Aluminum Spacer Bending Machine

Large Image :  PLC 2000*2000 Aluminum Spacer Bending Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 21000-24000 USD/SET
Packaging Details: Woodencase ect
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20SET/MONTH

PLC 2000*2000 Aluminum Spacer Bending Machine

Description
Max Bending Size: 2000*2000 Min Bending Size: 250*200
Air Supply: 0.65MPa Name: Automatic Aluminum Spacer Bending Machine Insulating Glass Automatic Spacer Bender
High Light:

2000*2000 Spacer Bending Machine

,

PLC Spacer Bending Machine

,

Insulating Glass Automatic Spacer Bender

Automatic Aluminum Spacer Bending Machine Insulating Glass Automatic Spacer Bender



The automatic spacer bending machine is a special device for the production of aluminum frame made of insulated glass, which replaces the traditional production technology. The device can create various convex polygonal aluminum frames, each with an aluminum strip, which strengthens the strength of the aluminum frame and further enhances the sealing effect of the insulating glass.

PLC 2000*2000 Aluminum Spacer Bending Machine 0

Equipment details

Approved Siemens PLC control system
There are 4 Siemens servos
We use 4 sets of racks that can store spacers of different sizes. Use Siemens servos to replace different stands.
Aluminum spacers are automatically cut out and shipped

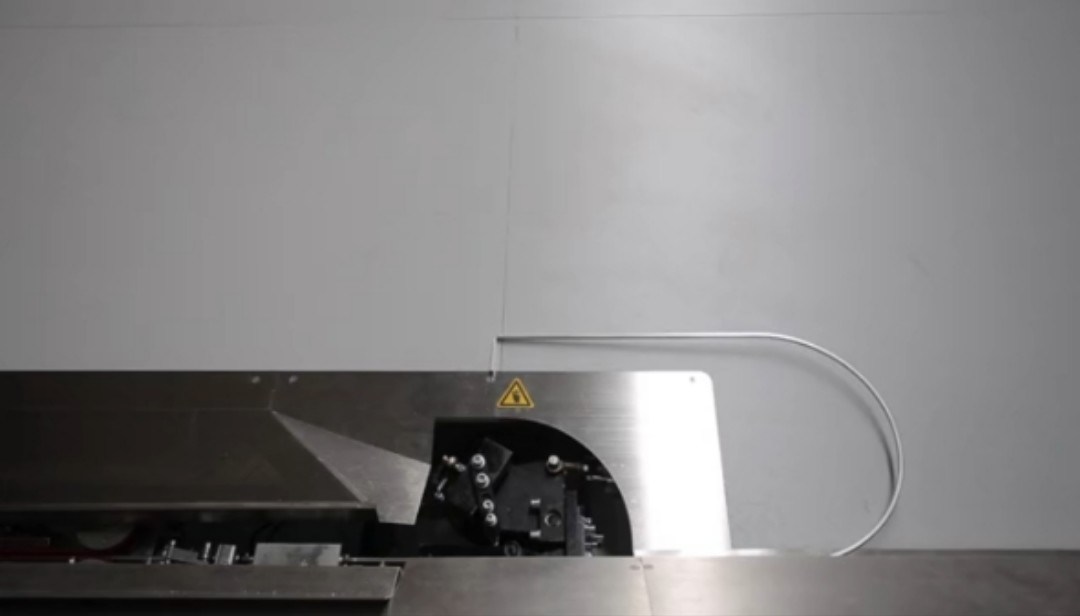

Continuously bent spacer frame
Automatically avoid connection corners when bending or cutting
Instead of grabbing the spacer from below, the machine grabs the spacer from above, solving the old-fashioned flip problem.
It uses industrial computer technology that allows industrial computer workers to draw on-site and directly bend the graphics they draw.
A separate mechanical hand tool is used to bend the large spacer frame

Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

PLC 2000*2000 Aluminum Spacer Bending Machine 1PLC 2000*2000 Aluminum Spacer Bending Machine 2PLC 2000*2000 Aluminum Spacer Bending Machine 3

Leading Technology

  • Spacer printing code function (Optional)

PLC 2000*2000 Aluminum Spacer Bending Machine 4

  • Spacer printing code function (Optional)

PLC 2000*2000 Aluminum Spacer Bending Machine 5

  • Printing paper label sticker function (Optional),could remove it easily.

PLC 2000*2000 Aluminum Spacer Bending Machine 6

Company Information



PLC 2000*2000 Aluminum Spacer Bending Machine 7

Electrical parameters



NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor GERMAN SIEMENS Solenoid valve Taiwan AIRTAC
Servo driver GERMAN SIEMENS Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI



PLC 2000*2000 Aluminum Spacer Bending Machine 8



Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
