50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue
50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue

Large Image :  50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue

Product Details:
Place of Origin: Jinan, China
Brand Name: JINAN LIJIANG
Certification: CE certification
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: Within 20days
Payment Terms: L/C, T/T
Supply Ability: 10set per month

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue

Description
Name: Automatic Insulated Glass Sealing Robot Glass Thickness: 12-50mm
Working Speed: 5-40m/min Max Glass Size: 2500*4000mm
Min Glass Size: 300*300mm Air Pressure: >0.6MPa
Type: IG Machines Applicantion: Insulating Glass Processing
High Light:

50mm Insulated Glass Sealing Machine

,

0.6MPa Insulated Glass Sealing Machine

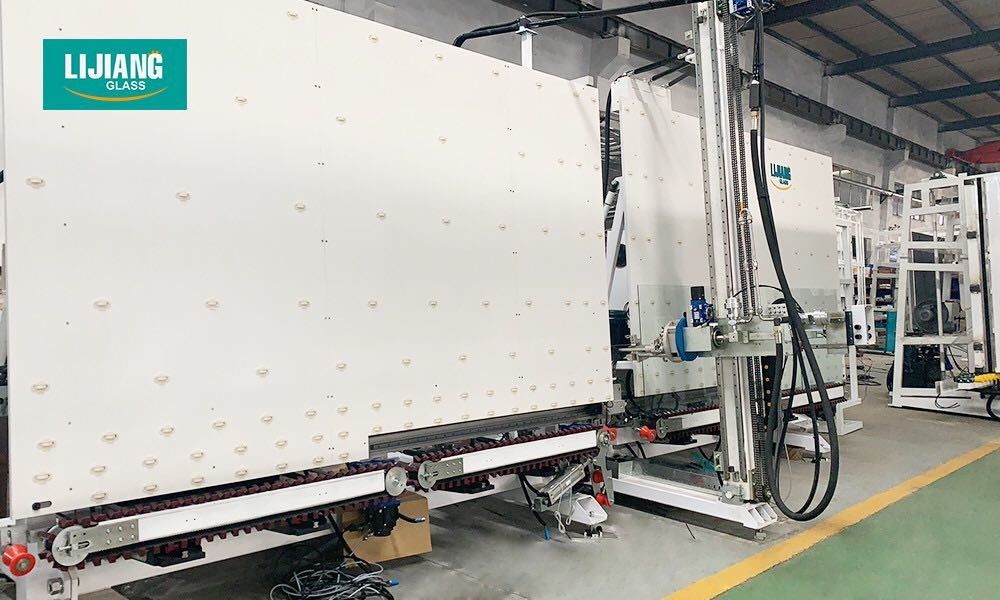

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 0                    Automatic Vertical Insulated Glass Sealing Machine For Polysulfide Glue and Silicone Glue

Product Description of sealing robot

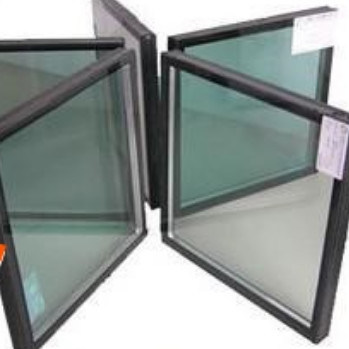

Automatic Vertical Insulated Glass Sealing Machine can automatically recognizing glass size by sensors, don't need input glass size on the touch screen. The sealing robot can coat 8 kinds of shaped IGU.

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 1

Product Detail :

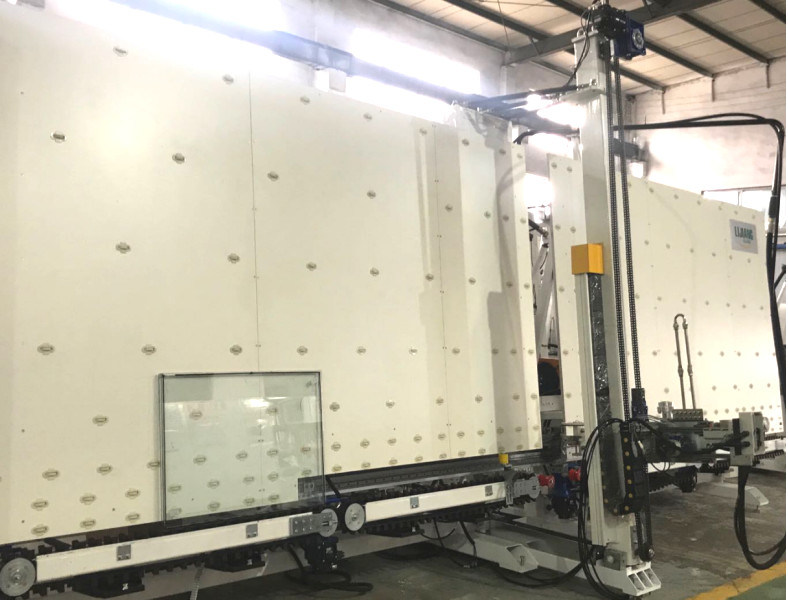

1.Hollow Glass sealing machine adopt 8 sets of Japan ANCHUAN servo control system with stable performance.

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 2



2.Glass corners are full without air bubbles, smooth surface, no corner trimming required

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 3



3.Glue system can be selected



Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

One Set of Glue System Equipped with single A component and single B component.



4. Two Suckers Device

Adopting two suckers for preventing to move glass during sealing.

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 4

5. Timing belt

Time belt device ensure that glass can be smooth transmission and positioned accurately.

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 5



6. Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 6



Technical parameters



Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm



Related Product



Butyl Extruder Machine LJTB 01



50mm Vertical Insulated Glass Sealing Machine For Polysulfide Silicone Glue 7

Main feature

• PLC control system, touch screen interface

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency



Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg
