Product Details:
|
Name: | Automatic IG Line Insulating Glass Processing Machine | Max. Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min. Glass Size: | 280mm*400mm | Washing Brushes: | 3 Pairs |
High Light: | glass processing machines,insulating glass line |
Description of Automatic IG Line

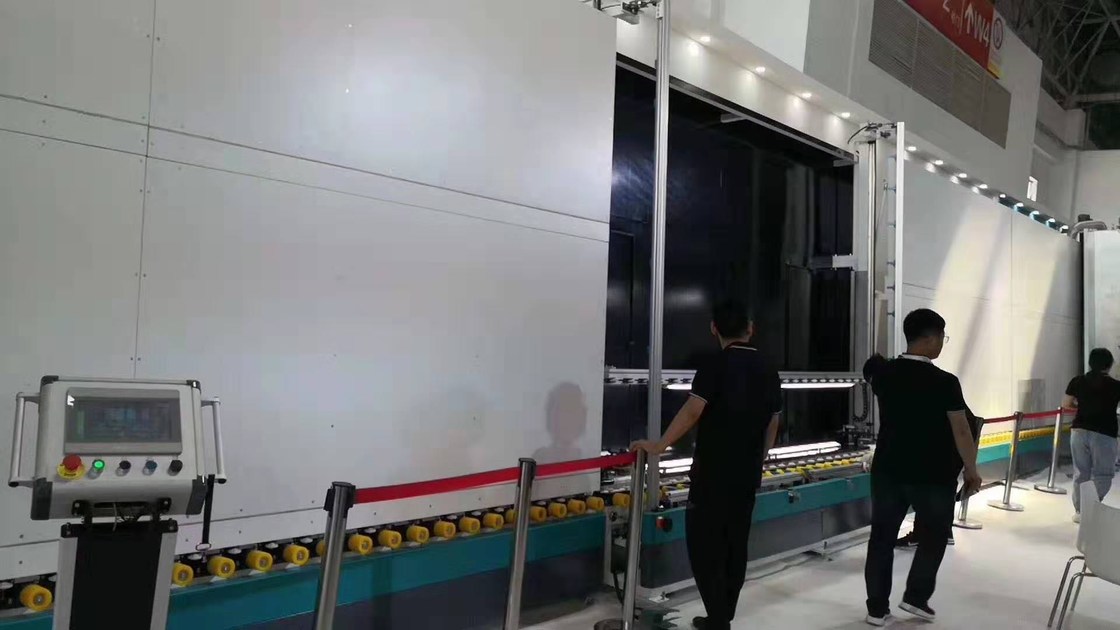

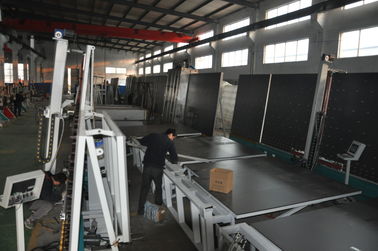

Double glazing glass processing line ( with Argon gas online filling) consists of four sections, transfer section, washing section, inspection section and pressing section (Totally 7 parts). It uses advanced technology to make high-quality and variety DGU automatically, such as double glass, triple glass, Low-e glass, shaped glass and stepped glass. Whats' more, a new IG line which can fill two pieces of double glass at the same time.
The low-e glass / Step glass / Triple glass / Shaped glass / Filling gas functions are optional. And The size of LJBZ2535G IG line with filling gas can fill gas into the max glass of 2500*3200mm, not 2500*3500mm.
Model | Min size | Max size | Low-e glass | Step glass | Triple glass | Filling gas (G) |
LJBZ1825 | 300*500 | 1800*2500 | √ | √ | √ | √ |
LJBZ2025 | 300*500 | 2000*2500 | √ | √ | √ | √ |
LJBZ2230 | 300*500 | 2200*3000 | √ | √ | √ | √ |
LJBZ2530 | 300*500 | 2500*3500 | √ | √ | √ | √ |
Detail of IG Line
1. Production name :Insulating glass processing line with online gas filling
2. Model : LJBZ2535G
3. Origin place : JINAN , CHINA
4. Color : Blue ( Bright white), many colors can be customerized
5. Length : 23.5m
6. Direction: Right to left
7. Shaped glass: One side must be straight
8. Min glass size: 450*280mm
9. Height (Rollers to ground): 520mm
10. Step glass : Small glass is inside or outside
11. Glass thickness : 3 - 15mm
12. Insulating glass thickness : 60mm
13. Glass washing speed : 2 - 10m/min
14. Glass conveyor speed : 48m/min
15. Max glass size : 2500*3500mm
16. Max glass size for filling gas : 2500*3200mm
17. Warranty : 12 months
18. Washing brushes : 3 pairs of soft brushes
19. Materials of washing machine : Stainless steel
20. Function : Making DGU/Step glass/ Shape glass/ Triple glass/ Filling argon gas
MAIN FEATURES
Electrical parameters
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Technical data
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
