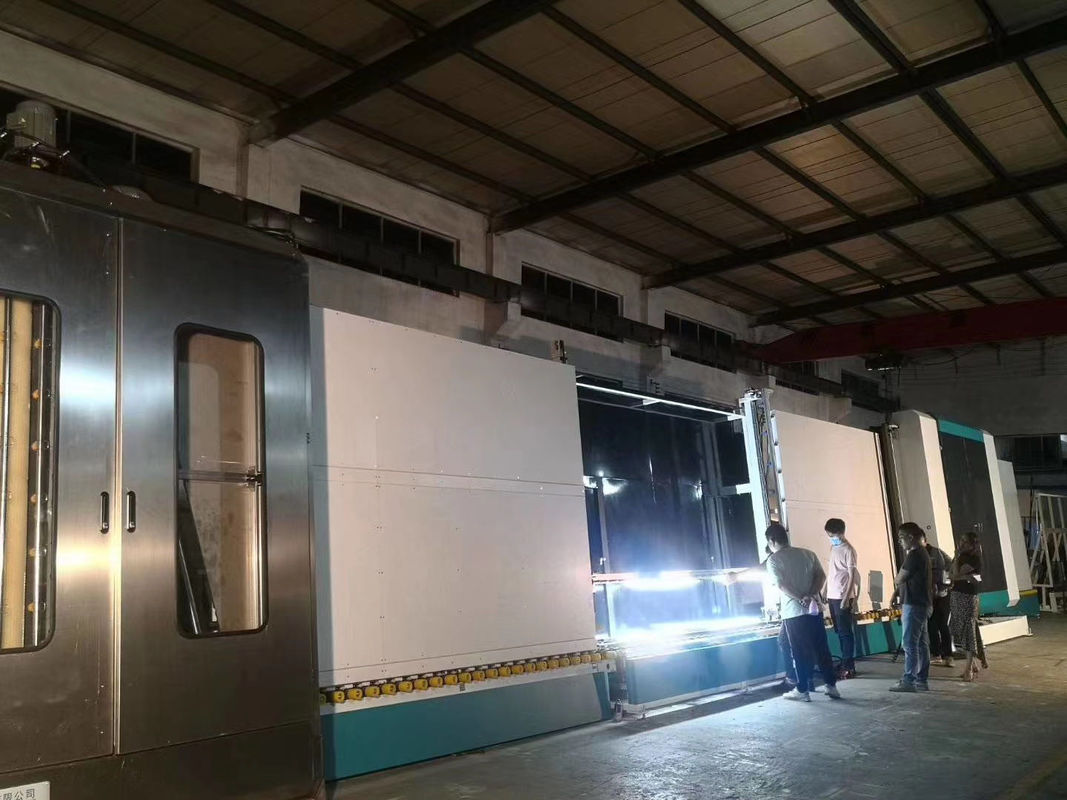

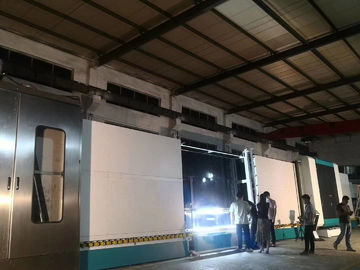

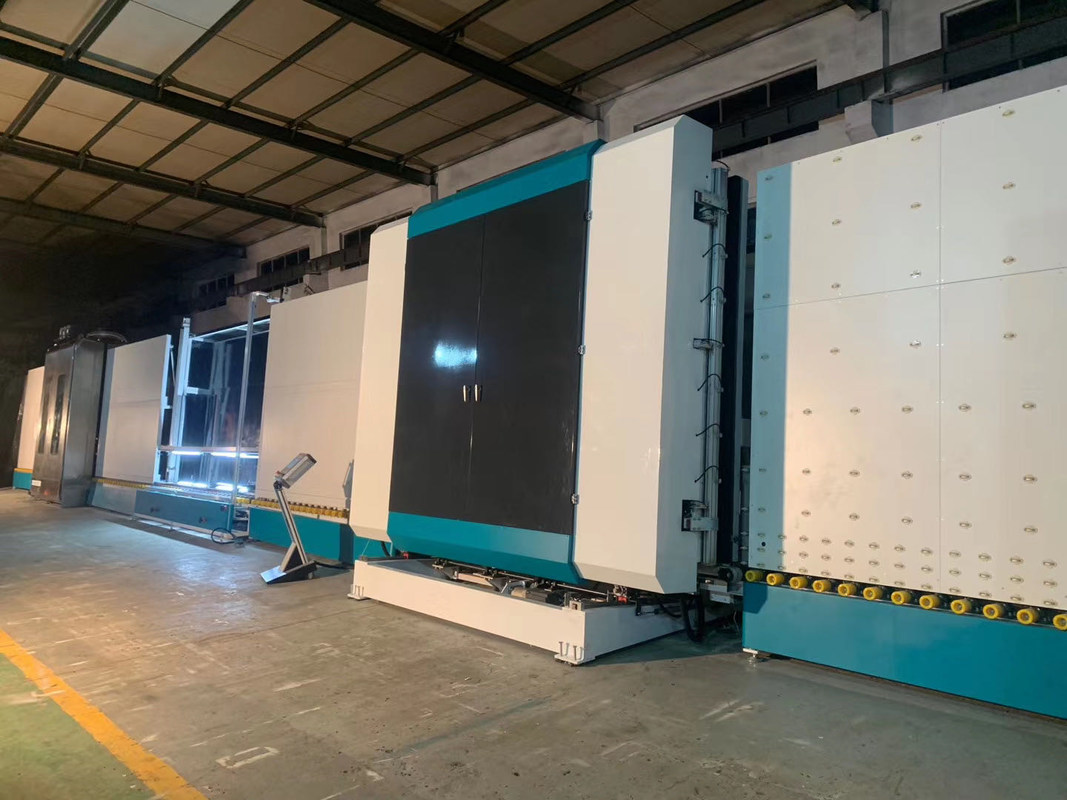

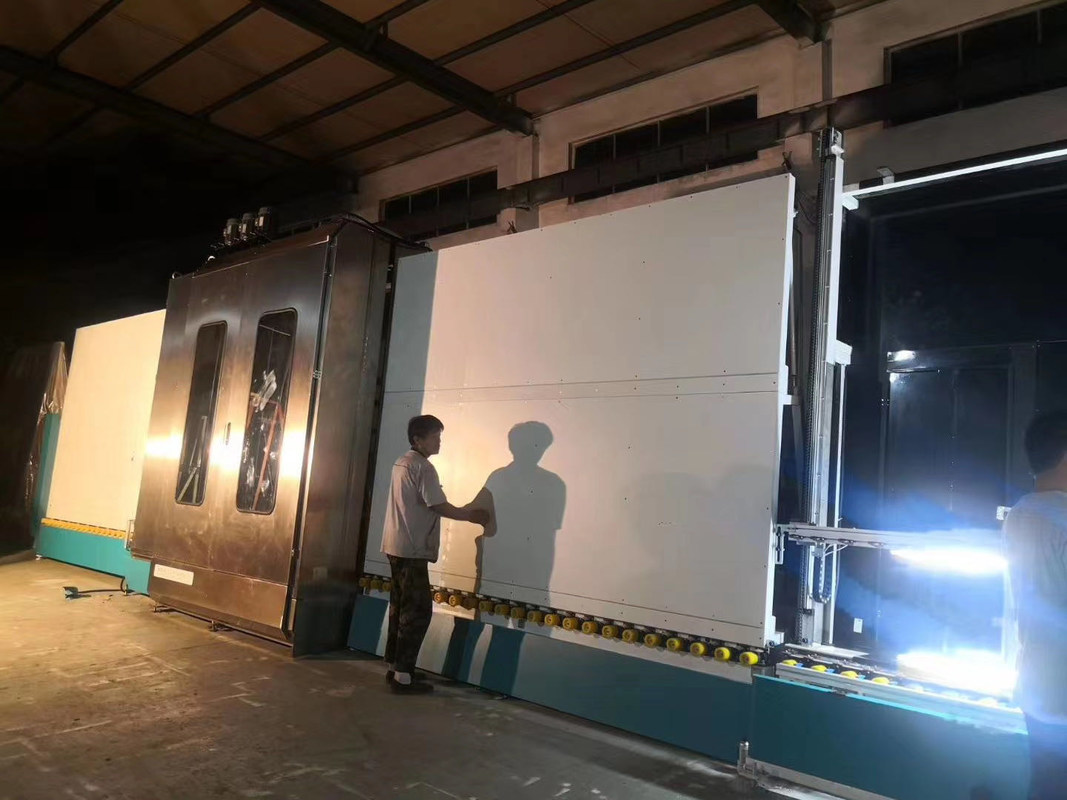

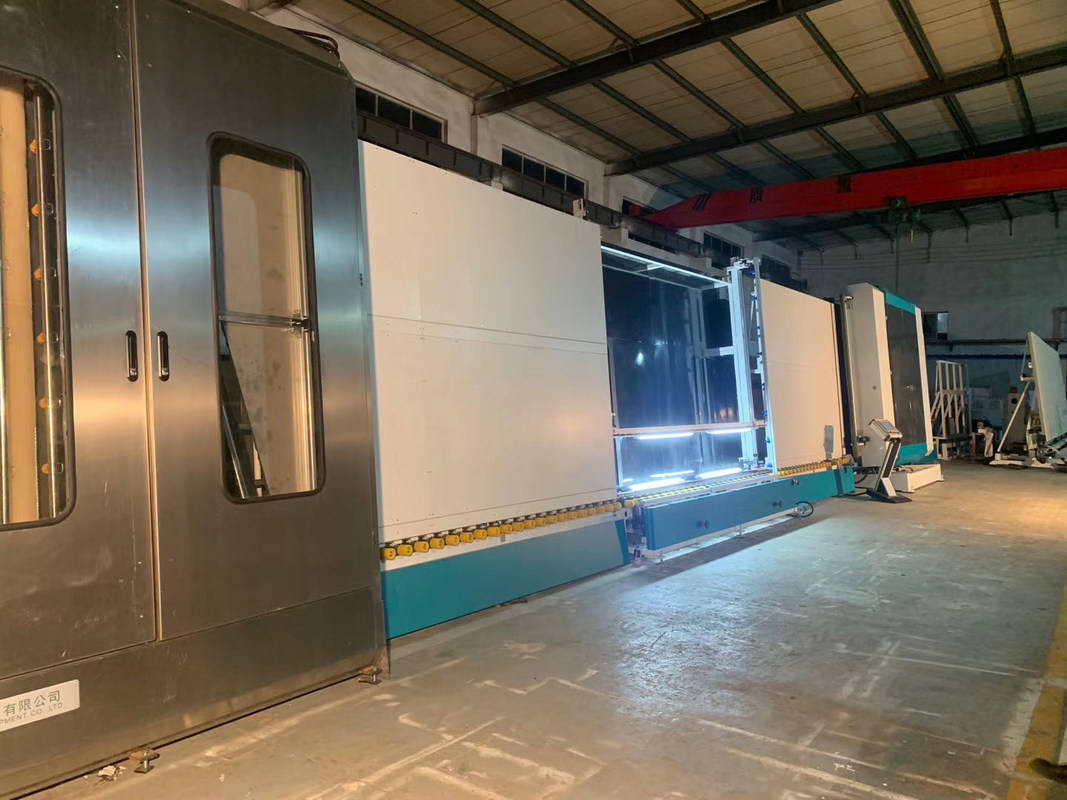

15mm Double Glass Window Line Making Machine

Vertical Double Glazing Glass Production Line With Filling Argon Gas Optional Function

glass window line making machine for double glass With Filling Argon Gas Optional Function

Details introduce of the LJBZ2535G

The argon gas filling insulating glass processing line has 7 sections totally:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

• 02 washing machine

Main feature:

• Use 6 soft brushes with 0.1mm soft hair to clean low-e glass

•Prewash (optional)

• The new air knife uses aluminum profile (duckbill air knife), and the size of the air outlet is adjusted by aluminum profile duckbill. This can reduce the number of adjustment screws, ensure that each screw is not loose, and avoid air knife resonance.

•The width of the air knife can be automatically adjusted according to the thickness

•Operation box with washing speed display, which can accurately display washing speed (8-10m)

• Automatic temperature control of water tank, water replenishment system

•European silencer system

• Stainless steel material

• 03 discharge section

• Storage glass

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section

The special advantage of the glass pressing board:

Main feature:

• Extra long (2500mm * 3500mm) insulating glass can be compressed twice

• Adopt a conveyor belt to transfer the glass and use the servo motor to push the glass

• Presser plate can be opened for easy maintenance

• Adjustable structure press machine to guarantee long lasting service life

• High sealing effect and automatic filling of argon gas with high argon content

• Zones are set up to fill different sized glasses with follow-up sealing methods to reduce argon loss

• Can set the value of gas and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

• 07 discharge section

• Storage glass

• Can be connected to sealing machine
