Product Details:
|
| Name: | Glass Washing Machine | Feature: | High Speed |
|---|---|---|---|
| Min Glass Size: | 350*450mm | Dgu Thickness: | 80mm |
| Flat Glass Thickness: | 3-15mm | Glass Washing Speed: | 6-15m/min |
| Glass Conveyor Speed: | 45m/min | Triple Glass: | Available |
| Step Glass: | Available | Washing Brushes: | 3 Pairs |
| High Light: | insulating glass line,glass processing machines |
||
About the IG line only need focus on the two part -WASHING DRYING PART AND PRESSING PART .All other part just conveyors and assembly, no much technology, so please focus on that two .

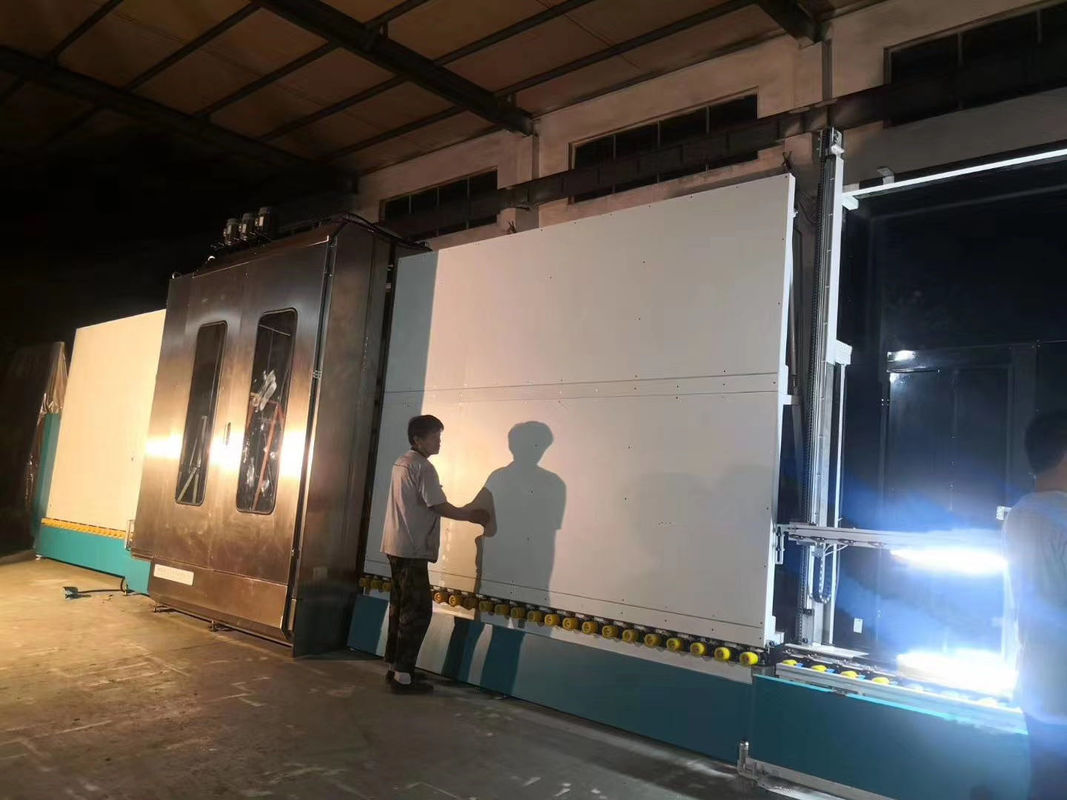

A, washing and drying part
4, The front and back squeeze wheel are all actively moved and conveyor. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.(Same like LISEC)

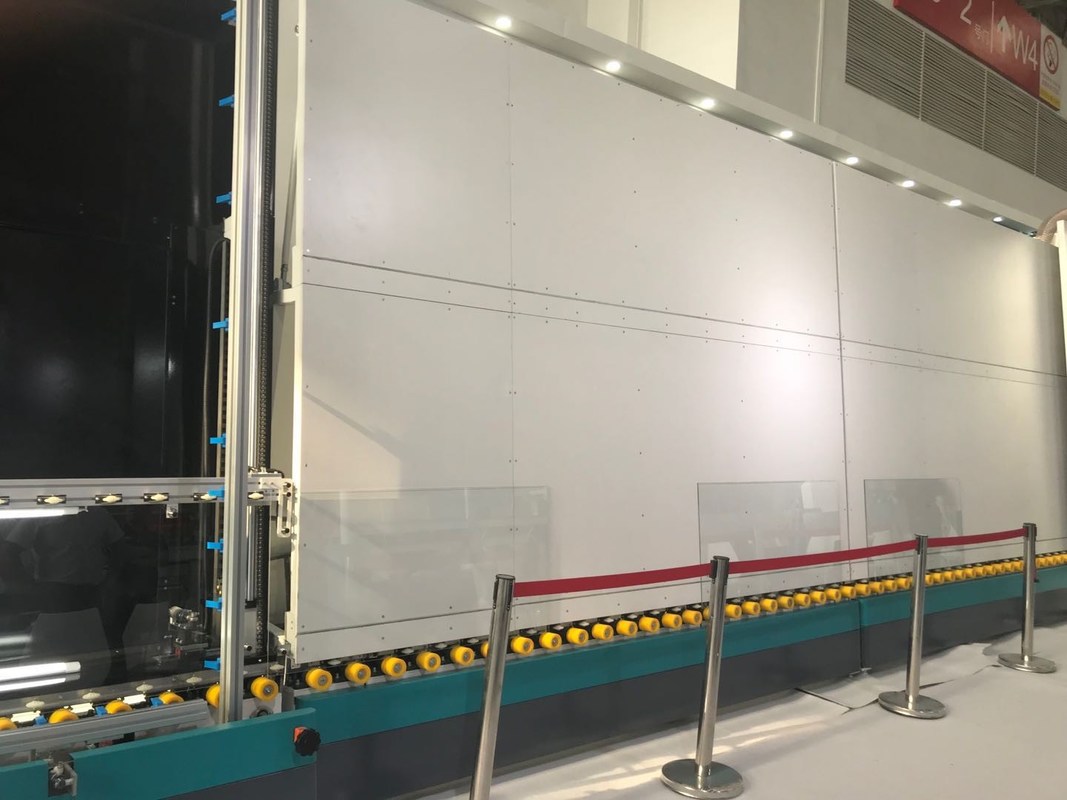

B, Pressing part

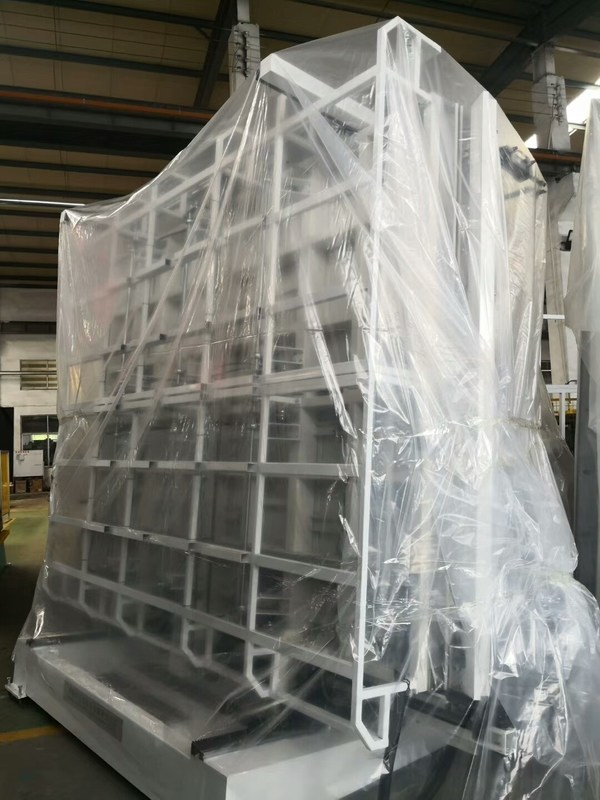

1, There have stress after welding in the Pressing frame ,
so the out-of -shape problems is inescapable after using some time
(machine can not press DGU properly evenly and tightly )
that is not good for IGU quality, any glass project can not accept these products
For this uneven inescapable issue, here are our solution :

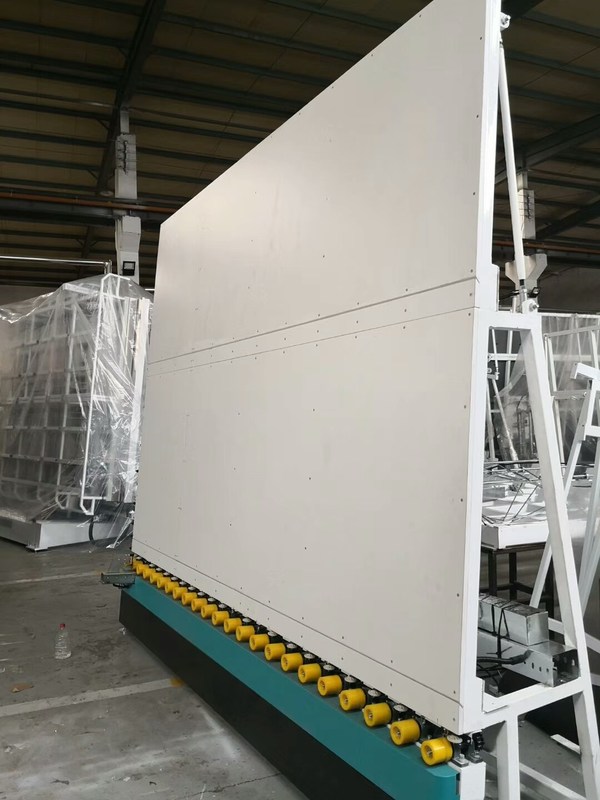

The important is We design the 74 points on the backbord, if there have any out-of shape problems we can adjust easily at any time. ( same like Bystronic structure )
C, Gas filling
1, Input the argon gas concentration into touch screen according to customer required
2, Display Function : touch screen will display whole argon gas filling processing , you will know very clear how much already argon gas filed inside
We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When it reach the data customer set ,It will alarm and stop automatically
3, GAS filling from bottom and it was designed separately for saving gas .
A: The pressing part was devided into 4 part , (per 800mm), when the small size glass(less than 800mm) pass through the pressing and gas filling section, ,only one part work.if more than 800mm but less than 1600mm,it will two parts work, no need the whole press and gas filling section work. it can save the argon gas.
B: On the vertical side of the side-baffle there sensors can recognize how much the percentage there.When the argon gas the percentage is reach the value that we set in . the gas filling resource will stop. So it can save a lot of argon gas. When argon gas fill every piece of double glass there will have three sides close,(the bottom ,two side,only the top open,and on the vertical side there have sensor, when the argon gas reach the somewhere and sensor recognize it reached the value that we set up ,it will stop automatically),it is a very good design.
5, Sparklike detection device, a professional and Authoritative device
6, 2 piece IGU Automatic argon gas filled in one time , high filling speed , it improved 50% working efficiency, Saving argon gas. (standard size no more than 1.5m)
7, normal gas filling line 27s/m2 34s/m2
| Components | Brand | Remark |
| Servo motor | Germany Simens | For stepped glass |
| Servo driver | Germany Simens | For stepped glass |
| Servo motor | Germany Simens | For transfer |
| Servo motor | Germany Simens | For press |
| PLC | Germany Simens | |
| Low voltage component | Germany Simens | |
| Frequency converter | Germany Simens | |
| Switching power supply | Taiwan MW | |
| Optoelectronic switch | Korea Autonics | |
| Pneumatic component | Taiwan Airtac | |
| Pneumatic component | Taiwan Airtac | |
| Touch screen | Taiwan Wenview | |
| Travel switch | Taiwan (TEND) | |
| Relay | Japan Omron | |
| Button and indicator light | French Schneider |
| Max.glass size | Normal glass |
2500*3500mm
|
| Glass with argon gas | 2500*3200mm | |
| Min.glass size | 280*450mm | |
| Glass thickness | 3-15mm | |
| Insulating glass thickness | 50mm | |
| Glass washing speed | 2-10m/min | |
| Glass conveyor speed: | 45m/min | |
| Washing brushes | 3 pairs | |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm | |
| Air supply | Flow: 0.8m/min | |
| Air pressure | ≥0.8MPa | |
| Total power | 3P380V 50HZ 34KW | |
| Dimension | 23500*3500*3700mm | |
Main Products
Vertical Insulated Glass Produce Line for double glass production line
Auto Sealing Robot for double glass production line
Sealant Spreading Machine for double glass production line
Low-E Glass Washing &Drying Machine for double glass production line
Smart Edge Deleting Machine for double glass production line
Automatic Spacer Bending Machine for double glass production line
Automatic Desiccant Filling Machine for double glass production line
Butyl Extruder Machine for double glass production line
Glass Edge grinding Machine for double glass production line
Spacer Cutting Machine for double glass production line
Sealing gun Freezer for double glass production
Rotated Sealant Spreading Table double glass sealing
Argon Gas Filling Machine double glass

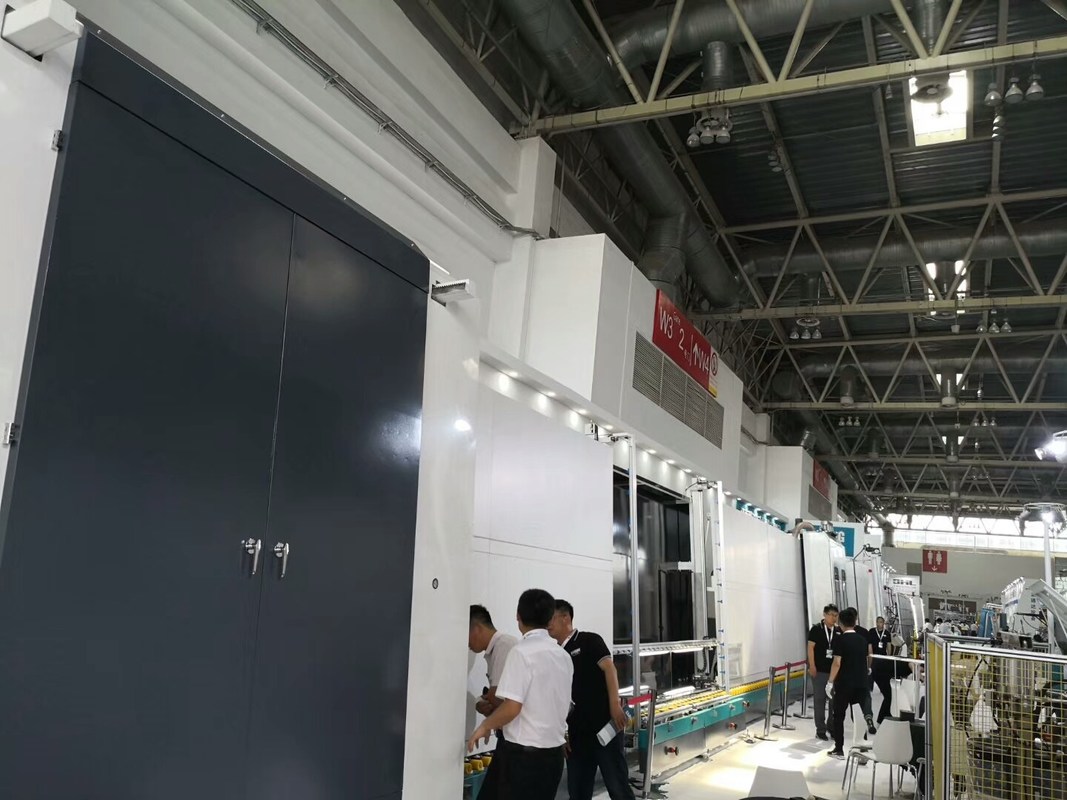

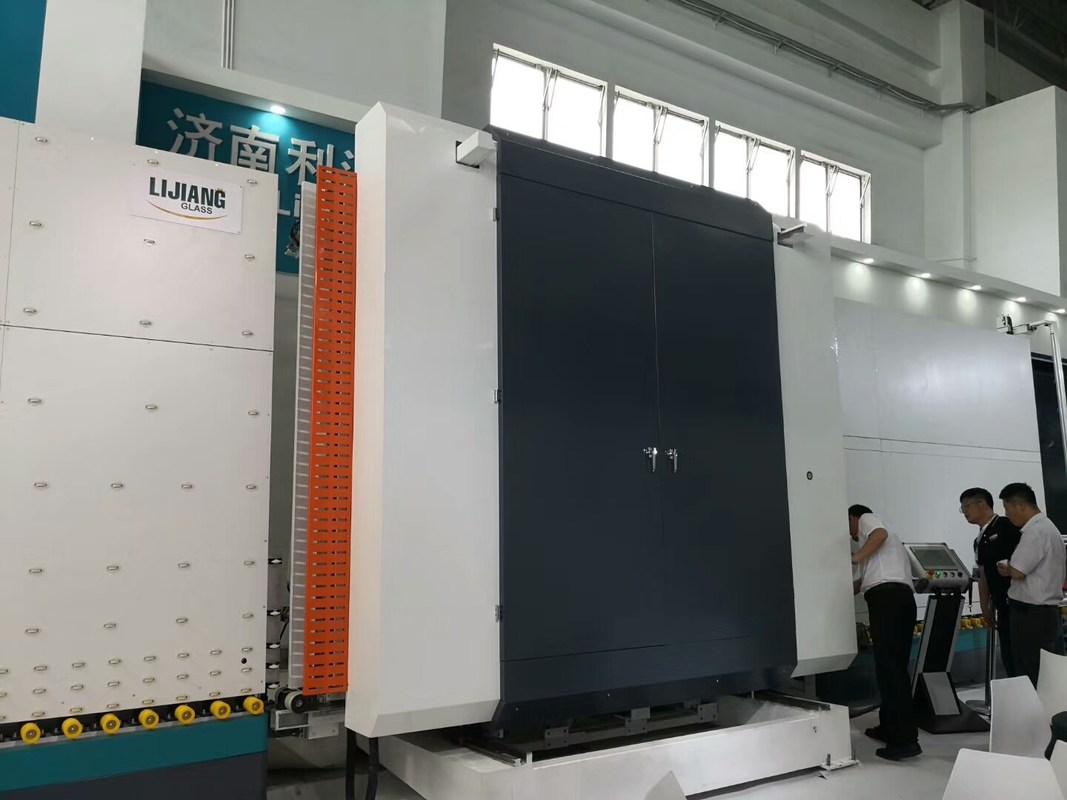

Exhibition show
