HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE
HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

Large Image :  HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX OR PLASTIC FILM
Delivery Time: 3days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 20 sets per month

HOT MELT BUTYL EXTRUDER BUTYL MACHINE DOUBLE GLAZING GLASS MACHINE

Description
Name: Butyl Extruder Machine Aluminum Spacer Width: 6A-27A
Coating Pressure: 10-18mpa Coating Temperature: 110-140 °
Total Power: 5.7kw Machine Size: 2800*700*900mm
Coating Speed: 0-47m/min Butyl Plug Weight: 7kg
Electricity Compoents: Germany Simens
High Light:

hot melt butyl extruder

,

butyl silicone sealant





Butyl extruder machine

working characteristics



Main feature

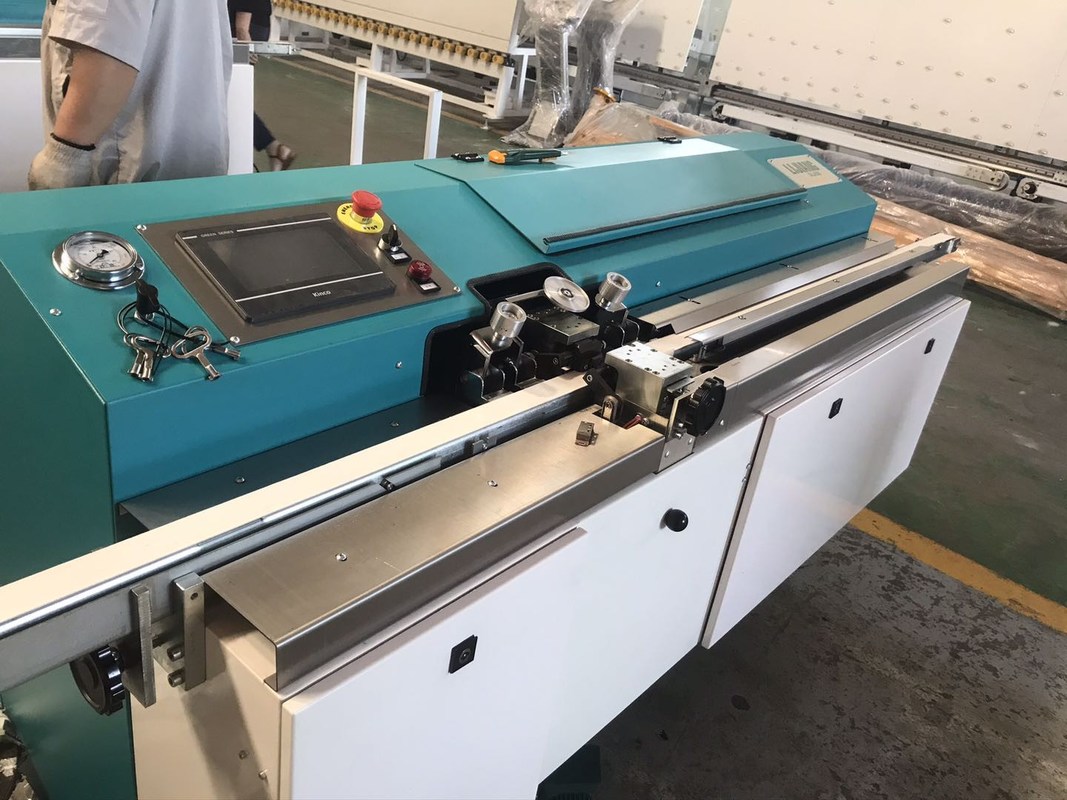

Touch-screen operation which makes the machine simple and practical



Auto-centering and auto clamping

The wheel material is Teflon brand ,non-stick coating, non-adhesive belt



Nuzzle height can be adjust, solve the gap between spacer and butyl

The coating speed is up to 47m/min,save butyl is up to 30%

Rectangle & arc frame , decorative aluminum fram can be coat

Auto-measure the width of spacer, auto-adjust the distance of nozzle

(double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm)

The crossbeam height is easy to adjust,we can control the height of butyl

Glue output and height is same level.

Alarm device when use out of butyl

Pre-heating function,set up a regular time before .

Glue cylinder stands upside,easy to change glue

Pressure valve German HAWE brand with high pressure resistance, keep the butyl well proportioned

Pneumatic component -Taiwan Airtac

Relay Japan OMROM

Japan quick-opening valve make sure the both sides of nozzle open and close at the same time

Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly

The front roller and the back roller are used for rectangular frame, the Arc roller is used for circular frame.

Electrical components are used famous brand

Pneumatic and Hydralic supercharging pump -German Maximator brand

control the pressure of outlet oil strongly.





Butyl extruder parameters



Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan





Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg
