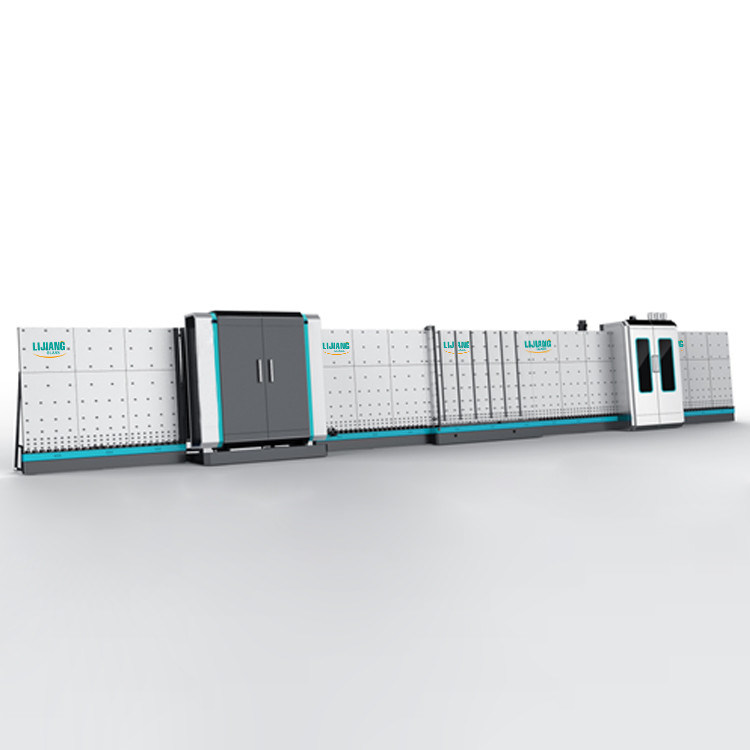

304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG

304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG
304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG

Large Image :  304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 90000-85000
Packaging Details: container
Delivery Time: 30-40
Supply Ability: 20sets

304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG

Description
Name: Vertical Insulating Glass Production Line Max. Glass Size: 2500mm*3500mm
Min. Glass Size: 280mm*400mm Glass Thickness: 3-15mm / 19mm
Insulating Glass Thickness: 50mm / 60mm Glass Washing Speed: 2-10m/min
High Light:

15mm Insulating Glass Production Line

,

IG Insulating Glass Production Line

304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 0



304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 1



Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

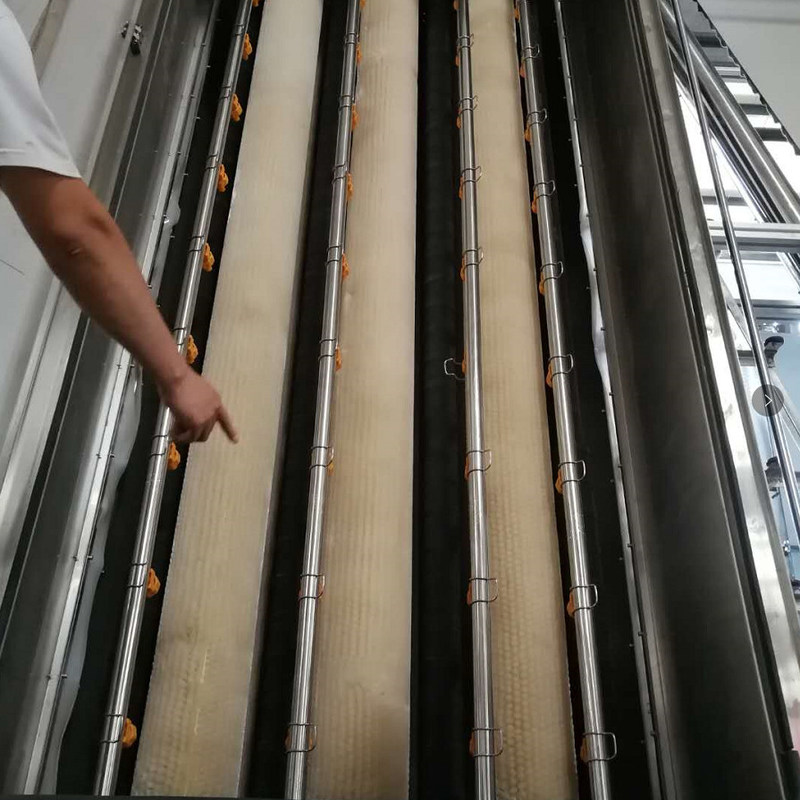

Glass washing part



Main feature:

• Using 6 pieces of soft brushes

• Wash online and offline low-e glass, automatically recognizes Low-e film

• Washing part adopts the design of upper and lower layered structure

• Adopt variable frequency fan, energy efficient, good cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Using intelligent intermittent energy-saving working methods

• Hierarchical type washing system

• Water tank automatic temperature control, water replenishing system

• European silencer system

• 304 stainless steel materials



304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 2



304 Stainless Steel 15mm Insulating Glass Production Line For Triple IG 3



Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill

argon gas over 90%.

• Can be better prevented the pressing part to be out of shape by pressing two pieces

of IGU in once time.

• High-speed IG processing line

• Solving the problem of waiting for working on the sealing robot. Improve work efficiency

highly.

• Installing two spacer frames for two IGU by one workman.

• Automatically measuring glass size and labeling (labeling can be allowed before pressing

and after pressing) with ERP system.

• From transfer part to pressing part, each part is divided.

• Suitable for mass production in a factory, Ultra-fast speed.
