Product Details:
|
Production Name: | Automatic Desiccant Filling Machine | PLC: | Germany Siemens |
---|---|---|---|
Molecular Sieve: | 0.5 - 0.9 Mm | Machine Type: | New Machine |
Warranty: | 1 Year | Brand: | LIJIANG GLASS |
Package: | Wooden Box | ||
High Light: | glass filling machine,desiccant filler |

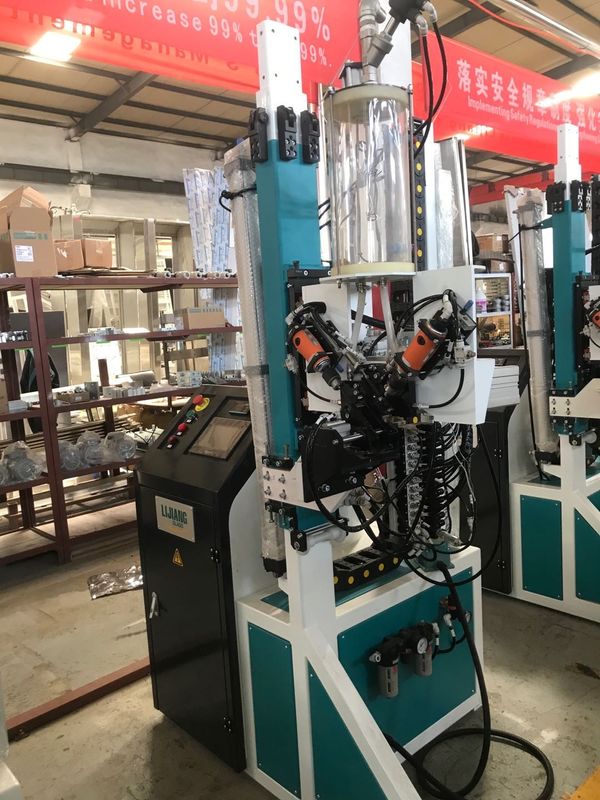

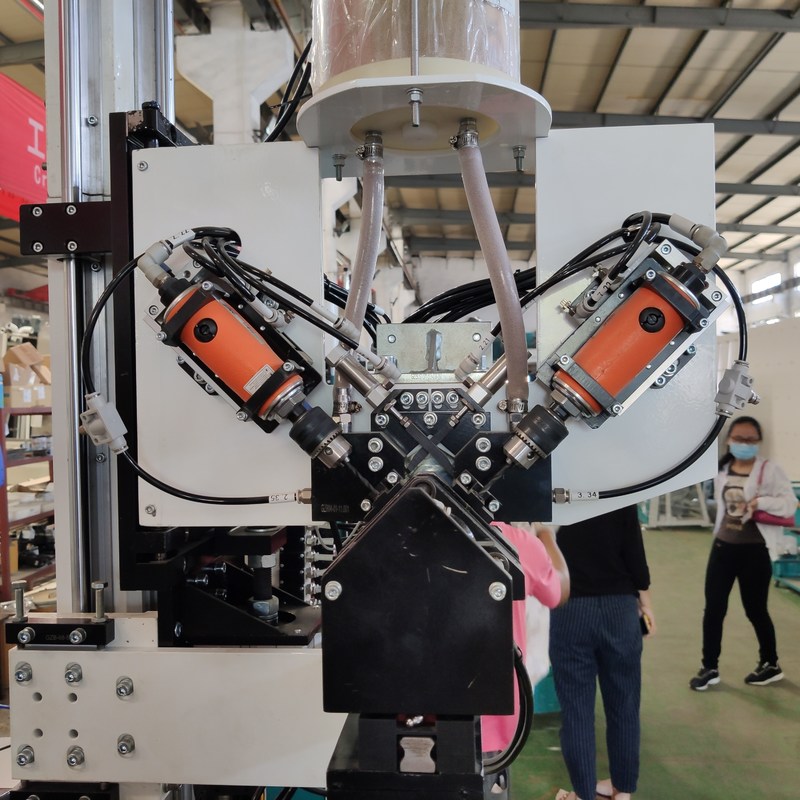

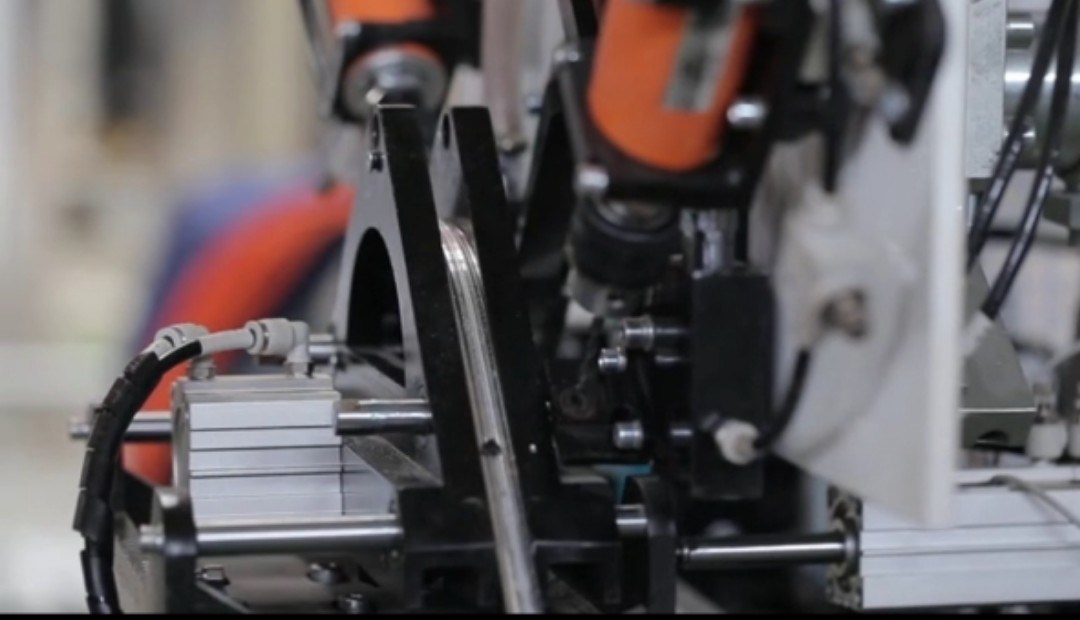

Automatic Desiccant Filling Machine With 0.5 - 0.9 Molecular Sieve Material
Moldecular sieve filling machine is used to fill into aluminum spacer frames, the molecular sieve can be from 0.5 - 0.9 and 1.0 - 1,5. It decides to the customer's needs. For the desiccant filling machine, there are many types, automatic filler with single filling head, and with double filling heads, also there is the manual molecular sieve filling tool.
Main feature :
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve
Technical data:
Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
Min. frame size | 300mm*250mm |
Aluminum specifications | 6A- 27A |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1KW |
Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
Dimension | 1100mm*1100mm*3600mm |
Company Introduce of LIJIANG GLASS
Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic insulating glass machinery, with a registered capital of 20 million RMB. Domestic friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. There are about ten agencies, such as North America, South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time, we have set up branches in New Delhi, India. At present, the export of products accounts for more than 50% of the company's total sales.
LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.
We have advanced production technology in the world, from raw material processing to assembly, machine testing and debugging, which can provide optimal CNC solutions for customers at home and abroad. Adhering to the enterprise tenet of "precision manufacturing, quality LIJIANG", we choose international famous brands such as Siemens of Germany and OMRON of Japan as our main suppliers, and our products are highly praised by customers at home and abroad.
Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
