150mm Vertical Film Deletion Machine For Making Insulating Glass

Description
Production Machine: Automatic Vertical Low-e Film Deletion Machine Deletion Width: 10mm - 150mm
Max Glass Size: 2500mm*4500mm Min Glass Size: 350mm*500mm
Deletion Speed: 0 - 15m/min Wheels Size: 10mm, 12mm, Or 15mm
High Light:

150mm Vertical Film Deletion Machine

,

15m/min Vertical Film Deletion Machine

Automatic Vertical Low-e glass film deletion machine for making Insulating glass

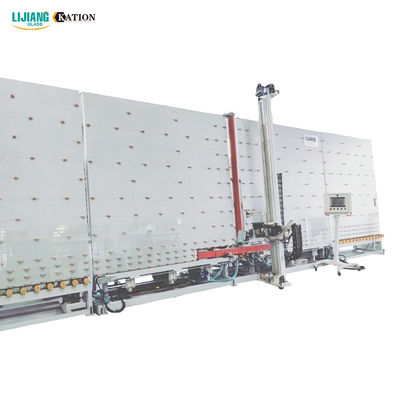

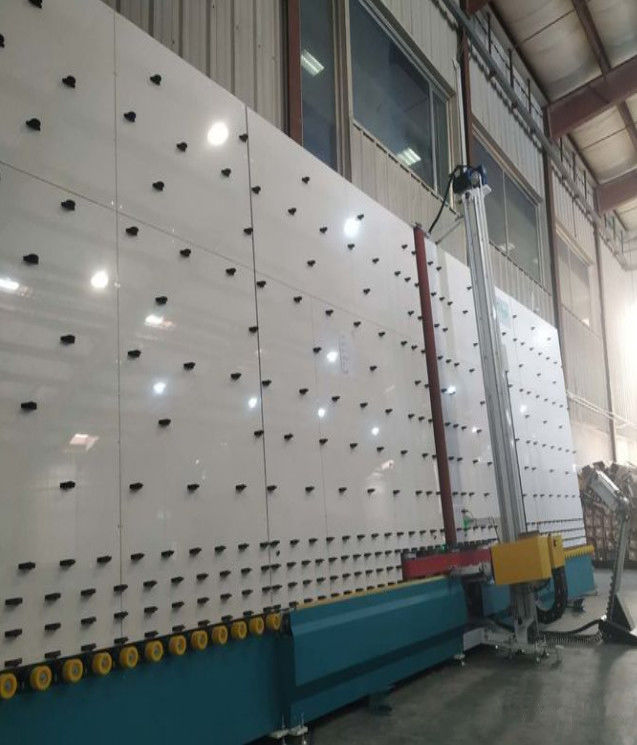

Product overview of Low-e Glass film deletion machine



Automatic Vertical low-e glass film deletion machine for making insulating glass is used to delete the film on the Low-e glass with fast speed,To prevent the film from oxidizing when the insulating glass is synthesized. Low-E Glass Edge Deletion Machine can delete rectangle glass and shape glass, it has 6 servo motors.



The film deletion machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.





Feature of Low-E Glass Edge Deletion Machine



• PLC control system, touch screen interface

• Six servos control system

• Automatically measure size

• Two-way glass access

• Edge deletion is adjustable

150mm Vertical Film Deletion Machine For Making Insulating Glass 0

• Automatically distinguish low-e surface

• The head can be rotated 360°

150mm Vertical Film Deletion Machine For Making Insulating Glass 1

• Safe and full automatic device

• Intelligent control system, can recognize batch processing

• With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass.



Technical parameters



Max glass size  2500mm*4500mm
Min glass size  350mm*500mm
Wheels width  10mm, 12mm, 15mm
Deletion width  10mm - 150mm
Glass thickness  3-15mm



150mm Vertical Film Deletion Machine For Making Insulating Glass 2



Related Product

Automatic Vertical Insulating Glass Sealing Robot

150mm Vertical Film Deletion Machine For Making Insulating Glass 3

Main Features:



• Adopt 8 servo motors

• The glass corners are full without air bubbles, smooth surface

• Automatically repair glass corners with beautiful surface

• Adopt Siemens servo control system with stable performance

• Min & Max glass sizes can be optional

• Automatically measure glass size, glue depth and glue speed with linear adjustment

• Adopt timing belt to keep smooth convey with accurate position

• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

• Single-function parts are equipped with manual functions, easy adjustment

• The glass corners are full without air bubbles, smooth surface

• Full automatic and high-efficiency machine

• Smooth convey without scratch and pollution

• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)

• Seal stepped glass fully at once (Optional)

• Can seal stepped IG with four sides (Optional)

• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)



Technical parameters



Max. glass size 2500*4000mm (Optional)
Min. glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 12kw
Overall dimension 11000*2000*3500mm
