Product Details:
|
| Name: | Automatic Double Glazing Glass Sealing Robot | Applicantion: | Insulating Glass Processing |
|---|---|---|---|
| Fuction: | Sealant Extruder | Max Glass Size: | 2500*4000mm |
| Min Glass Size: | 300*300mm | Working Speed: | 5-40m/min |
| Glass Thickness: | 12-50mm | Air Pressure: | >0.6MPa |
| Power: | 380V 12kw | Usage: | Silicone Extruder |
| Dimension: | 8700*2000*3500mm | Squeeze Pressure: | 32MPa |
| High Light: | glass sealing machine,double glazing equipment |
||

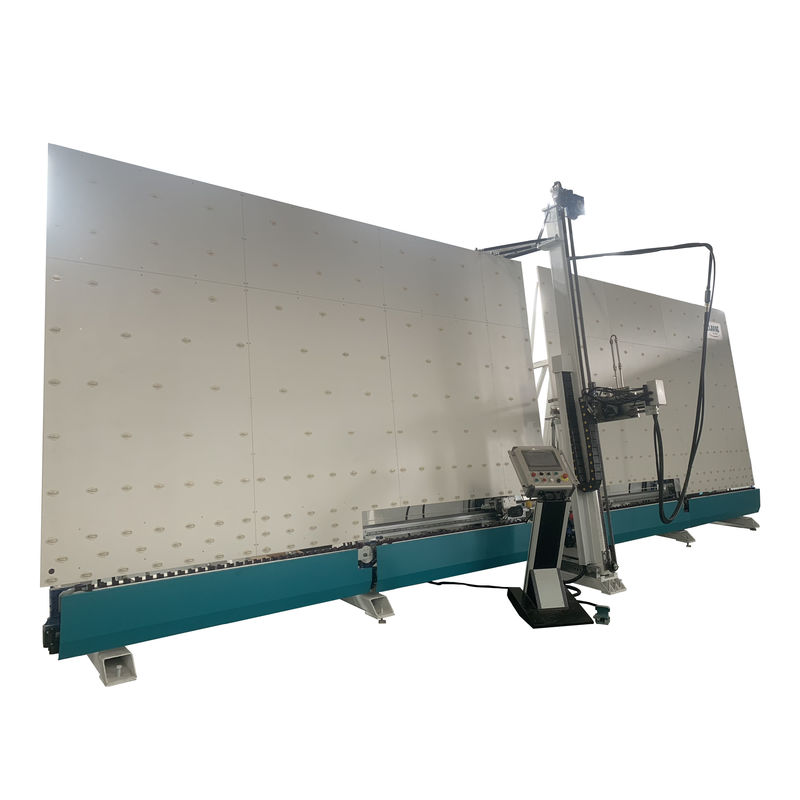

Product overview of Automatic Insulating Glass Gluing Machine
The automatic sealing machine is used for sealing the outer layer of the insulating glass. Through the servo mechanism, the mixed insulating sealant is evenly applied to the outer layer of the insulating glass to help the sealing and bonding performance of the insulating glass
Equipment advantage of Automatic Insulating Glass Sealing Machine
• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, fully automatic high efficiency sealing machine
• 4sections, can store glass
• Adopts timing belt, smooth transfer, precise position
• Scrapers and rollers automatically repair glass corners
• Automatic measurement of glass size and adhesive depth (30mm)
• All automatic functions are manual operation
• Can be coated with double glass • Optional edge glass, step glass, triple glass (optional)
• One set of booster pumps to control two groups of sealants (optional)
• Can use silicone, polysulfide, silicone structural sealant
• Bonding head is on the front of the machine, easy to coat step glass
• Connectable with insulated glass processing line, with code scanning function (optional)
Main feature of Double Glazing Glass Sealing Robot
1. Equipped with single A component and single B component. Adhesive A and B automatic mixing, automatic ratio.
3. Automatically measure glass size, glue depth and glue speed with linear adjustment
4.Adopt 8 sets Japan ANCHUAN servo motors
5.Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.

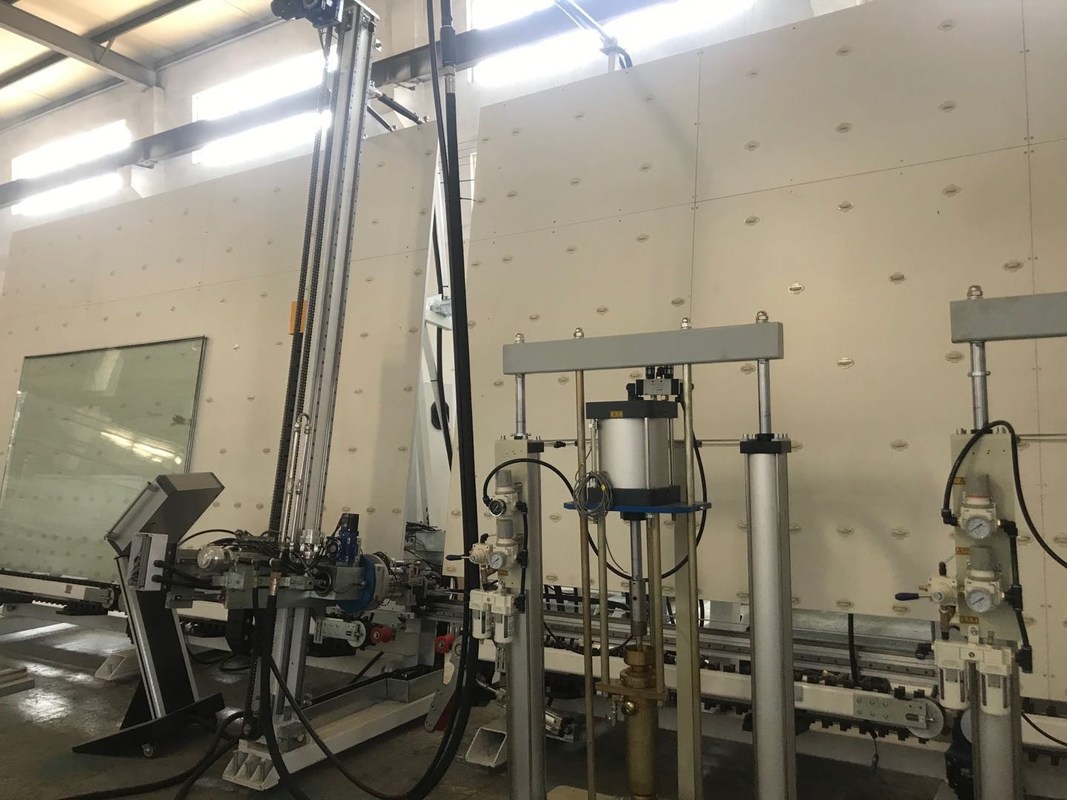

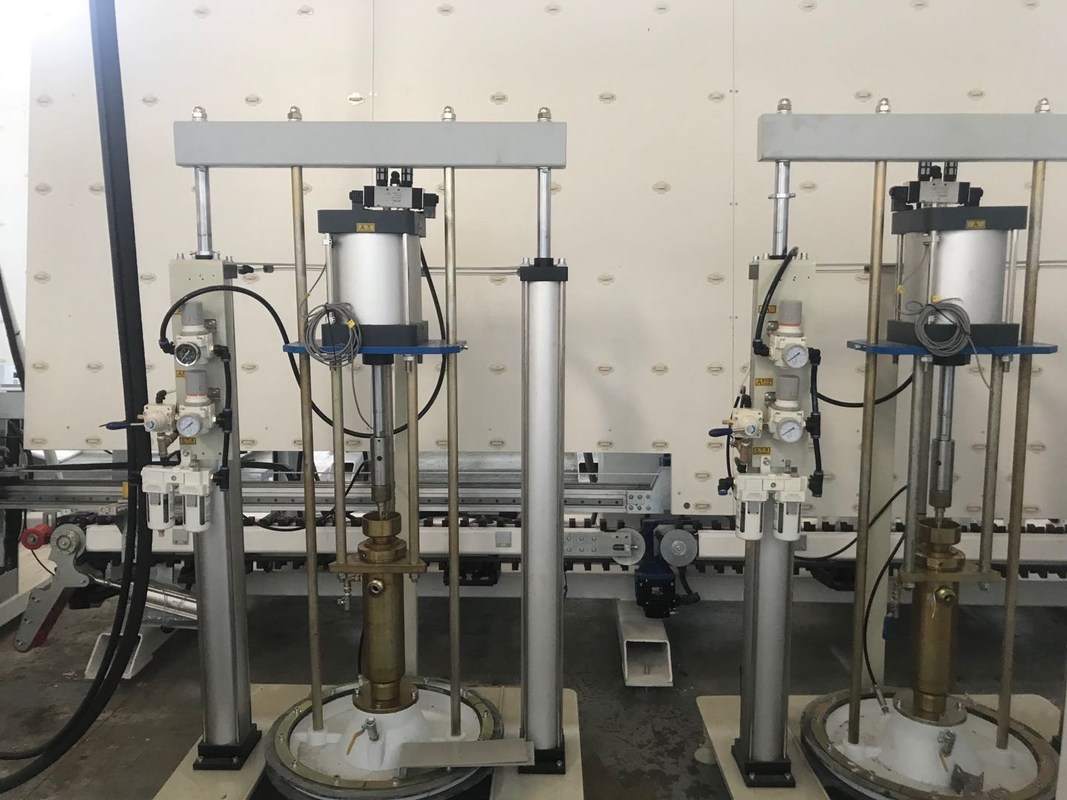

6. You can choose adhesive system
One set of adhesive system with single A component and single B component.
2 sets of adhesive system Equipped with 2 sets of A components and 2 sets of B components, it can be used for 2 different sealants such as silicone rubber, polysulfide rubber, silicone structural adhesive.
7.Timing belt
The time belt device ensure that glass can be smooth transmission and positioned accurately.
8. Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
Tech Parameters of Sealant dispensing equipment
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |

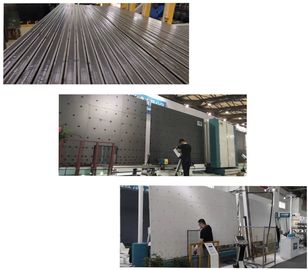

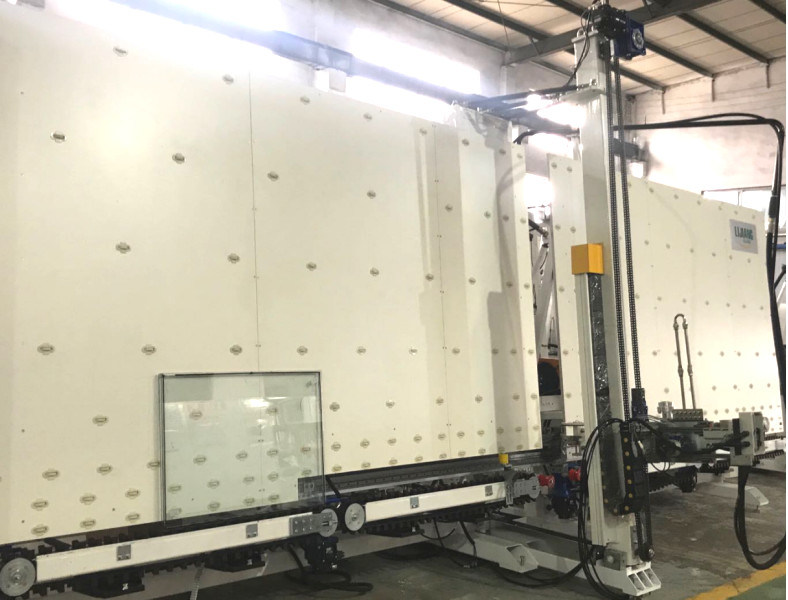

Detail of Insulaing Glass Sealing equipment
Related products
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
