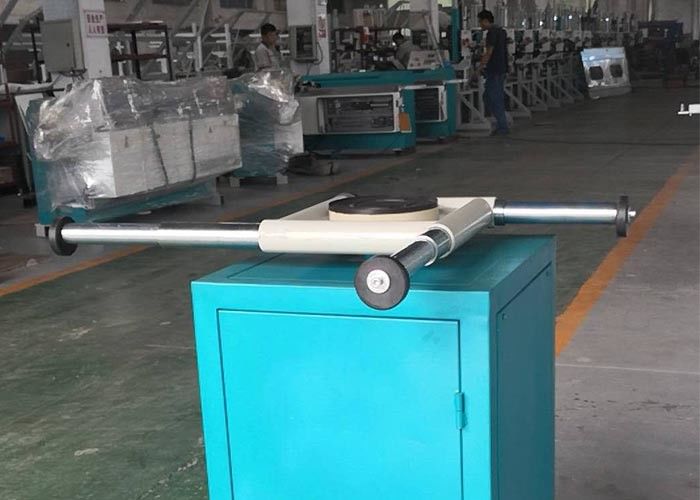

1000Mm Glass Turning Table For Rotating Glass When Coating Silicone Sealants
Rotating Table Machine
Main feature:
• Easy operation, simple and flexible

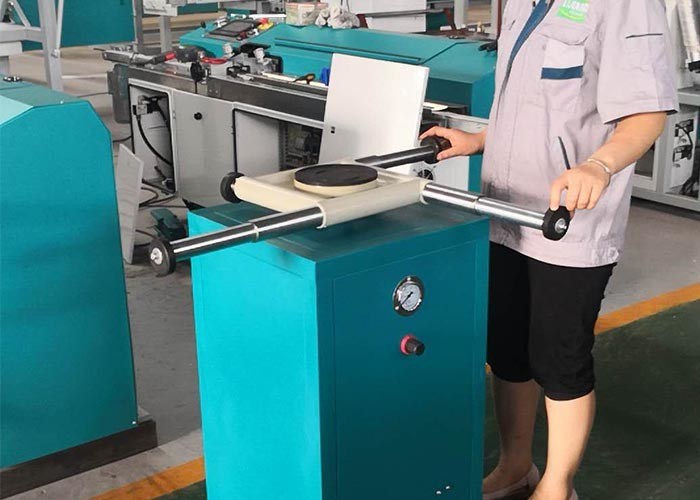

• Used to fix and rotate the glass when manually coating the outside of the IG glass

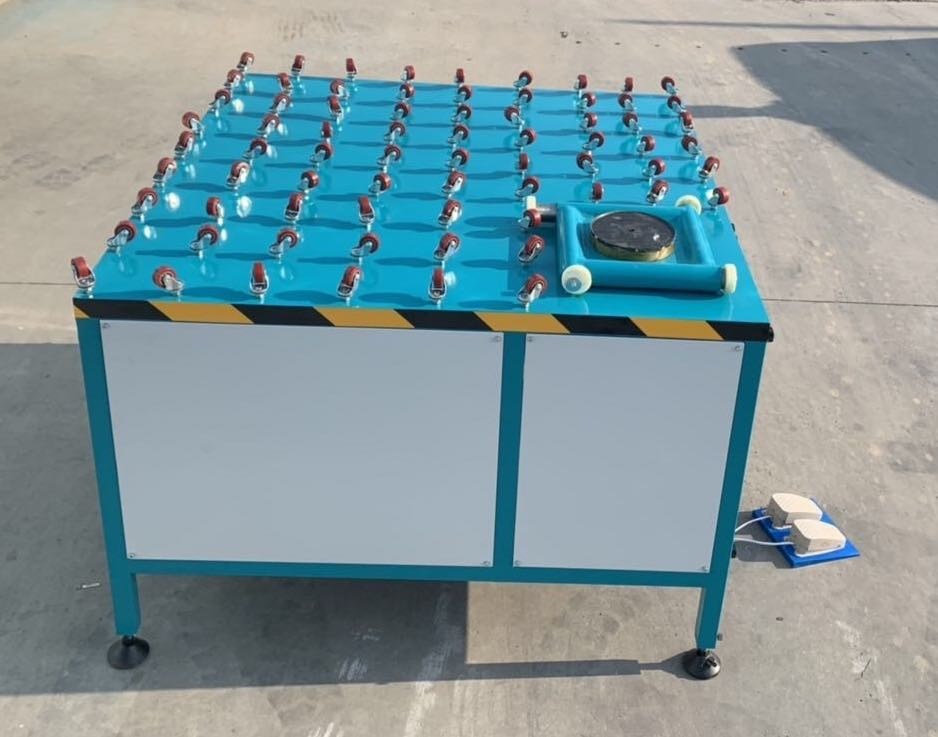

• Central sucker is suitable for small pieces of glass, but the additional support frame is suitable for larger pieces of glass
Usage environment Parameter Unit Remarks
Working environment temperature 15-40℃
Carry/Deposit Temperature -20-55℃
Carry/Deposit Humidity 30-90%
Basic features
Input voltage AC400V±10%, 60HZ
Input power 120 W
Rotation speed 6.5 r / min
Air consumption 0.5-0.8 Mpa
Maximum glass size 2000 * 1500 mm
Minimum glass size 200 * 200 mm
Dimension 600 * 450 * 950 mm
| Power supply |
380V 50Hz |
| Total power |
0.37kw |
| Operating dimension |
1500*1500mm / |
| Dimension |
600*550*985mm
|
Attention :
1. When tune up to prop up the tight in a bolt for and glass contact even empress, must will prop up a top, prop up otherwise the pole turns to move, prop up, the round escapes from the glass, will produce the glass move the phenomenon.
2. Big sucker in usage, doing not want will enter the barometric dint adjusts of over high, otherwise the vacuum a glass for too bigger, being usage thickness is thinner, easy is ground the glass.
Maintenance :
1. After spinning for a period of time, the new machine opens the plate, checks if each tight firmware is loose, and applies equal stress to the new tight.
2. Complete each time to clean the machine dust and gum clearance and flip it over to cover the dish to prevent dust from falling into the suction cup.
3. Stand up the column, make the column into a column, and apply lubricating grease periodically to resist rust.
4. Periodic inspection electricity, whether the wire is loose, connect a reliable part of the ground.
More introduce:
1, usage
A rotating sealant spreading table is the final preface to creating insulating glass or act wall glass. Rotary table for draw double group gum. It can be rotated 90° Integral times, and can also be rotated surface or vice versa. Revolve and vacuum suckers have automatic controls, allowing you to combine glass size free choice suckers with stretch arm control. Special creation stretch arms can guarantee a flat surface over a flat surface. This rotating sealant diffusion table rotates stably. It easily decomposes and enhances stability. An ideal device for making insulating glass.
2, main technical parameters
3, main construction
This machine includes flat bottom adjust, raise up, rotate to hold device down, spread to move device, spirit carry control system, appliance control system and plank It will be.
3.1 Rotating device prop
The equipment's rotating stanchions include stanchion stanchions, stanchion stanchions, stanchion stanchions, large suction cups, and small suction cups.
3.2 Unfold to move the device
The device consisted of slowdown electrical engineering, a speed reducer, and a spread that travels round the chain.
3.3 Spirit carries the control system
The system includes a Spirit source processor, a solenoid valve, a unidirectional valve and a vacuum generating machine, the system controls the matching of size suckers.
