Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 20GP container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine

Description
Certification: CE Voltage: 380V 50Hz 3P
Product Name: Automatic Spacer Bending Machine Warranty: 1 Year
Max Bending Size: 2000mm*2000mm Spacer Width: 6mm - 27mm
Usage: Make The Spacer Frame For Insulated Glass
High Light:

industrial bending machine

,

spacer bar bending machine

Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine

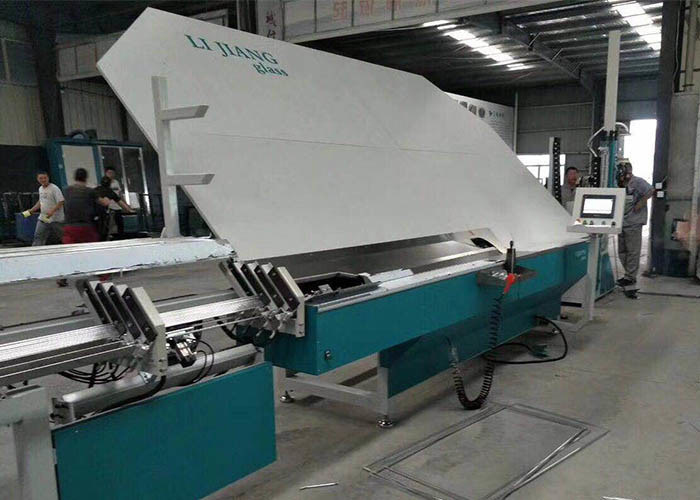

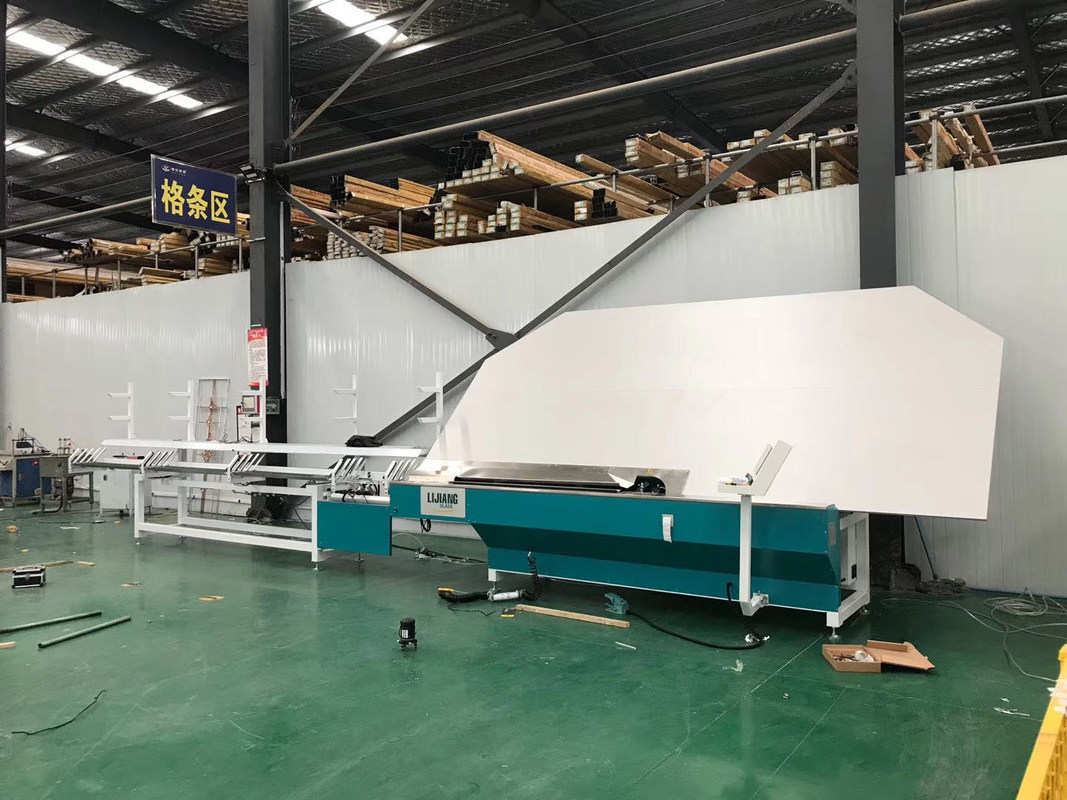

Frame bending machine is used to make the different shape and different sizes of frames for pressing inside the double glazing glass by automatically with PLC control. Spacer bar bending machine can bend normal aluminum spacers , stainless steel bars  and warm edge spacer bars  by different bending tools. The aluminum spacer width can be from 6mm-27mm. Bar bending machine can bend for 8 different shapes, such as circle.


Main  features of  Frame bending machine



1. It can set 4 specifications and 32 sizes (8 for each specification) of the original glass sheet size data. The bending machine automatically calculates the aluminum frame data according to each size for sorting, continuous processing, greatly improving efficiency and speed.

2. In addition to start stop operation, all operations are completed on the touch screen, and the mobile operation platform is available. Chinese / English or other languages operation interface, easy to operate, natural, easy to understand.
3. CNC bending angle control system is adopted, with an adjustable accuracy of 0.1 °.

4. It has the function of high-speed automatic continuous cutting of aluminum strip.
5. There is no tailing design, except for cutting loss, zero head processing can be realized.
6. There are four automatic storage tanks, which can store 4-6m aluminum strip materials of four specifications.
7. The aluminum spacer bar is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).
8. The bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.


Optional functions of aluminum bending machine



1. Printing label with 3 sizes one the paper sticker

Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine 0


2. Printing logo and data on spacers with ink.
Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine 1



3. Bending different shapes

Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine 2

4. With ERP function




Technical data of bending glass machine


Max. bending size2000mm*2000mm
Min. bending size250mm*200mm
Aluminum spacer width5.5-27mm
Dimensional error±0.5mm
Angle error±1º
Processing speed17s
Air supply≥0.65MPa
Total powerAC220/380V 50Hz 2.5KW
Dimension10500mm*2200mm*2600mm


Electrical parameters:

NAMEORIGINBRAND
PLCGermanySIEMENS
Servo driverGermanySIEMENS
Servo motorGermanySIEMENS
Low voltage componentGermanySIEMENS
TripletTaiwanAIRTAC
CylinderTaiwanAIRTAC
RelayJapanOMRON
SensorKOREAAUTONICS
Touch screenTaiwanWEINVIEW
GuideTaiwanTBI
Solenoid valveTaiwanAIRTAC
Switch powerTaiwanTEND







Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine 3

 Industrial Bending Machine Frame Bending Machine Spacer Bar Bending Machine 4
