Product Details:
|
| Name: | Glass Washing Machine Technical Parameters CP-2500A | Maximum Glass Width: | 2500mm (effective Maximum: 2650mm) |
|---|---|---|---|
| Minimum Glass Specification: | 400mm×400mm (limited To Single Row On Left And Right Sides) | Glass Thickness: | 3mm-25mm (digital Display) |
| Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min | Main Drive, Brush Speed Regulation Method: | Frequency Control |
| High Light: | 2650mm Vertical Glass Washing Machine,frequency Vertical Glass Washing Machine |
||
Glass washing machine technical parameters CP-2500A, high efficiency, energy saving 70%;
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary
plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment
and outgoing segment.
Aluminum alloy assembled structure, no scrap concept, permanent use,
high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical
paint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；

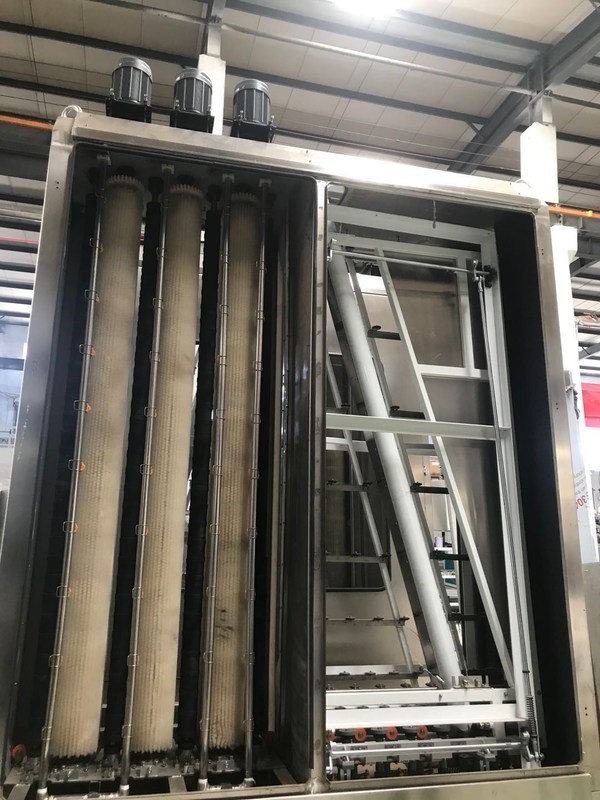

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated
glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying
effect, with heating system(with temperature control device, optional opening and closing)；
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
