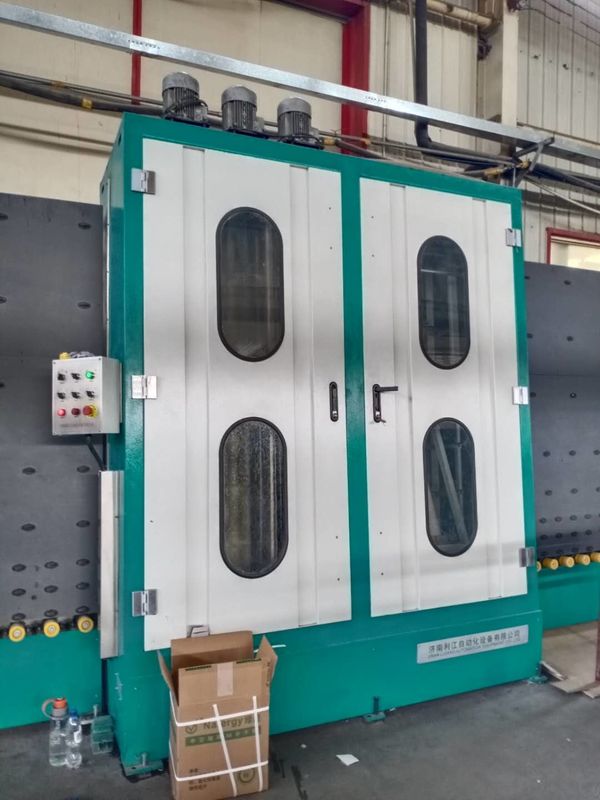

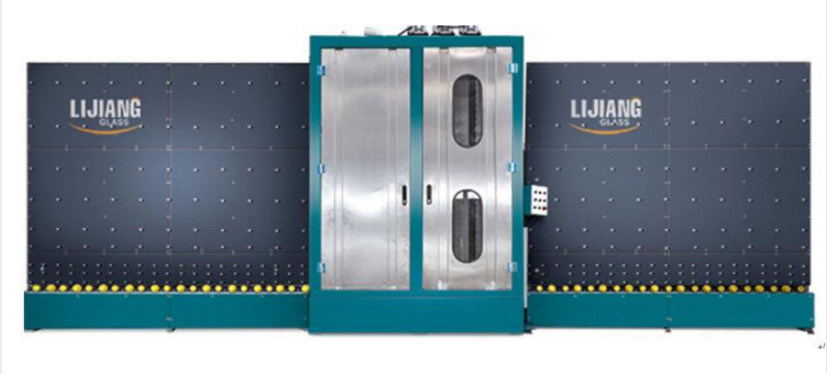

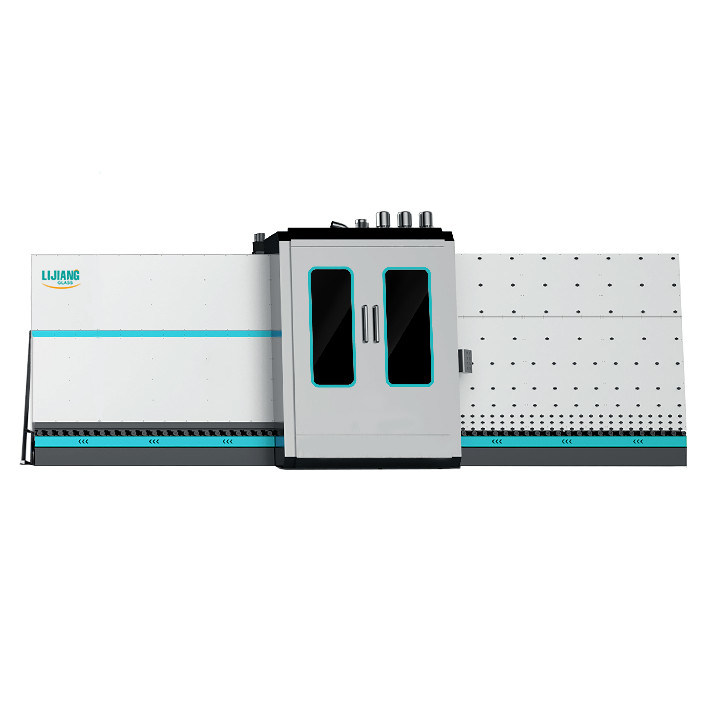

glass washing machine technical parameters CP-2500AWashing machine water tank outside, convenient water tank cleaning

USES:

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces

of ordinary plate glass and high quality low-e glass,it is composed of incoming segment,

cleaning air-drying segment and outgoing segment.

2, Structural characteristics:

• Aluminum alloy assembled structure, no scrap concept, permanent use,

high efficiency, energy saving 70% efficiency；

2. The rest of the sheet metal parts are sprayed with advanced mechanical

paint or powder；

3. The rubber roller is made of vulcanized rubber with stainless steel shaft；

4. The washing part in contact with water is made of stainless steel；

5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；

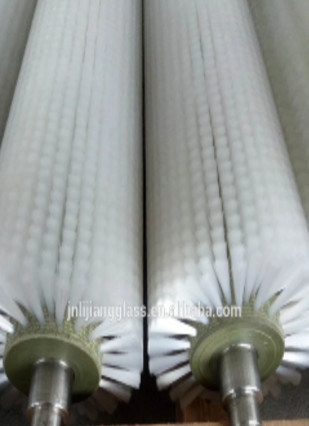

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated

glass and sunshine coated glass can be washed without damaging the coated surface)；

7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air

drying effect, with heating system(with temperature control device, optional opening and closing)；

8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying

effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the

side for easy inspection and cleaning；

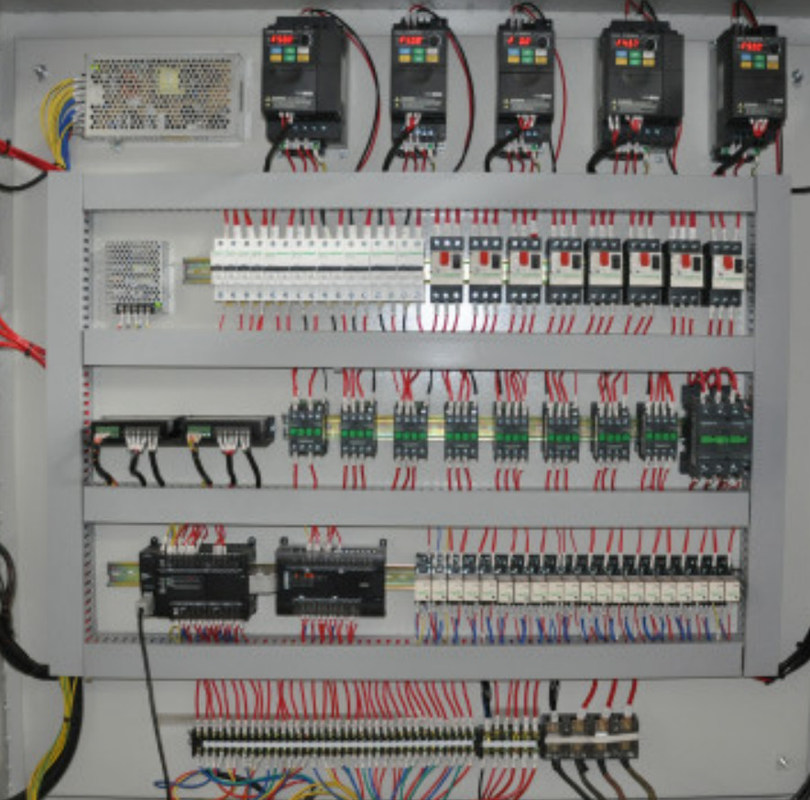

9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in

the washing section is driven by independent belts of the upper and lower motors respectively, the

frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request

special glass；
