Dirt Dust Grease Accumulation 2500mm Washing Glass Machine

Dirt Dust Grease Accumulation 2500mm Washing Glass Machine
Dirt Dust Grease Accumulation 2500mm Washing Glass Machine Dirt Dust Grease Accumulation 2500mm Washing Glass Machine Dirt Dust Grease Accumulation 2500mm Washing Glass Machine Dirt Dust Grease Accumulation 2500mm Washing Glass Machine Dirt Dust Grease Accumulation 2500mm Washing Glass Machine Dirt Dust Grease Accumulation 2500mm Washing Glass Machine

Large Image :  Dirt Dust Grease Accumulation 2500mm Washing Glass Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: CP-2500A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 35000-30000
Packaging Details: Container
Delivery Time: 30-40
Supply Ability: 35sets

Dirt Dust Grease Accumulation 2500mm Washing Glass Machine

Description
Name: Glass Washing Machine Technical Parameters CP-2500A (12 M/min) Maximum Glass Width: 2500mm (effective Maximum: 2650mm)
Minimum Glass Specification: 400mm×400mm (limited To Single Row On Left And Right Sides) Glass Thickness: 3mm-25mm (digital Display)
Speed Range: Glass Thickness Within 3-25mm Vmax=1-12m/min Main Drive, Brush Speed Regulation Method: Frequency Control
High Light:

2500mm Washing Glass Machine

,

Accumulation Washing Glass Machine

,

2500mm flat glass washing machine

glass washing machine technical parameters CP-2500A remove dirt, dust, remove all kinds of grease, remove accumulation



Dirt Dust Grease Accumulation 2500mm Washing Glass Machine 0

1, USES:

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces

of ordinary plate glass and high quality low-e glass,it is composed of incoming segment,

cleaning air-drying segment and outgoing segment.





2, Structural characteristics:

  • Aluminum alloy assembled structure, no scrap concept, permanent use,

high efficiency, energy saving 70% efficiency;

2. The rest of the sheet metal parts are sprayed with advanced mechanical

paint or powder;

3. The rubber roller is made of vulcanized rubber with stainless steel shaft;

4. The washing part in contact with water is made of stainless steel;

5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean

and maintain;

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass,

ordinary coated glass and sunshine coated glass can be washed without damaging the

coated surface);

7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind,

good air drying effect, with heating system(with temperature control device, optional opening

and closing);

8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air

drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter

screen on the side for easy inspection and cleaning;

9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush

roller in the washing section is driven by independent belts of the upper and lower motors

respectively, the frequency conversion adjustment speed is stable, the service life is long,

realizes the cleaning high request special glass;

10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate,

easy to maintain;

11. Washing machine water tank outside, convenient water tank cleaning, water change, check,

so that the washing machine cleaning effect is cleaner.

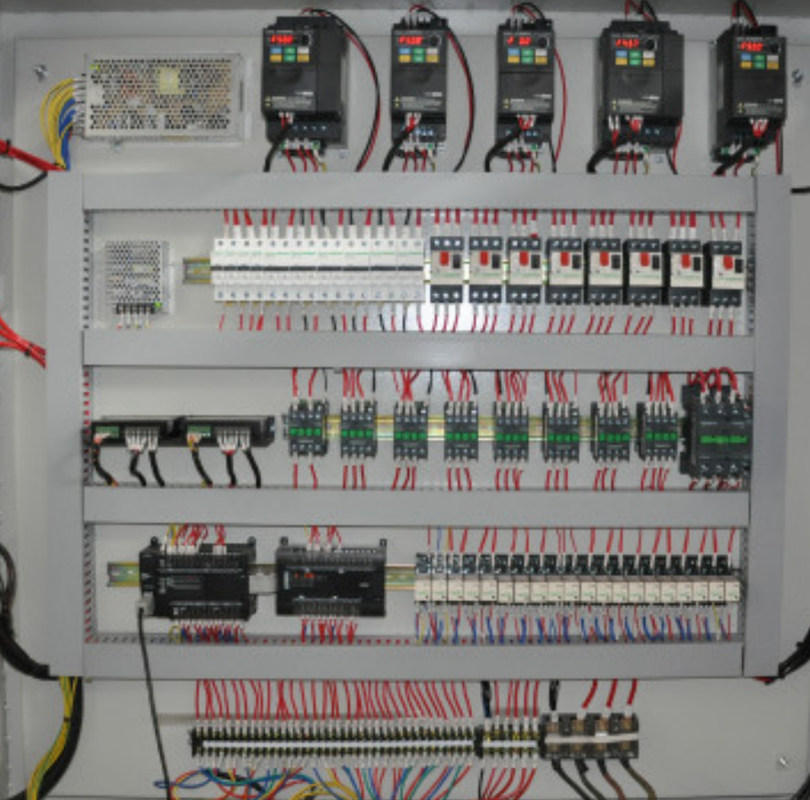

12. Optional with PLC control, touch screen display.It is convenient for workers to operate and

maintain, and can be connected to all manufacturers of edge grinding machines without gap.

(purchase separately if necessary)





Dirt Dust Grease Accumulation 2500mm Washing Glass Machine 1



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg



Dirt Dust Grease Accumulation 2500mm Washing Glass Machine 2
