replenish Glass Dryer 2mm Desiccant Filling Machine

replenish Glass Dryer 2mm Desiccant Filling Machine
replenish Glass Dryer 2mm Desiccant Filling Machine replenish Glass Dryer 2mm Desiccant Filling Machine replenish Glass Dryer 2mm Desiccant Filling Machine replenish Glass Dryer 2mm Desiccant Filling Machine replenish Glass Dryer 2mm Desiccant Filling Machine replenish Glass Dryer 2mm Desiccant Filling Machine replenish Glass Dryer 2mm Desiccant Filling Machine

Large Image :  replenish Glass Dryer 2mm Desiccant Filling Machine

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX
Delivery Time: 2 DAYS
Payment Terms: L/C, T/T
Supply Ability: 30 SETS PER MONTH

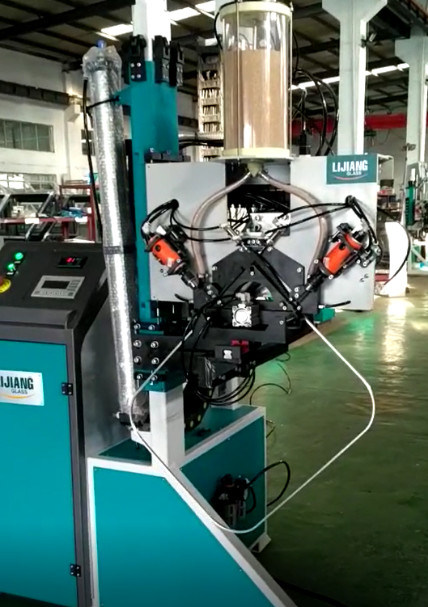

replenish Glass Dryer 2mm Desiccant Filling Machine

Description
Name: Molecular Sieve Filling Machine Max Frame Szie: 2000*2000mm
Min Frame Size: 200*300mm Aluminum Size: 6A-32A
Air Source: 0.65MPA Total Power: 1kw
Molecular Sieve Diameter: 0.5-0.9mm/ 1.0-1.5mm/1.5-2mm Machine Size: 1300*1100*3600mm
PLC: Germany Simens Filling Height: Adjustable
High Light:

2mm Desiccant Filling Machine

,

Replenish Desiccant Filling Machine

,

2mm butyl extruder machine

AUTOMATIC MOLECULAR FILLING MACHINE GLASS DRYER MACHINE INSULATING INSULATING GLASS MACHINE



Main feature



  1. The filling height of Desiccant filling machine can be adjusted according to the size of spacer frame
  2. Desiccant filling machine Filling time can be adjusted
  3. Desiccant filling machine auto loading and replenish
  4. ADesiccant filling machine auto drilling, filling and sealing function
  5.  Germany Siemens PLC control system
  6. Touching screen interface, simple and visible
  7.  Adding glue way is safe and easy
  8. Desiccant filling machine  can fill the arc frame.(optional function)
  9. Desiccant filling machine Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)
  10. Big bucket desiccant ,save desiccant refill time ,improve the work efficiency (optional function)
  11. Protection device for machine head ((optional function)
  12. Adopt vacuum pump loading device ,increase the loading speed (optional function



Main technical parameter



Filling aluminum frame’s maximum size 2000mm*2000mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm



Desiccant filling machine main component



name brand
PLC German SIEMENS
Low voltage electrical apparatus German SIEMENS
sensor Korea AUTONICS
guide Taiwan TBI
triplet TAIWAN AIRTAC
Solenoid valve TAIWAN AIRTAC
Gas driller Taiwan BOA
Switch power Taiwan TEND



replenish Glass Dryer 2mm Desiccant Filling Machine 0

replenish Glass Dryer 2mm Desiccant Filling Machine 1



replenish Glass Dryer 2mm Desiccant Filling Machine 2

replenish Glass Dryer 2mm Desiccant Filling Machine 3



replenish Glass Dryer 2mm Desiccant Filling Machine 4







replenish Glass Dryer 2mm Desiccant Filling Machine 5

replenish Glass Dryer 2mm Desiccant Filling Machine 6





Advantages of Lijiang Products



1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine



2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.

For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part .

For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.

For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .

for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.

For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.

For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.
