Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer

Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer
Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer
Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer

Large Image :  Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJQX2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 18000 - 25000 per set
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer

Description
Production Name: Vertical Glass Washing Machine Max Glass Size: 2000mm*2500mm
Glass Thickness: 3 - 15 Mm Soft Brushes: Washing Low-e Glass
Pre Washer: Pre Washing Machine Is Optional Warranty: 1 Year
High Light:

2000Mm Glass Washer And Dryer

,

Brushes Glass Washer And Dryer

,

2000Mm flat glass washer

2000Mm Height Clearly Glass Washing Machine With Six Pieces Of Soft Brushes



Washing machine has vertical and horizontal washing machine for float glass , or low-e glass. The brushes are six pieces of low-e glass, the machine is used in glass factory.

Main features :

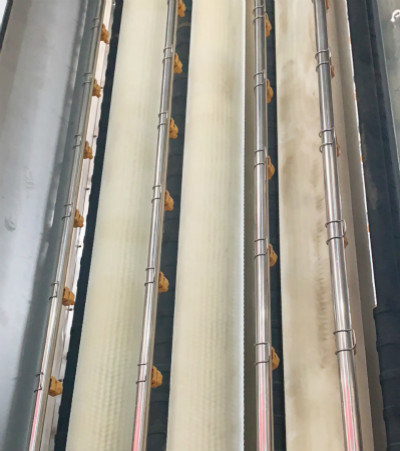

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

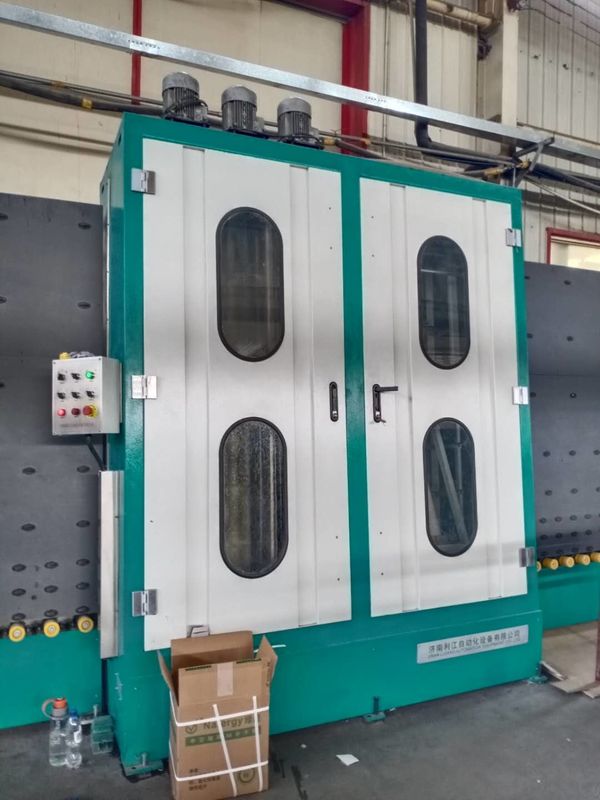

Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer 0

This machine is mainly used for cleaning and pretreatment of insulating glass production;

It has the characteristics of high production efficiency, safety and reliability, and convenient maintenance;

The brush spacing is adjustable, the brush is driven by belt, with low noise and three pairs of brushes;

It is suitable for the cleaning and processing of Low-E insulating glass and ordinary flat glass.

Parameters :

Electric power: 380V 13.09kw

Maximum cleaning speed: 3-12m / min

Maximum glass size: 2000 × 2500mm

Minimum glass size: 200 × 450mm

Thickness of original glass: 3-15mm

Boundary dimension: 8200 × 2500 × 1100mm

Max. glass size 2000mm*2500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Six Pieces Soft Brushes 2000Mm Glass Washer And Dryer 1

Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic insulating glass machinery, with a registered capital of 20 million RMB. Domestic friendly partners include nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria, Span and other countries (about 30 countries) of the world. There are about ten agencies, such as North America, South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time, we have set up branches in New Delhi, India. At present, the export of products accounts for more than 50% of the company's total sales.

LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.

We have advanced production technology in the world, from raw material processing to assembly, machine testing and debugging, which can provide optimal CNC solutions for customers at home and abroad. Adhering to the enterprise tenet of "precision manufacturing, quality LIJIANG", we choose international famous brands such as Siemens of Germany and OMRON of Japan as our main suppliers, and our products are highly praised by customers at home and abroad.

Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
