Product Details:
|
| Production Machine: | Vertical Edge Deleting Machine | Max Glass Size: | 2500mm*4500mm |
|---|---|---|---|
| Min Glass Size: | 350mm*500mm | Deletion Speed: | 0 - 15m/min |
| Deletion Width: | 10mm - 150mm | Wheels Size: | 10mm, 12mm, Or 15mm |
| Application: | Grinding Low-e Film Edge | ||
| High Light: | 15m/Min Vertical Edge Deleting Machine,Glass Vertical Edge Deleting Machine,15m/Min glass edge polishing machine |
||

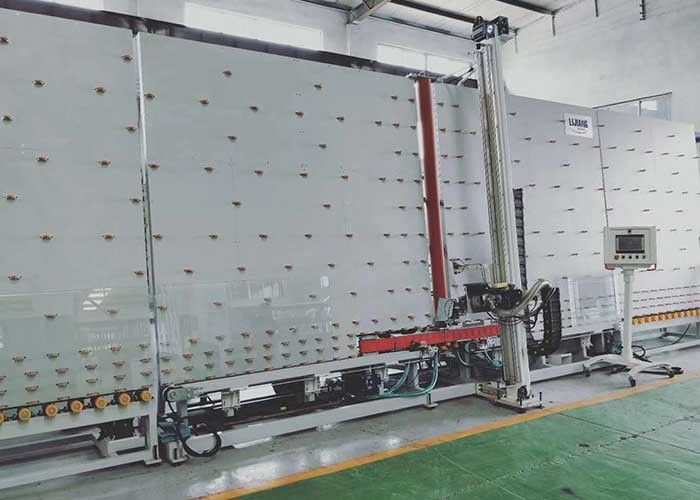

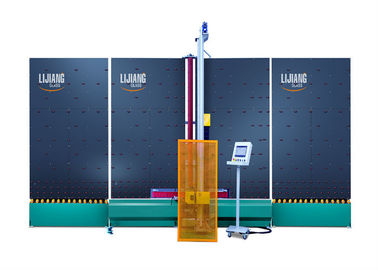

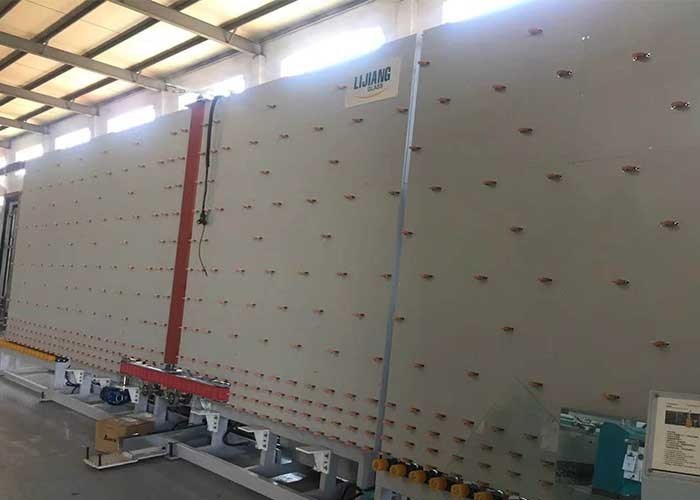

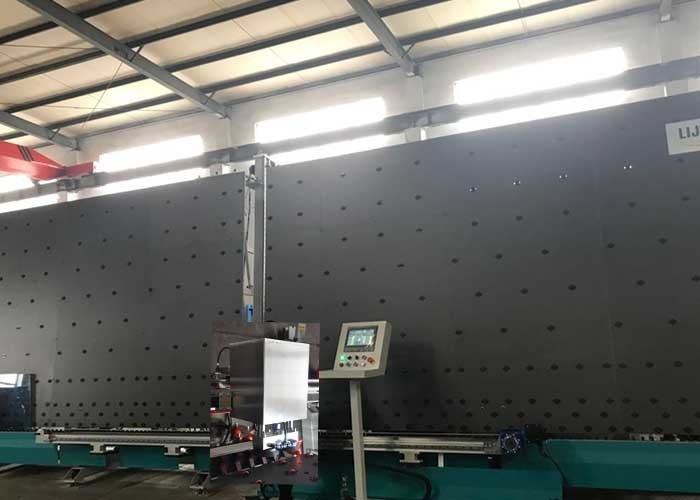

Insulating glass processing machine: The vertical low-e glass film remover used to manufacture double-layer glass is used to quickly remove the film on low-e glass. The deletion machine can delete rectangular glass and special-shaped glass. It has 6 servo motors.
Bidirectional glass channel
Remove Double and Triple Silver Low-e Glass
Automatic glass size measurement
Automatic recognition of low emission surfaces
Adjustable edge removal
The head can rotate 360°. Safe and fully automatic device
PLC control system, touch screen interface
6 servo control system
Can recognize intelligent control system, batch processing
| Max glass size | 2500mm*4500mm |
| Min glass size | 350mm*500mm |
| Wheels width | 10mm, 12mm, 15mm |
| Deletion width | 10mm - 150mm |
| Glass thickness | 3-15mm |
1. What is the function of the film remover?
The main function is to remove the edge film of Low-e glass
2. Reasons to remove low E glass film
Prevents the film from oxidizing during synthesis of insulating glass.
3. Which glass should be removed?
Offline Low-e glass
4. In addition to using the vertical film remover to remove film, what other ways can you remove film?
Manual, horizontal edge grinder, bilateral edge grinder, 4-edge edge grinder, cutting machine, etc.
5. What are the advantages of using a film separator? What are the drawbacks? What are the advantages of using other methods? What are the drawbacks?
Can be connected using our vertical film rdeletion machine, labor saving, good film removal effect, good glass flatness, can be in addition to large plate glass. The disadvantage is that it increases the overall length of the line and covers a large area.
Manual film removal effect is low and slow. The other is the removal of the film before strengthening. Since the heating times of white glass and Low-e glass during tempering are not the same, glass deformation occurs and the advantages do not require much investment.
6. Is the glass before tempering of the dividing film good after tempering of the dividing film? why?
After tempering, the film removal is good and the glass deformation is small.
7. What brand of PLC, servo motor driver, frequency converter do you use to remove the machine?
Currently Delta PLC Servo Motor and Drive, Inverter Delta and Schneider
8. How many sections does the film removal machine have? What are the dimensions of each segment? What is your role?
The film remover is divided into three sections. The first or third section is 2.2 meters and is mainly for glass input/output and glass storage. The central section is 5.3 meters and is mainly for film removal.
9. Can the device distinguish the surface of low emissivity film?
The film layer can be detected automatically.
10. If I use film remover, do I have to enter the length and width of the glass?
No, it will be detected automatically.
