Product Details:
|
| Production Name: | Automatic New Butyl Extruder Machine | Power(w): | 7KW |
|---|---|---|---|
| Brand: | LIJIANG GLASS | Warranty: | 1 Year |
| Application: | Coating Aluminum Spacer Frame For IG Units | Color: | Blue, Red, Optional |
| Voltage: | 380V 50Hz 3P | Glue: | Butyl Glue |
| High Light: | Sealing Butyl Extruder Machine,Silicone Butyl Extruder Machine,Silicone double glass machine |
||

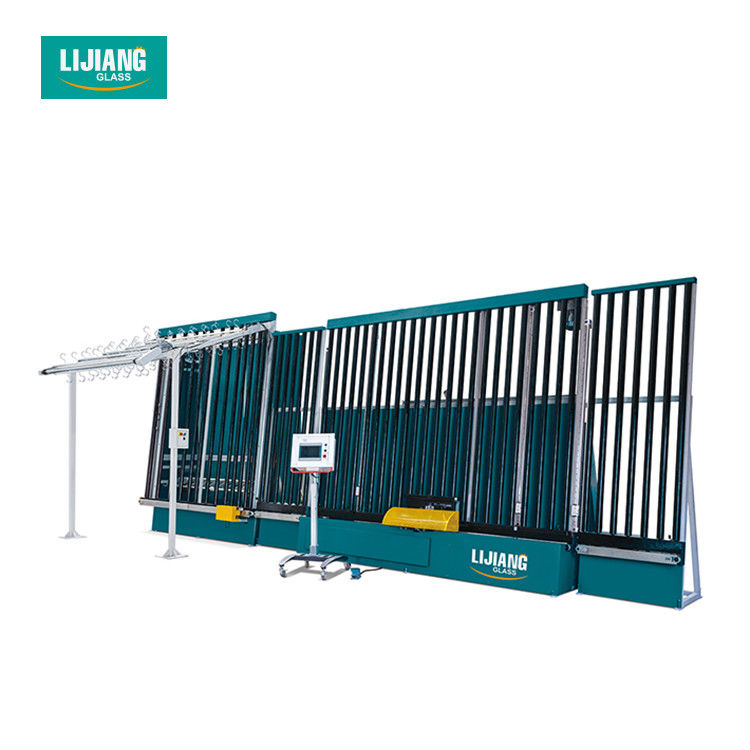

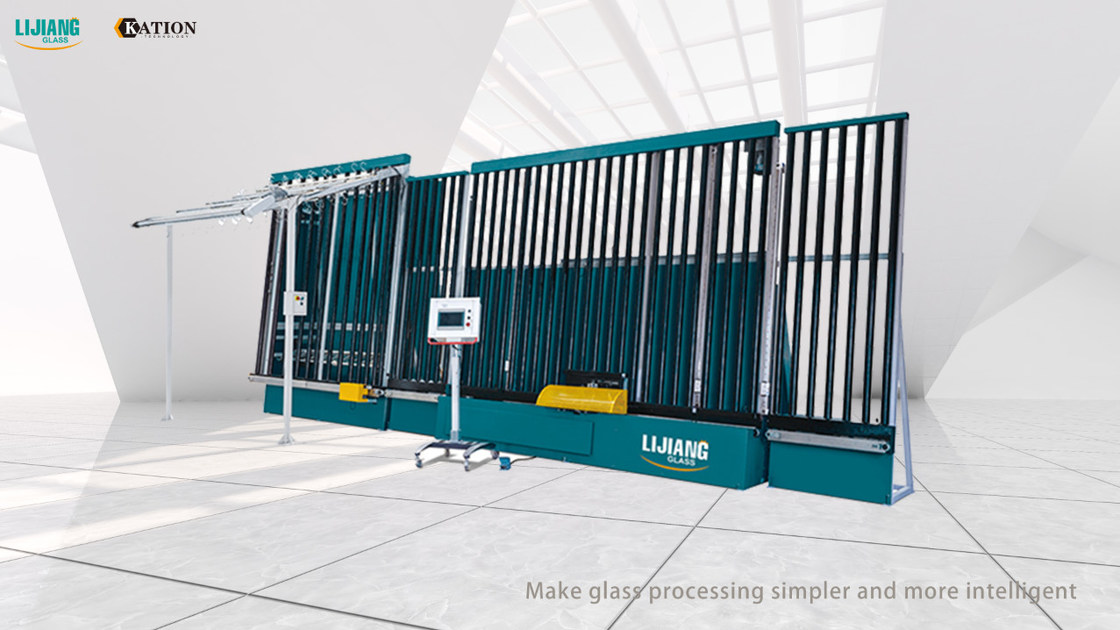

Full New Automatic Aluminum Spacer Coating Machine With Automatic Spacer Convey
The new butyl extruder is used for coating inflexible spacer bars. The new butyl extruder coating machine consists of three parts: loading spacer section, coating section and out section. The maximum machinable spacer frame size is 2500 x 2500 mm. First, measure the size of the spacing frame of the input segment and apply butyl adhesive on both sides by vertical movement and rotation. With PLC control, the amount of butyl rubber can be controlled accurately.
Introduction :

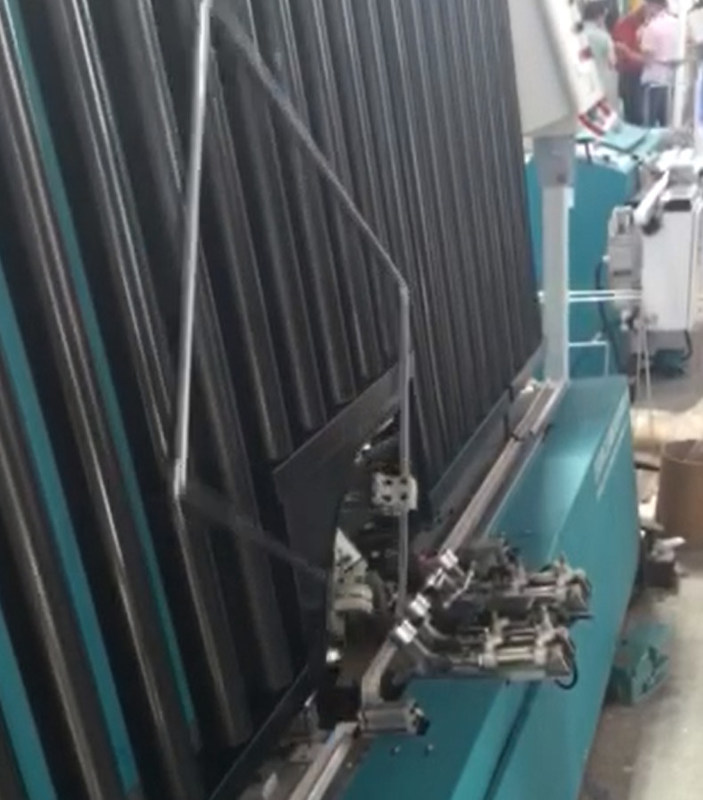

The fully automatic butyl extruder can be fully aligned with the insulated glass assembly line for fully automatic production, eliminating the need for manual labor throughout the coating process. This automatic butyl extruder has press wheel system (linear press wheel, arc press wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotating mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system. It consists of:
Machine features:
(1) There is an alarm device, and if there is no adhesive, it will automatically give an alarm (prompt will be displayed on the touch screen).
(2) Timing heating function, the worker can set the equipment start-up time in advance, the equipment will automatically start heating the system quickly before official work.
(3) The gap between the front and rear adhesive nozzles is automatically adjusted according to the width of the aluminum spacer.
(4) The transmission motor is controlled by servo motor, the transmission speed can reach up to 50m/min.
(5) The large frame support mechanism prevents the large aluminum frame from swinging greatly at the corners and deforming the frame.
(6) Simple, stable and reliable operation, accurate coating effect, fast coating speed, high production efficiency.
Parameters:
| Voltage | 3P 380+N+PE |
| Power | 8.5kw |
| Coating speed | 0~50m/min |
| Minimum spacer size | 400*400mm |
| Maximum spacer size | 2400*2200mm |
| Spacer width | 6~24mm |
| Heating temperature | 100~140°C |
| Gas pressure | 0.6 MPa |
| Extrusion pressure | 17MPa |
| System pressure | 30MPa |
| Dimension (L*W*H) | 8550×1500×3500mm |
| Weight | 3000Kg |
Layout :
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
LIJIANG’ new factory covers an area of 20000 square meters, has more than 100 employees, 6 people with middle and senior technical titles, 8 full-time technical R & D personnel, 3 production workshops (welding sheet metal workshop, machining workshop and assembly workshop) and technical R & D department, and has an independent international trading company (JINAN KATION). The production management and sales system of the enterprise adopts the advanced ERP and CRM management software in China to build an efficient, accurate, united and orderly high-end team.
