Thermopane Glass Butyl 47m/min Sealant Coating Machine

Thermopane Glass Butyl 47m/min Sealant Coating Machine
Thermopane Glass Butyl 47m/min Sealant Coating Machine
Thermopane Glass Butyl 47m/min Sealant Coating Machine Thermopane Glass Butyl 47m/min Sealant Coating Machine Thermopane Glass Butyl 47m/min Sealant Coating Machine

Large Image :  Thermopane Glass Butyl 47m/min Sealant Coating Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

Thermopane Glass Butyl 47m/min Sealant Coating Machine

Description
Dimension(L*W*H): 600*680*1100mm Name: Factory Supply Insulating Glass Automatic Butyl Sealant Coating Machine
Application: Extruding The Hot Melt Butyl Into Insulating Glass Usage: Making Insulating Glass
High Light:

47m/Min Sealant Coating Machine

,

Thermopane Glass Sealant Coating Machine

,

Thermopane Glass butyl machine

Factory Supply Insulating Glass Automatic Butyl Sealant Coating Machine



LJTB01 butyl extruder type is used to spread the aluminum spacer frame evenly using hot melt butyl. The equipment uses a large electrical control panel, making the operation easier. The aluminum conveyor is controlled by frequency converter, the speed can be adjusted from 0m/min to 47m/min, which is the fastest speed in China. It is very popular for energy saving. The crimping system adopts pneumatic and hydraulic supercharging system, making the crimping pressure more stable. The dispensing cylinder can be easily replenished with butyl using a vertical rotary support system. It can extend the life of the crimping system and set the heating time within 24 hours with electric and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum spacers. This machine has reached technology all over the world with its full function and stable operation mode function.
Thermopane Glass Butyl 47m/min Sealant Coating Machine 0
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Thermopane Glass Butyl 47m/min Sealant Coating Machine 1

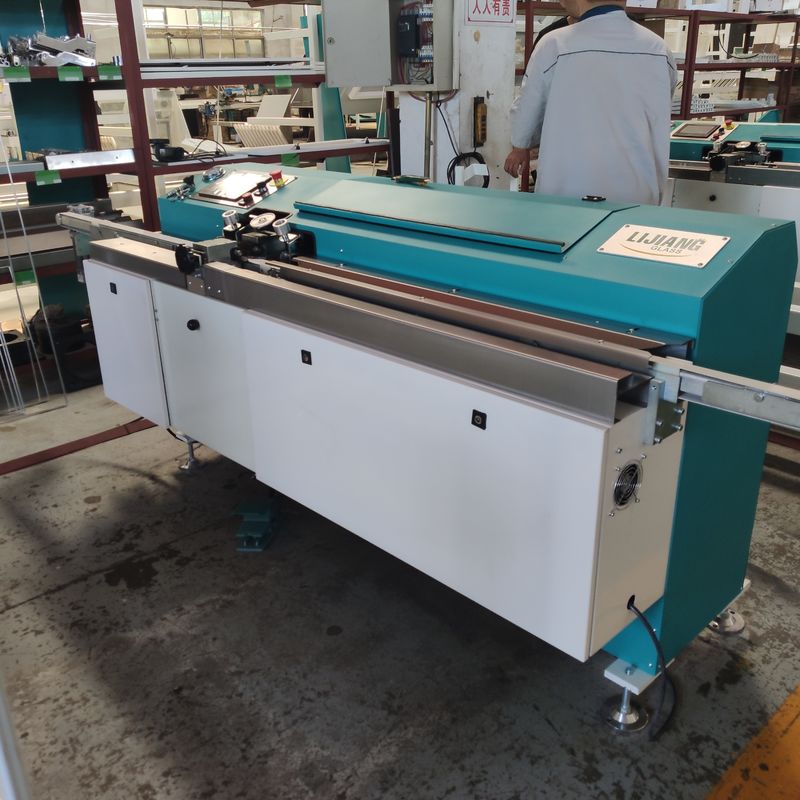

Machine Details
The automatic butyl extruder is used to spread the aluminum frame as spacer (and other spacers) evenly with hot melt butyl extruder using the large electrical control panel which can easily operate. Than before, the speed can be adjusted from 0m / min to 47m / min. It is the fastest speed in China to date. Butyl extruder is very popular for saving energy. The crimping system uses German pneumatic and hydraulic air compressor, which makes the crimping pressure more stable. Butyl extruder has access to technology worldwide with full functions and features of famous spare parts.
Thermopane Glass Butyl 47m/min Sealant Coating Machine 2
Thermopane Glass Butyl 47m/min Sealant Coating Machine 3
