Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

Rubber Coating Insulated Windows 30mm IGU Machine

Description
Name: Hot Sale Insulating Glass Machine Automatic Butyl Extruder Air Pressure: 0.5-0.8Mpa
Usage: Butyl Rubber Coating Function: Used For The First Sealing Butyl
High Light:

30mm IGU Machine

,

Insulated Windows IGU Machine

,

30mm double glass machine

Hot Sale Insulating Glass Machine Automatic Butyl Extruder

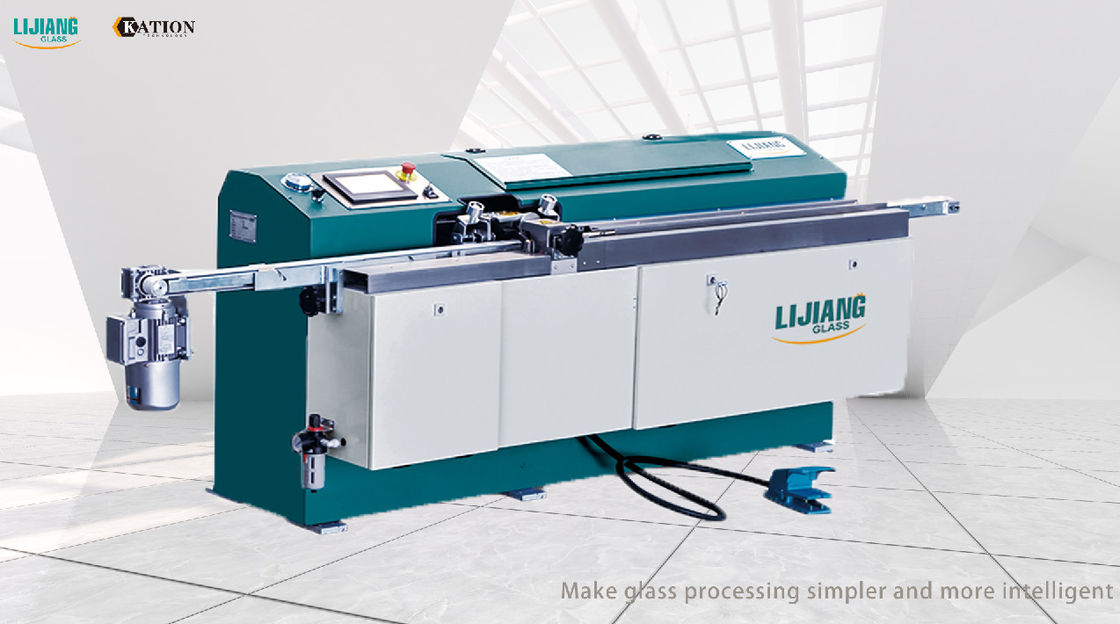

The LJTB01 butyl extruder type is used to spread the aluminum spacer frame evenly using a hot melt butyl. The equipment uses a large electrical control panel, making the operation much easier. The aluminum conveyor is controlled by the frequency converter, the speed can be adjusted from 0 m / min to 47 m / min which is the fastest speed in China. It is very popular for energy saving. The crimping system adopts pneumatic and hydraulic supercharging system, making the mpu pressure more stable. Using the vertical rotary support system, the cylinders can be easily refilled with batel. This can extend the life of the crimping system and set the heating time to 24 hours with electrical and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum spacers. This machine has reached the technology worldwide with the features of perfect function and stable operation mode.
Rubber Coating Insulated Windows 30mm IGU Machine 0
Rubber Coating Insulated Windows 30mm IGU Machine 1
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Machine Details

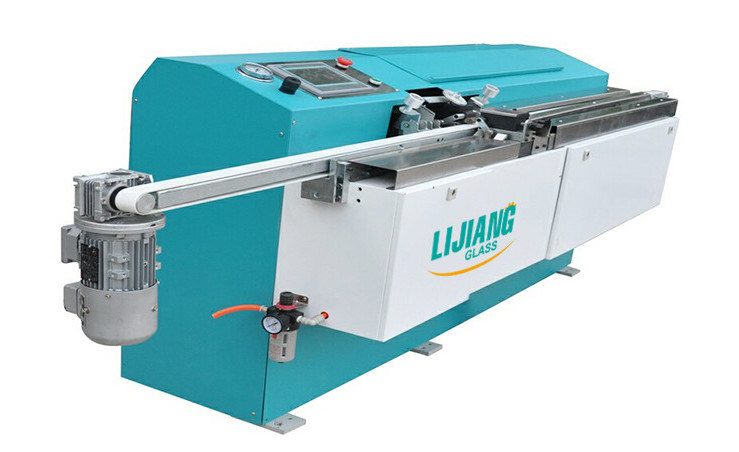

The automatic butyl extruder machine is used to evenly distribute the aluminum spacer frame (and other spacers) with hot melt butyl. The Butylex extruder uses a large electrical control panel that is much easier to use than before. The speed can be set from 0 m / min to 47 m / min. This is the fastest speed in China so far. Butyl extruders are very popular to save energy. The crimp system uses a German pneumatic and hydraulic loading system that makes the crimp pressure more stable. The butyl extruder, with its full function and the properties of famous spare parts, has reached technology all over the world.
Rubber Coating Insulated Windows 30mm IGU Machine 1
Rubber Coating Insulated Windows 30mm IGU Machine 3

Company information

LIJIANG GLASS is located in the beautiful spring city of Jinan. A company that integrates research, development, sales, and service of glass processing equipment. Due to its proximity to the Beijing-Shanghai high-speed train, it is very convenient for transportation.


The company is committed to building high-end insulated glass machinery equipment, learning from well-known experts, establishing R & D centers, cooperating with well-known companies at home and abroad, and importing advanced technology. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we cooperated with famous domestic research institutes such as North China Industrial Group, Shandong University, etc. to constantly improve the level of technical research. So far, we have been independently producing the vertical automatic IG production line with filling gas, vertical IG sealing robot, automatic spacer bending machine, automatic desiccant filling machine, and new fully automatic butyl extruder. It was Its technology and quality reached the highest top level in China


With the rapid development of the insulating glass industry, LIJIANG looks forward to creating a win-win situation and jointly creating a new world.
