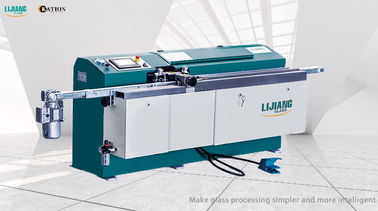

Hot Melt Glue Double Glazing Glass Butyl Extruder Machine

Hot Melt Glue Double Glazing Glass Butyl Extruder Machine
Hot Melt Glue Double Glazing Glass Butyl Extruder Machine Hot Melt Glue Double Glazing Glass Butyl Extruder Machine

Large Image :  Hot Melt Glue Double Glazing Glass Butyl Extruder Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

Hot Melt Glue Double Glazing Glass Butyl Extruder Machine

Description
Total Power: 380V, 5KW, 50HZ Glass Thickness: 1-40mm
Dimension(L*W*H): 600*680*1100mm Name: 622132853771/5 Insulating Glass Hot Melt Glue Machine Double Glazing Glass Silicone Extruder Machine
Warranty: 12 Months Function: Double Glass Aluminum Spacer
High Light:

Glass Butyl Extruder Machine

,

Double Glazing Butyl Extruder Machine

,

Double Glazing butyl machine

Insulating Glass Hot Melt Glue Machine Double Glazing Glass Silicone Extruder Machine

 Hot Melt Glue Double Glazing Glass Butyl Extruder Machine 0

LJTB01 type butyl extruder is used to spread the aluminum spacer frame evenly using hot melt butyl. The equipment uses a large electrical control panel, which makes operation easier. The aluminum conveyor is controlled by a frequency converter, the speed can be adjusted from 0 m / min to 47 m / min, which is the fastest speed in China. It is very popular for energy saving. The crimping system uses pneumatic and hydraulic pressurization system, which makes the pressing pressure more stable. The dispensing cylinders can be easily refilled with butyl using the vertical swing support system. It can extend the life of the crimping system and set the heating time to 24 hours by using electric and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum spacers. This machine has reached high technology all over the world due to its excellent functions and stable performance.
Hot Melt Glue Double Glazing Glass Butyl Extruder Machine 1
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg

Hot Melt Glue Double Glazing Glass Butyl Extruder Machine 2

Hot Melt Glue Double Glazing Glass Butyl Extruder Machine 3

Machine Details

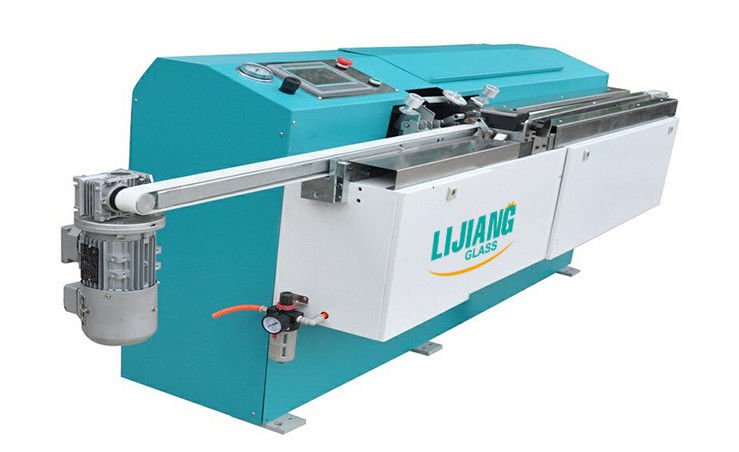

Automatic butyl extruder machine is used to spread the aluminum spacer frame (and other spacers) evenly with hot melt butyl. Butyl extruder uses a large electric control panel that can operate much easier than before. Speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China to date. Butyl extruders are very popular for energy saving. The crimping system adopts German pneumatic and hydraulic supercharging system, which makes the crimping pressure more stable. Butyl extruder has reached technology all over the world with its full function and the characteristics of famous spare parts.
Hot Melt Glue Double Glazing Glass Butyl Extruder Machine 4
Hot Melt Glue Double Glazing Glass Butyl Extruder Machine 5

Company information

LIJIANG GLASS is located in the beautiful spring city of Jinan. A company that integrates research, development, sales, and service of glass processing equipment. Due to its proximity to the Beijing-Shanghai high-speed train, it is very convenient for transportation.


The company is committed to building high-end insulated glass machinery equipment, learning from well-known experts, establishing R & D centers, cooperating with well-known companies at home and abroad, and importing advanced technology. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we cooperated with famous domestic research institutes such as North China Industrial Group, Shandong University, etc. to constantly improve the level of technical research. So far, we have been independently producing the vertical automatic IG production line with filling gas, vertical IG sealing robot, automatic spacer bending machine, automatic desiccant filling machine, and new fully automatic butyl extruder. It was Its technology and quality reached the highest top level in China


With the rapid development of the insulating glass industry, LIJIANG looks forward to creating a win-win situation and jointly creating a new world.
