igu window Silicone Sealant Spacer Butyl Extruding Machine

igu window Silicone Sealant Spacer Butyl Extruding Machine
igu window Silicone Sealant Spacer Butyl Extruding Machine igu window Silicone Sealant Spacer Butyl Extruding Machine

Large Image :  igu window Silicone Sealant Spacer Butyl Extruding Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 20-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

igu window Silicone Sealant Spacer Butyl Extruding Machine

Description
Power(W): 5KW Glass Thickness: 1-40mm
Squeeze Pressure: 10-18Mpa Name: Insulating Glass Silicone Sealant Spacer Butyl Extruding Machine
Condition: New Air Pressure: 0.5-0.8Mpa
High Light:

Spacer Butyl Extruding Machine

,

Sealant Butyl Extruding Machine

,

Igu Window butyl machine

Insulating glass silicone sealant spacer butyl extruding machine

 igu window Silicone Sealant Spacer Butyl Extruding Machine 0

LJTB01 type butyl extruder is used to spread the aluminum frame evenly spacer by using hot melt butyl. The device uses a large electrical control panel to make operation easier. The aluminum belt is controlled by frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. Very popular for energy saving The crimping system uses the super-hydraulic, pneumatic system and makes the crimping pressure more stable. The filling tank can be easily filled with butyl using a rotary vertical support system. It can extend the life of the crimping system and set the heat timer within 24 hours with electric and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum spacers. This device has access to technology all over the world with perfect operating features and stable operation modes.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Machine Details

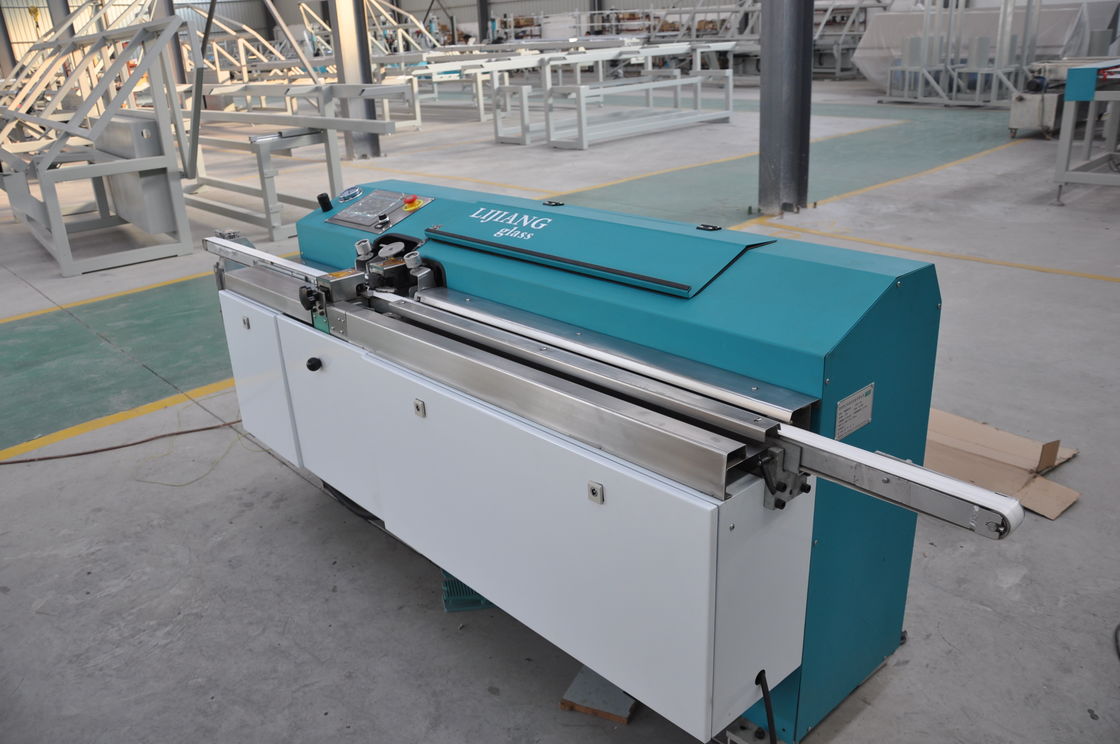

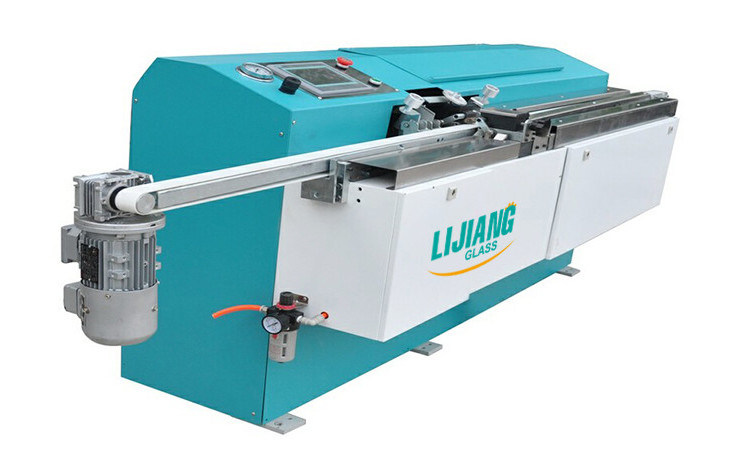

Automatic butyl extruder machine is used to spread the aluminum spacer frame (and other spacers) evenly with hot melt butyl. Butyl extruder uses a large electric control panel that can operate much easier than before. Speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China to date. Butyl extruders are very popular for energy saving. The crimping system adopts German pneumatic and hydraulic supercharging system, which makes the crimping pressure more stable. Butyl extruder has reached technology all over the world with its full function and the characteristics of famous spare parts.
igu window Silicone Sealant Spacer Butyl Extruding Machine 1
igu window Silicone Sealant Spacer Butyl Extruding Machine 2

Main feature

  • PLC control system, touch screen interface
  • Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
  • The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
  • Fast preheat, improve work efficiency
  • with preheating function
  • With exhaust inflatable function, improve the quality of sealing and save time for plastic
  • Quickly coating speed, can up to 47m/min
  • Saving the amount of glue

igu window Silicone Sealant Spacer Butyl Extruding Machine 3

Company information

Jinan Lijiang Automation Equipment Co., Ltd (LIJIANG GLASS) is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.

igu window Silicone Sealant Spacer Butyl Extruding Machine 4
