Vertical Insulating Glass Production Line ,Applicable to produce stepped IG,

Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG,
Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG,

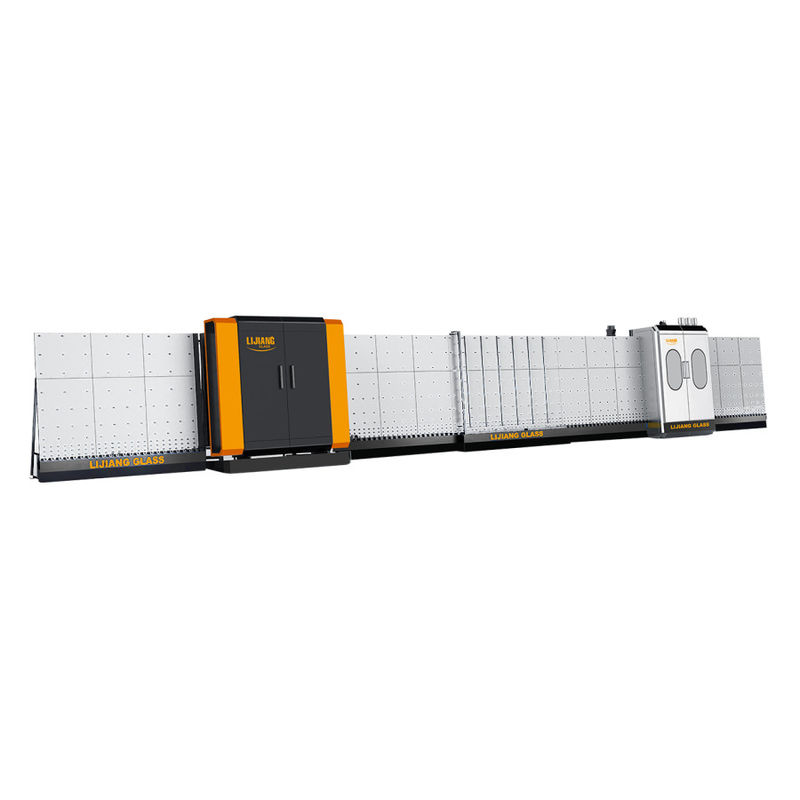

Large Image :  Vertical Insulating Glass Production Line ,Applicable to produce stepped IG,

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2025
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 50000-45000
Packaging Details: container
Delivery Time: 30-40
Supply Ability: 30sets

Vertical Insulating Glass Production Line ,Applicable to produce stepped IG,

Description
Name: Vertical Insulating Glass Production Line Glass Washing Speed: 2-10m/min
Glass Conveyor Speed: 45m/min Washing Brushes: 3 Pairs
3 Pairs: Water Consumption:0.5t/h Conductivity:40μs/cm
High Light:

10m/min glass fabrication machine

,

2m/min insulating glass machine

,

15mm insulating glass line

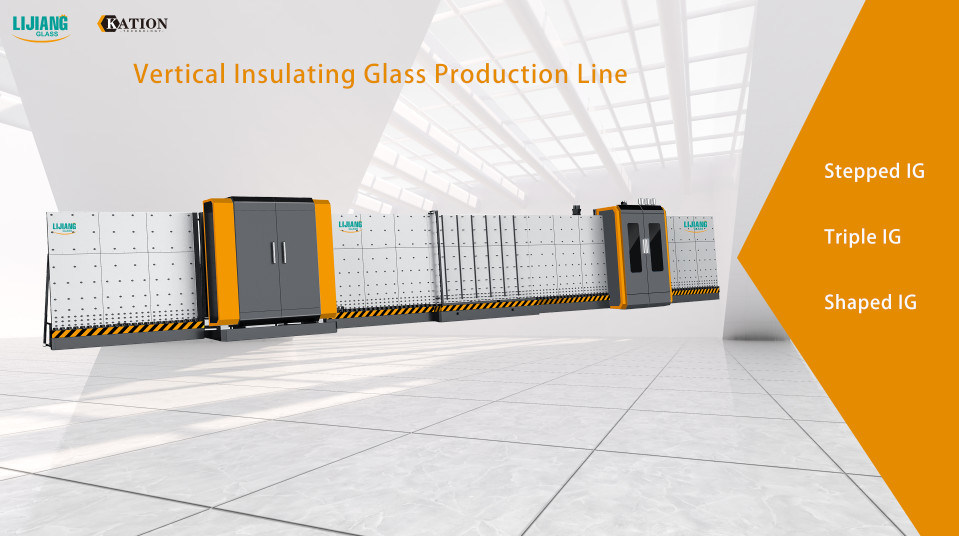

Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 0



Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 1

Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional



Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 2



Main feature:

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG



  • Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• No need to drill holes in spacer frame

• Standard gas is Argon gas

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen



Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 3

Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 4



Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg





Electrical parameters

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC



Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development,

sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very

convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from

famous experts, establishing the research and development centers, cooperating with domestic and foreign

well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North

Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and

other well-known enterprises. Since the establishment of the company, our products have been exported to

Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.

At the same time, our company worked with the well-known domestic research institutes, such as the North

China Industrial Group, Shandong University and others, to constantly improve the level of technical research.

So far, we have independently produced the vertical automatic IG production line with filling gas on line,

the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine

and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading

level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win

situation and jointly creating a new world.



Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 5

Vertical Insulating Glass Production Line  ,Applicable to produce stepped IG, 6
