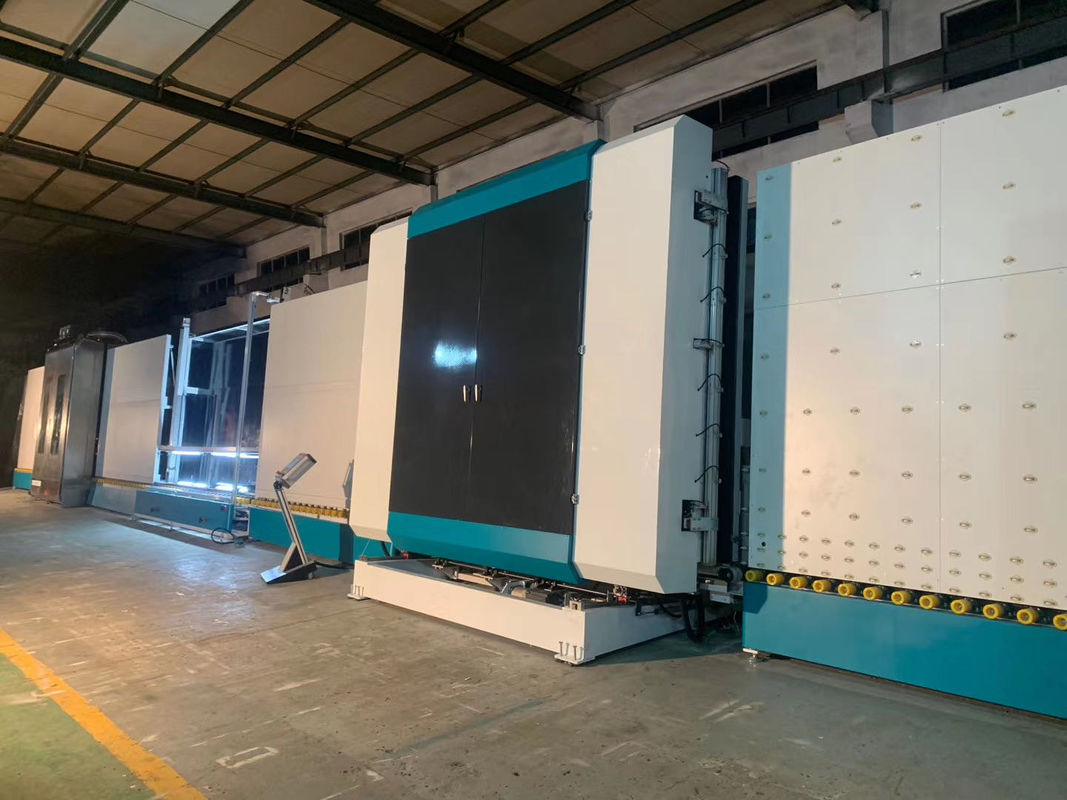

Product Details:
|
Name: | Vertical Insulating Glass Production Line LJBZ2535 | Weight: | 6500kg |
---|---|---|---|
Dimension: | 23500*3500*3700mm | Total Power: | 3P 380V 50HZ 40KW |
Air Pressure: | ≥0.8MPa | Water Supply: | Water Consumption:0.5t/h Conductivity:40μs/cm |
High Light: | 10m/min glass fabrication machine,2m/min insulating glass machine,15mm insulating glass line |
Main feature:
• Use 6 soft brushes
•Online and offline cleaning of low-e glass, automatic identification of low-e film

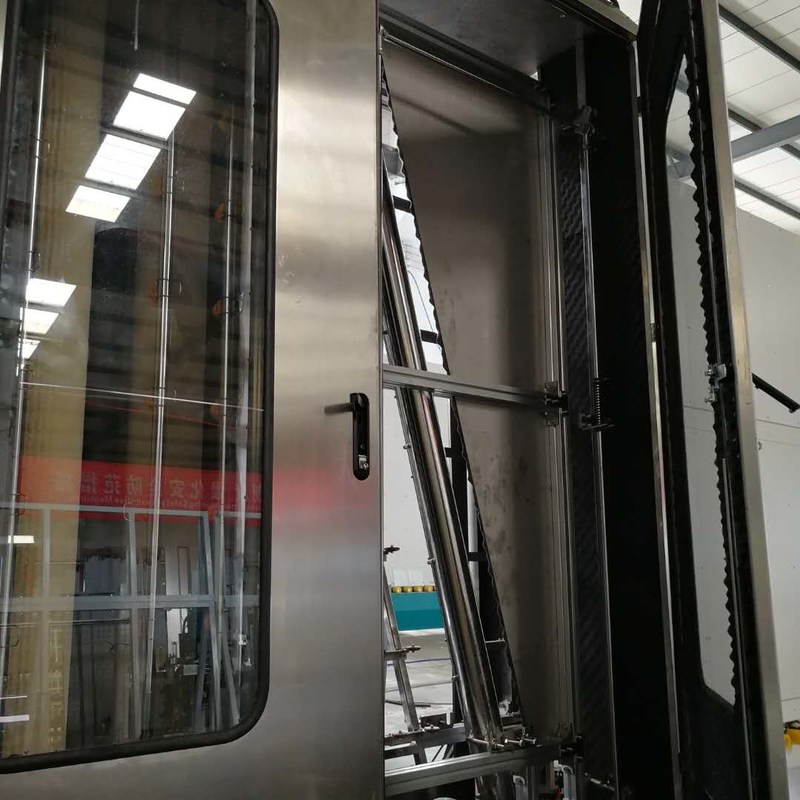

•The washing part adopts the upper and lower layer structure design
•Adopt frequency conversion fan, high efficiency and energy saving, good cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Adopt intelligent intermittent energy-saving working mode
•Layered cleaning system
• Automatic temperature control of water tank, water supply system
•European Silencing System
•304 stainless steel material
Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
Main feature:
• Extra-long insulating glass can be compressed a second time
• The machine uses servo torque to press the glass
• The pressure plate has adjustable screws to ensure durable high-precision tablets
• Equipped with an accurately adjustable front pressure plate mechanism
• The system can diagnose fault information
• The pressure plate can be opened to 400mm width, easy to maintain
•Suitable for producing quadrilateral IG, triple IG and special-shaped IG
• Automatically fill the argon in the pressure plate with precise gas concentration
• When filling the formed IG, the size of the rectangle before inflation is 450mm (length) and 280mm (height)
• No need to drill holes on the spacer
• The standard gas is argon
• Fast-response sensor can permanently control the inflation process
• Automatically set gas data and display the data on the screen
Transfer wheel and air floatation technology
The front and rear transmission wheels have moved, and both have been actively transmitted. It can ensure smooth passage of large and thick glass.
The new air floating technology uses air-supported glass and transfer glass. When the glass is cleaned from the washing machine with a washing machine, it will not be contaminated when the glass is transported by air. Ensure the highest quality of insulating glass produced.

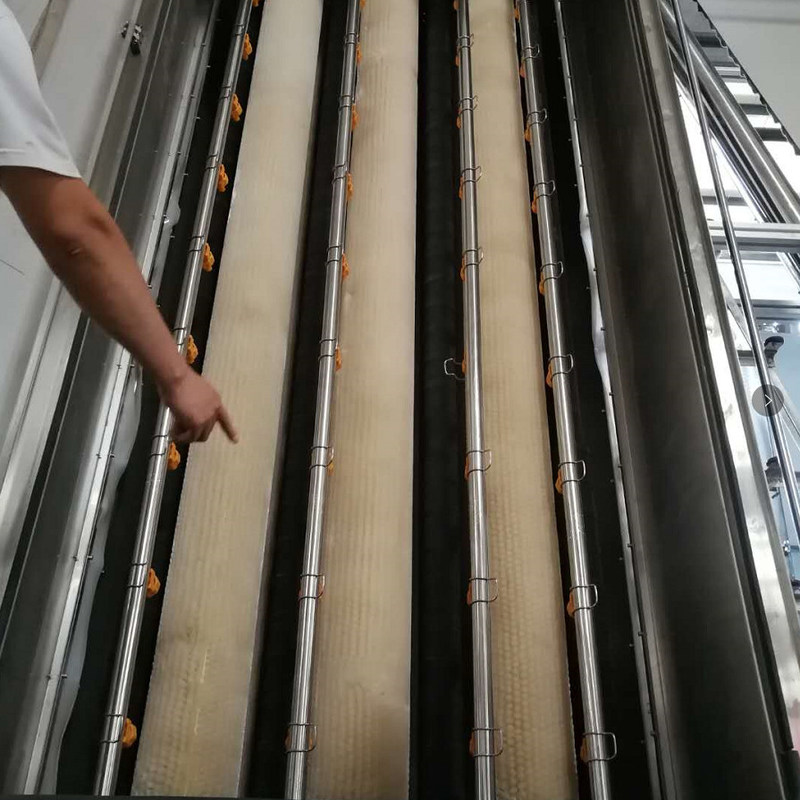

The washing machine only uses six soft (Low-e) brushes with a diameter of 0.1mm.
It has 6 brushes, all soft brushes, which can clean low-e glass, flat glass, tempered glass, etc. The bristles have a diameter of less than 0.1 mm and will never damage the glass, especially for low-e glass.
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and
development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail,
the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by
learning from famous experts, establishing the research and development centers, cooperating
with domestic and foreign well-known enterprises, importing advanced technology and so on.
Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing
Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the
establishment of the company, our products have been exported to Europe, America, South
America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same
time, our company worked with the well-known domestic research institutes, such as the North
China Industrial Group, Shandong University and others, to constantly improve the level of technical
research. So far, we have independently produced the vertical automatic IG production line with filling
gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic
desiccant filling machine and the new fully automatic butyl extruder machine, its technology and
quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with
you for win-win situation and jointly creating a new world.
