Product Details:
|
| Production Name: | Glass Sucker Loading Machine | Max Weight: | 300kg / 500kg , 400kg, 900kg Are Options |
|---|---|---|---|
| Column Length: | 4 Meters | Arm Length: | 4 Meters |
| Sucker: | 4 Or 2 Suckers | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | ||
| High Light: | 300Kg glass vacuum lifter,500Kg vacuum lifting equipment |
||
300Kg 400Kg 500Kg Glass Loading And Glass Unloading Machine With Suckers And Column
Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. When LIJIANG equipment arrive customer’s factory, LIJIANG can send engineers to customer’s factory for installation, adjustment and personnel train with free commission. However, customers should bear the engineer’s round-trip air tickets and accommodation.
2. During the warranty year, if there is problem with LIJIANG equipment, LIJIANG will provide timely technology support online firstly. However, if engineer has to go to customer’s factory repair machines, the customer should bear the round-trip air tickets and accommodation. Please notes, if there is damaged spare because of LIJIANG, LIJIANG will prepare them in advance (Except wearing parts).
3. Beyond the warranty period, if LIJIANG equipment has problem, LIJIANG will provide timely technology support online firstly. However, if customers request LIJIANG engineer, the customer should bear the engineer’s round-trip air tickets and accommodation, also the customer should pay LIJIANG 150 dollars per day as service commission.
Note: Before LIJIANG engineers go to customer’s factory, the customer should send the air tickets and hotel details in advance. LIJIANG will arrange the engineer's itinerary and maintenance items ASAP.
300Kg 400Kg 500Kg Glass Loading And Glass Unloading Machine With Suckers And Column

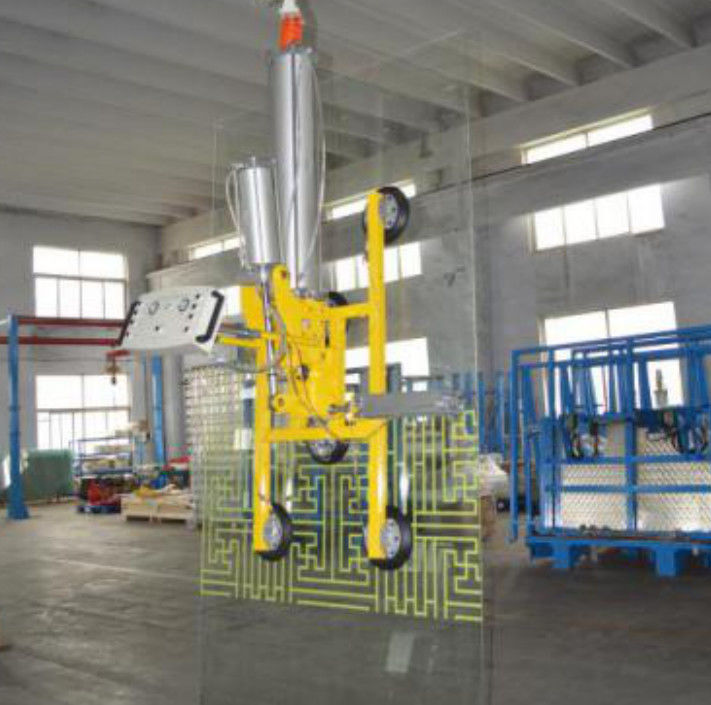

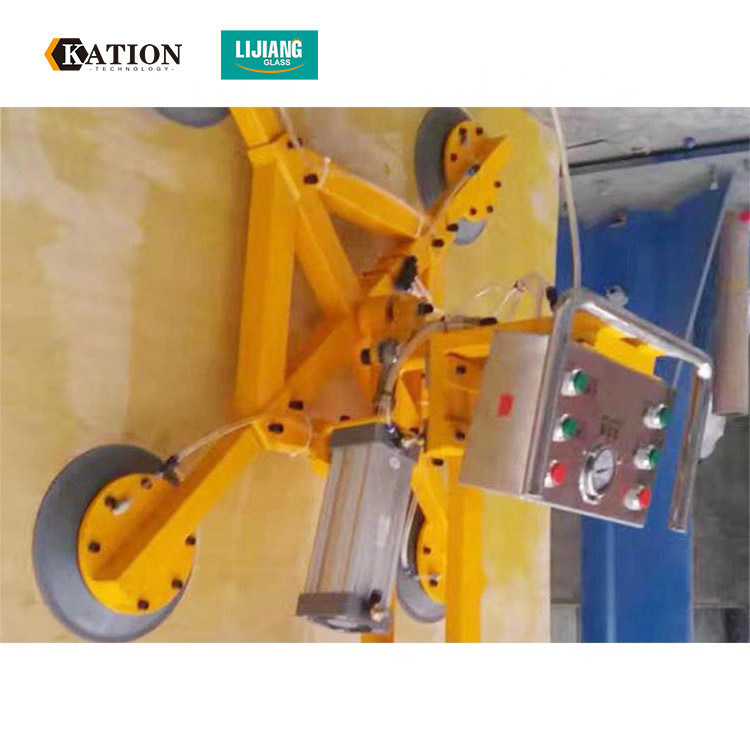

Glass loading machine has many types, such as the sucker lift, Forklift with glass lifting belts and so on. This type of glass loading machine is with lifting suckers and column for glass factory inside. The column is 4 meters length and the arm length is 4 meters. The numbers of the sucker can be two or four numbers. The maximum glass weight can be optional. Normally the sizes can be 300kg / 360kg / 400kg / 500kg/ 900kg and so on.

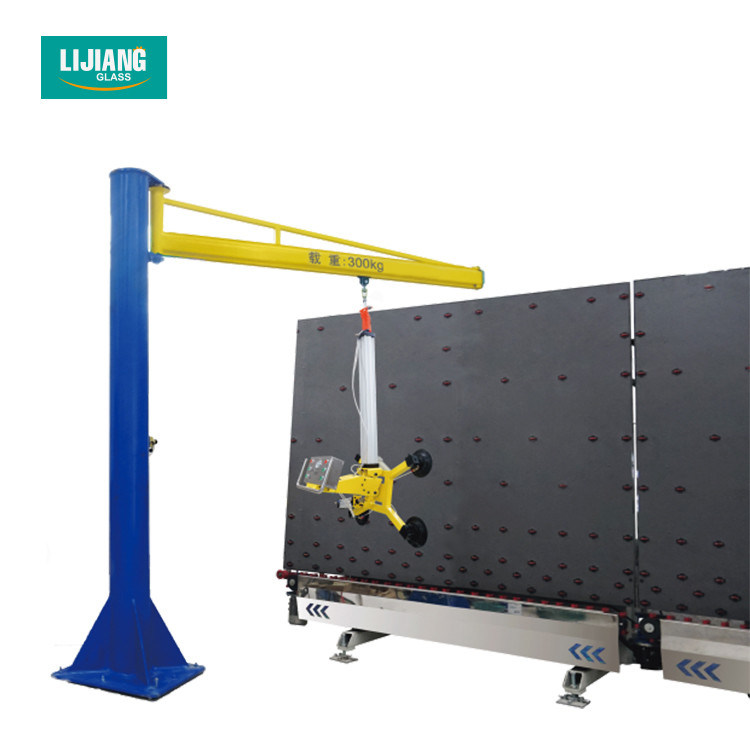

Cantilever Crane
Technical data
| Max loading | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters |
Gas storage function
|
| Arm length | 4 meters | |
| Air Control parts | AIRTAC |
Parameters:
| Max Glass weight | 360KG | |
| Rotation angle | 90° | Left and Right |
| Suction cups | 4 Pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Parameters:
| Max Glass weight | 260KG | |
| Rotation angle | Rotate 90 ° | Left and right |
| Suction cups | 2 pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4meters | |
| Air control parts | Airtac |
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
