Product Details:
|
| Production Name: | Vertical Low-E Glass Edge Deletion Machine | Glass Thickness: | 3 - 15mm |
|---|---|---|---|
| Edge Width: | 10 -150mm | Voltage: | 380V 50Hz 3P |
| Dimension(l*w*h): | 9700mm*2500mm*3400mm | Weight: | 2500kg |
| Power(w): | 15kw | Warranty: | 1 Year |
| High Light: | 15mm glass edge polishing machine,Vertical glass belt grinding machine |
||
Description of Low-E Film Edge Deletion Machine
Glass edge deletion machine is specialized for Low-E glass deleting edge with vertical structure and convenient production line connection.High quality grinding wheels are durable and can produce neat and beautiful grinding crack. Distance can be set among 10 ~ 150 mm arbitrarily.Transmission adopts imported servo control system, accurate positioning and smooth operation.
Vertical Low-E glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section.Glass edge deletion machine has 4 kinds of different directions.
Vertical low-e film edge deletion machine can delete the double or triple low-e film.
Main feature of smart verticle edge deleting machine
Four-way glass access
Automatically measure glass size
Automatically distinguish low-e surface
Delete double and triple silver low-e glass
PLC control system, touch screen interface
The head can be rotated 360°
Edge deletion is adjustable
Safe and full automatic device
Six servos control system
Intelligent control system, can recognize batch processing
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
Tech Specification of edge deleting machine
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |

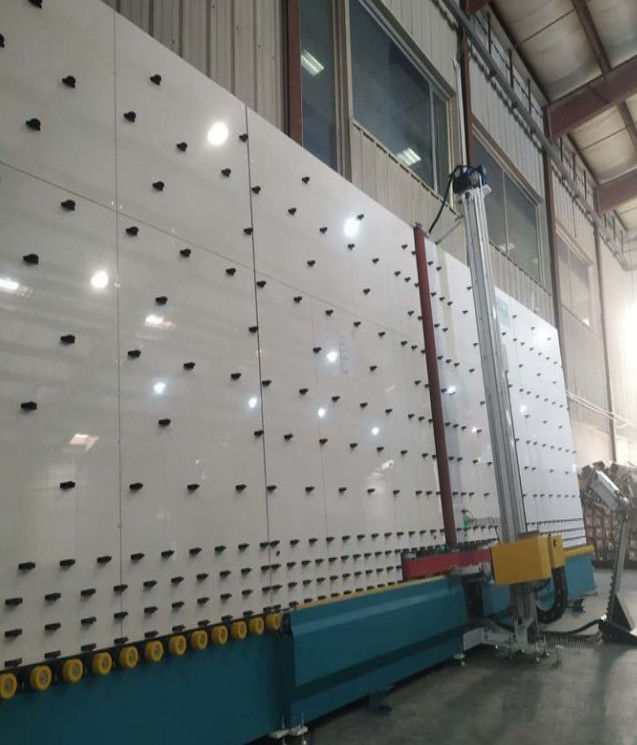

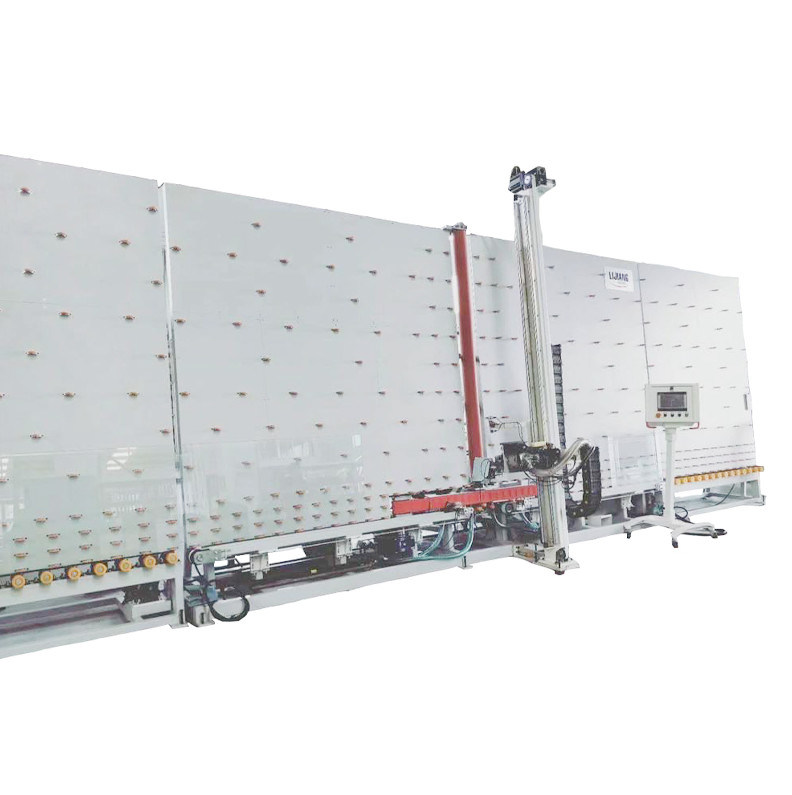

Detail picture
