Product Details:
|
Name: | Double Glazing Glass Silicone Glue Sealing Robot | Max Size: | 2500*4000mm |
---|---|---|---|
Advantage: | Shape Glass And Stepp Glass | Glass Thickness: | 12-50mm |
Working Speed: | 5-40m/min | ||
High Light: | 50mm silicone extruder machine,Glazing glass sealing machine |

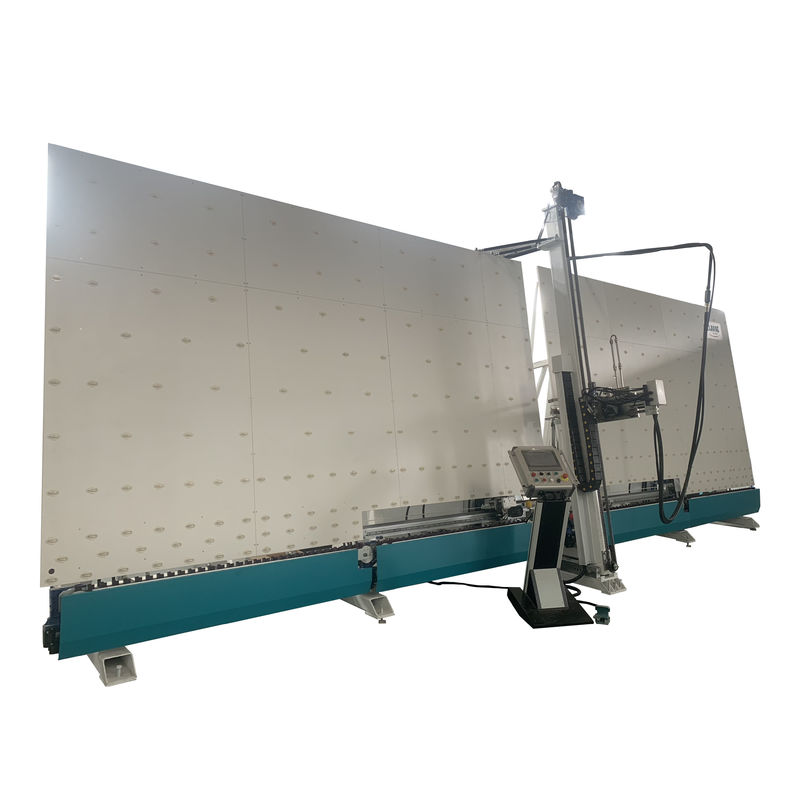

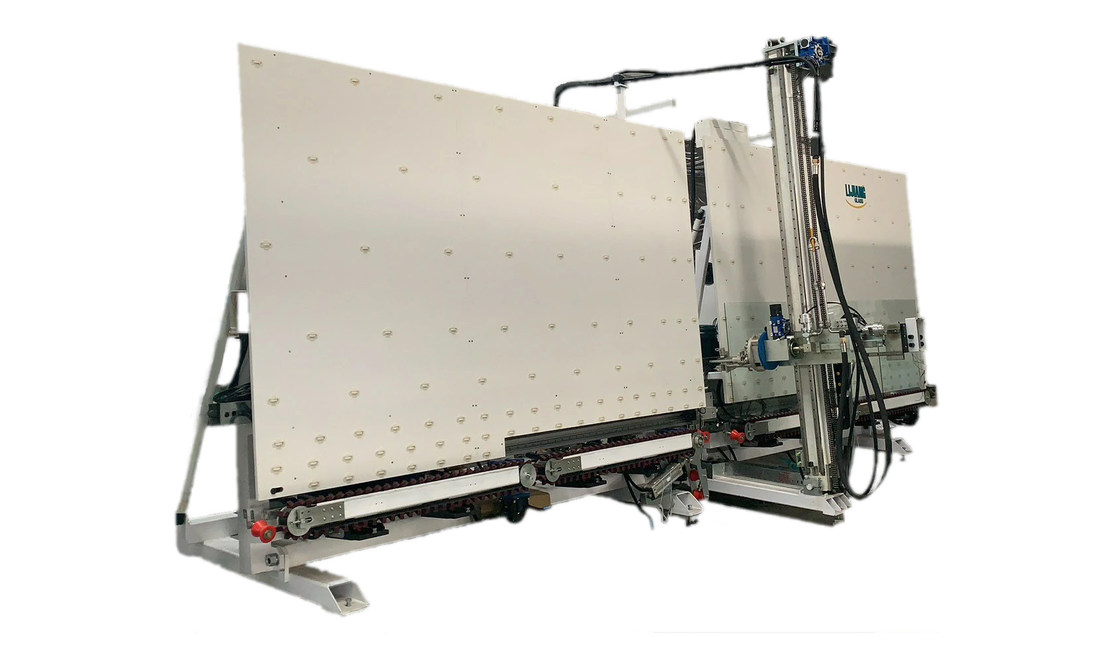

►Description of Sealing robot for insulating glass processing
This type of machine is a full automatic and high-efficiency sealing machine for Double glazing glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.Single-function parts are equipped with manual functions, easy adjustment.
►Main technical parameter
Max.glass size | 2000*2500mm |
Min.glass size | 300*300mm |
Glass thickness | 12-56mm |
Working speed | 5-40m/min |
Air pressure | 0.5-0.7MPa |
Squeeze pressure | 32MPa |
Overall dimension | 8000*1500*2700mm |
► Feature of insulating glass sealing machine
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine
l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment
l Stepped IG units with four sides (Optional)
l Shaped IG units (Optional)
l Double and Triple IG units
► Detail of insulating glass sealant machine
►►►Electrical parts Showing
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
►►►Tow pump syetem( optional )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
►►►Sealing head showing
Related product
Desiccant Filling Machine LJGZ 2020A
Main feature
• Germany Siemens PLC control system
• Touching screen interface, simple and visible
• The height can be adjusted according to the size of spacer frame
• Using big plastic barrel, save feeding time and improve efficiency
• Protection device for machine head
• Adopt vacuum pump loading device ,increase the loading speed
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
Max frame size | 2000mm*2000nn (2500mm*2500mm) |
Min frame size | 300mm*250mm |
Aluminum specifications | 6A - 27A |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.5KW |
Molecular sieve diameter needed | 0.5-0.8mm |
Dimension | 1650mm*1100mm*3600mm |
