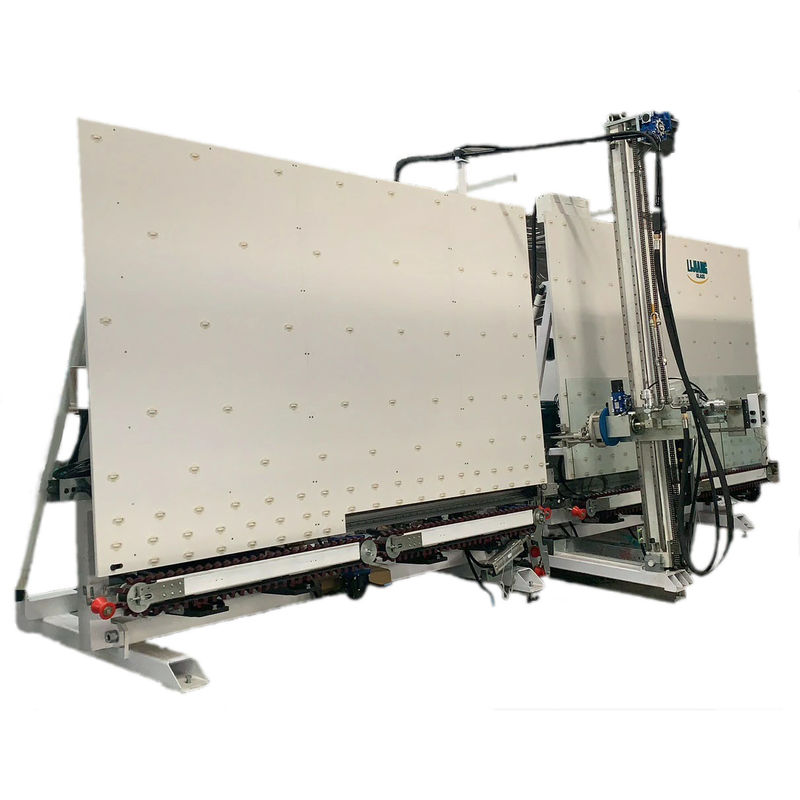

Vertical Insulating Glass Processing 5m/Min Sealant Extruder

Vertical Insulating Glass Processing 5m/Min Sealant Extruder
Vertical Insulating Glass Processing 5m/Min Sealant Extruder Vertical Insulating Glass Processing 5m/Min Sealant Extruder

Large Image :  Vertical Insulating Glass Processing 5m/Min Sealant Extruder

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 60000 - 70000 per set
Packaging Details: 40HQ container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Vertical Insulating Glass Processing 5m/Min Sealant Extruder

Description
Product Name: Automatic Sealing Robot Voltage: 380V 50Hz 3P
Warranty: 1 Year Application: Second Sealants Sealing Machine
Max Glass Size: 2500mm*3500mm Min Glass Size: 280mm*400mm
Glass Thickness: 50mm Condition: New
High Light:

5m/Min sealant dispensing equipment

,

Vertical sealant dispensing machine

Vertical Insulating Glass Sealing Robot Can coat many shaped glass used for insulating glass processing

Main  features of  Insulating Glass Sealing Robot



1.Silicone sealant spreading machine is equipped with Yaskawa servo motor, servo control system and touch screen, which is more convenient and intuitive for operation, real-time display of technical parameters, simple and intuitive, stable and efficient.

2. Silicone sealant  extruder machine can be used by connecting or stand-alone.

3. The transmission is divided into four sections. The glass can be pre-stored, which can effectively reduce the waiting time of the glass and effectively improve the efficiency

4. Automatic identification of glass size, automatic detection of glue depth and automatic adjustment of glue application speed

5. Automatic memory function.

6. The glass corners are full without bubbles, and the glue output is controlled accurately.

7. Synchronous belt drive to ensure smooth glass transportation and accurate positioning

8. It can seal triple , double IG units, shaped and f4-sided step glass

9. The machining center of parts is highly standardized, which can achieve interchangeability, improve the convenience of maintenance, and ensure the long-term stable use of the equipment;

10. The conveyor wheel with back plate adopts inlay design, making the glass run more smoothly;

11. The glass support module on the conveyor belt adopts the replaceable V-shaped block, which is simple and convenient to replace after wear and low cost;

12. Support two different sealants gluing, with a easy operation.

13. The glue mixing system adopts the anti blocking structure, which is easy to clean.



Details of  sealant dispending machine



• 4 sections, can storage glass

• Japan Yaskawa servo system control,full automatic and high-efficiency sealing machine

•Automatically repair glass corners with scraper and roller

• Adopt timing belt, smooth transfer and accurate position

• Can coat double glass

• Shape glass with optional edges, step glass, triple glass (Optional)

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation



• One set of booster pump controls two groups of sealants (Optional)

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• With code scanning function (Optional)

• Can be connected with insulating glass processing line

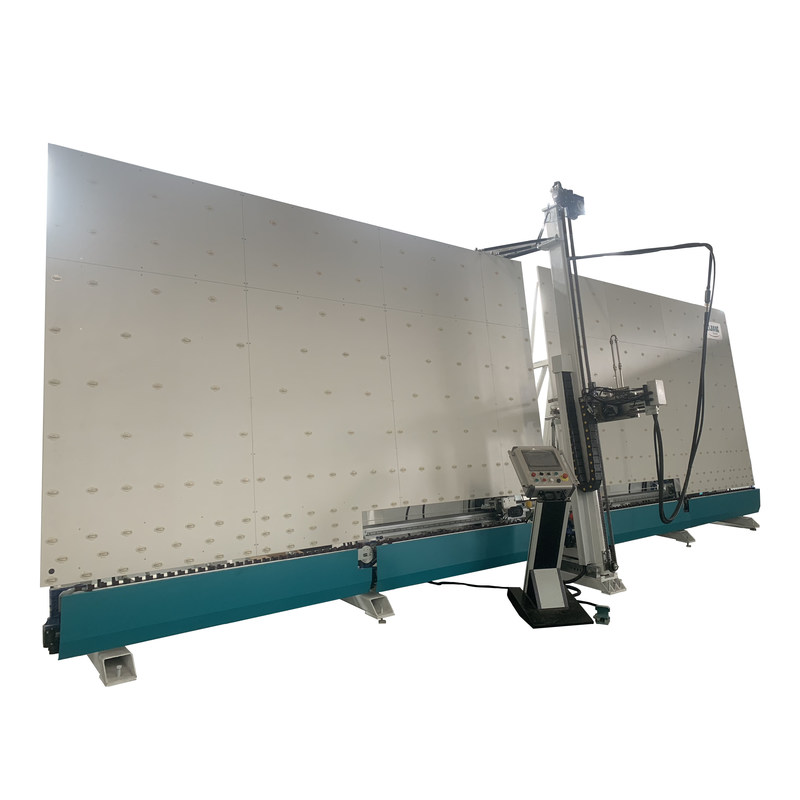

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 0

Two sealing system : double sealing pumps with two pump A and two pump B, two sets of glue mixers, one set of glue nozzle. When you change the different sealants, the first sealant. should be flushed clean with the second sealant.



Tech Specification



Max. glass size 2500*4000mm
Min. glass size 400*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 15kw
Overall dimension 11000*2000*3500mm

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 1

Related production



Rotated Sealant Spreading Table LJSK02

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 2

Main feature

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data



Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 1500*1500mm
Dimension 600*550*985mm



Vertical Insulating Glass Processing 5m/Min Sealant Extruder 3

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 4

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 5

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 6

Vertical Insulating Glass Processing 5m/Min Sealant Extruder 7
