Product Details:
|
| Name: | Automatic Warm Spacer Bending Machine | Max. Bending Size: | 2000mm*2000mm |
|---|---|---|---|
| Min. Bending Size: | 250mm*200mm | Aluminum Spacer Width: | 5.5-27mm |
| Dimensional Error: | ±0.5mm | Angle Error: | ±1º |
| High Light: | ±0.5mm spacer bar bending machine,Continuous bending glass machine |
||

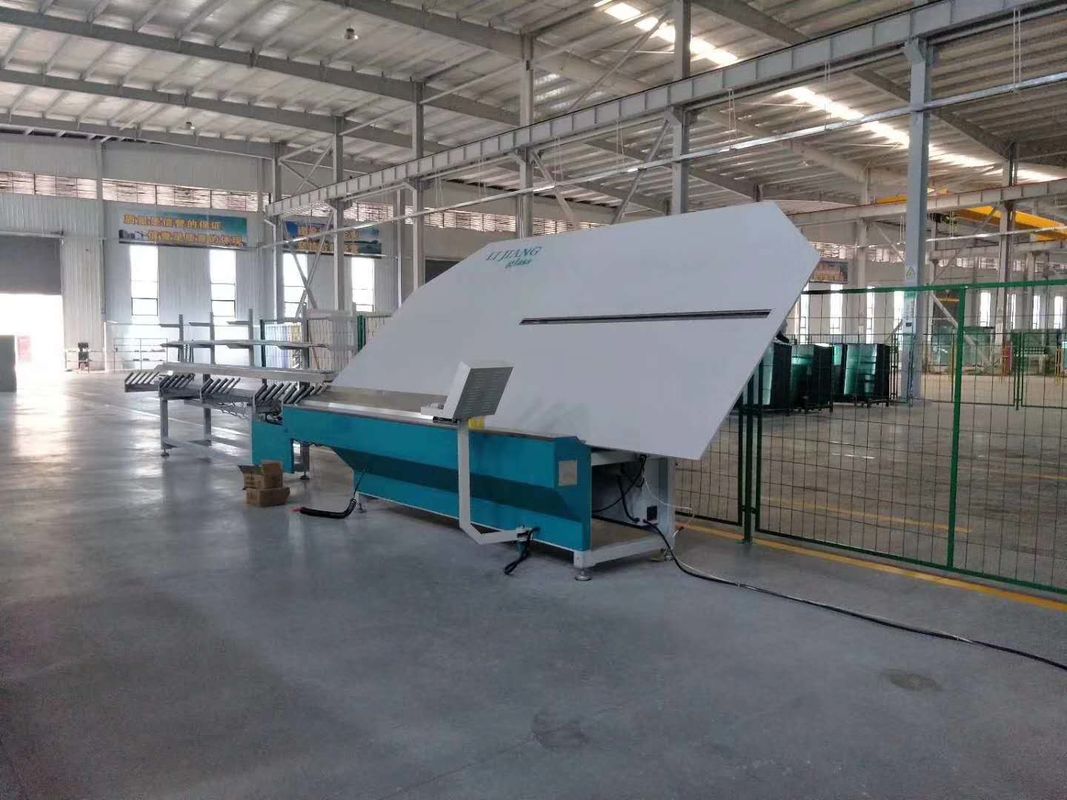

Automatic Warm Spacer Bending Machine Japan FUJI CNC servo control system
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |

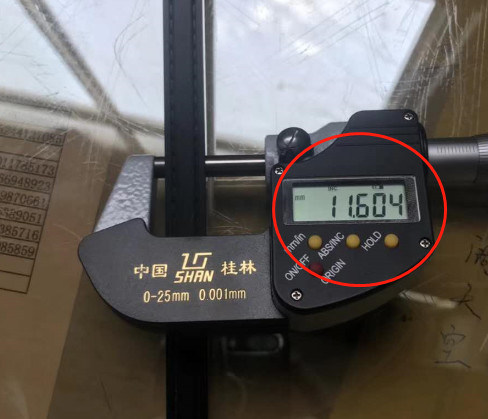

| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development,
sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very
convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from
famous experts, establishing the research and development centers, cooperating with domestic and foreign
well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North
Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and
other well-known enterprises. Since the establishment of the company, our products have been exported to
Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.
At the same time, our company worked with the well-known domestic research institutes, such as the North
China Industrial Group, Shandong University and others, to constantly improve the level of technical research.
So far, we have independently produced the vertical automatic IG production line with filling gas on line, the
vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and
the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading
level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for
win-win situation and jointly creating a new world.
