Screw Pressing On Line Filling 60mm Double Glazing Equipment

Screw Pressing On Line Filling 60mm Double Glazing Equipment
Screw Pressing On Line Filling 60mm Double Glazing Equipment Screw Pressing On Line Filling 60mm Double Glazing Equipment Screw Pressing On Line Filling 60mm Double Glazing Equipment Screw Pressing On Line Filling 60mm Double Glazing Equipment

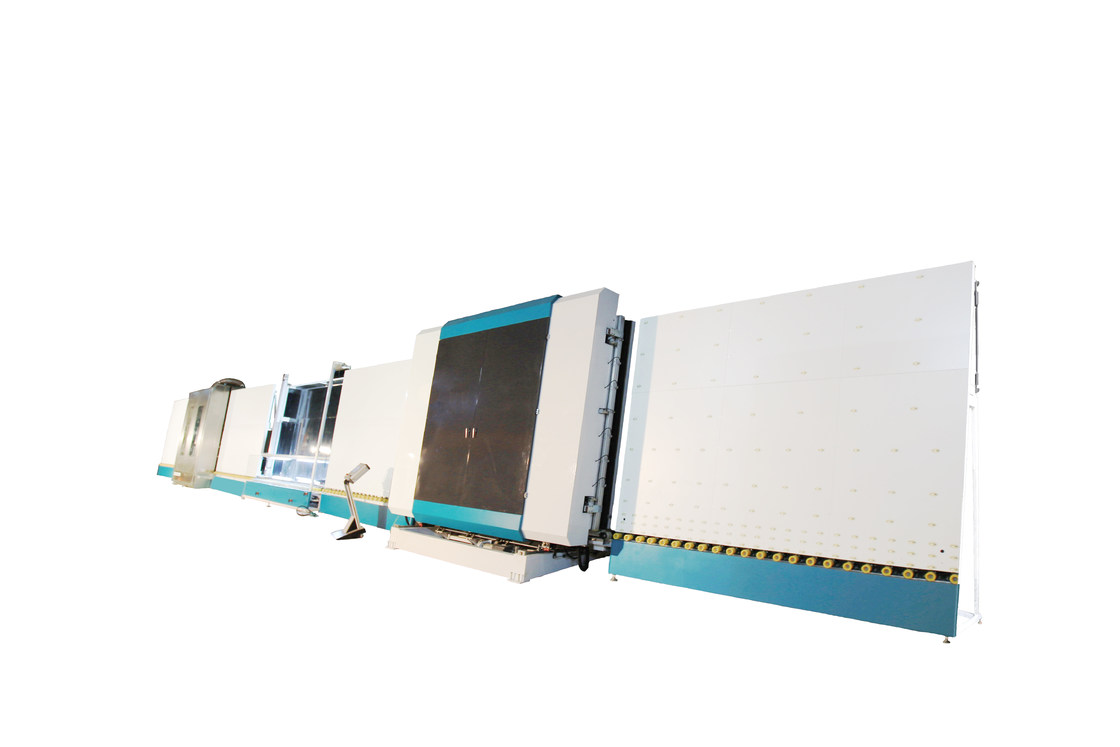

Large Image :  Screw Pressing On Line Filling 60mm Double Glazing Equipment

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 130000 - 150000 per set
Packaging Details: 3 Containers
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Screw Pressing On Line Filling 60mm Double Glazing Equipment

Description
Production Name: Double Glazing Glass Processing Line Max Glass Size: 2500mm*3500mm
Min Glass Size: 280mm*400mm Glass Thickness: 3 - 15mm
Pressing Technology: By Screw And Servo Gas Filling Technology: Follow Sealing
Warranty: 1 Year
High Light:

60mm double glazing machine

,

Filling 60mm glass manufacturing equipment

The Shadow Follow Gas Filling Double Glazing Glass Production Line With Screw Pressing



Product Introduction :

LJBZ2535G double glazing glass production line is mainly applicable to the production of double glazing glass, triple glazing glass and step glass. It can realize on-line gas filling and automatic detection of argon content. It can press two insulating glass at the same time for the glass below 1.5m, and realize the function of two insulating glass filling argon gas at the same time. Other special sizes and requirements can be customized according to the specific requirements of customers. This new IG line uses air floating technology to transfer glass by air holes instead of transfer wheels.

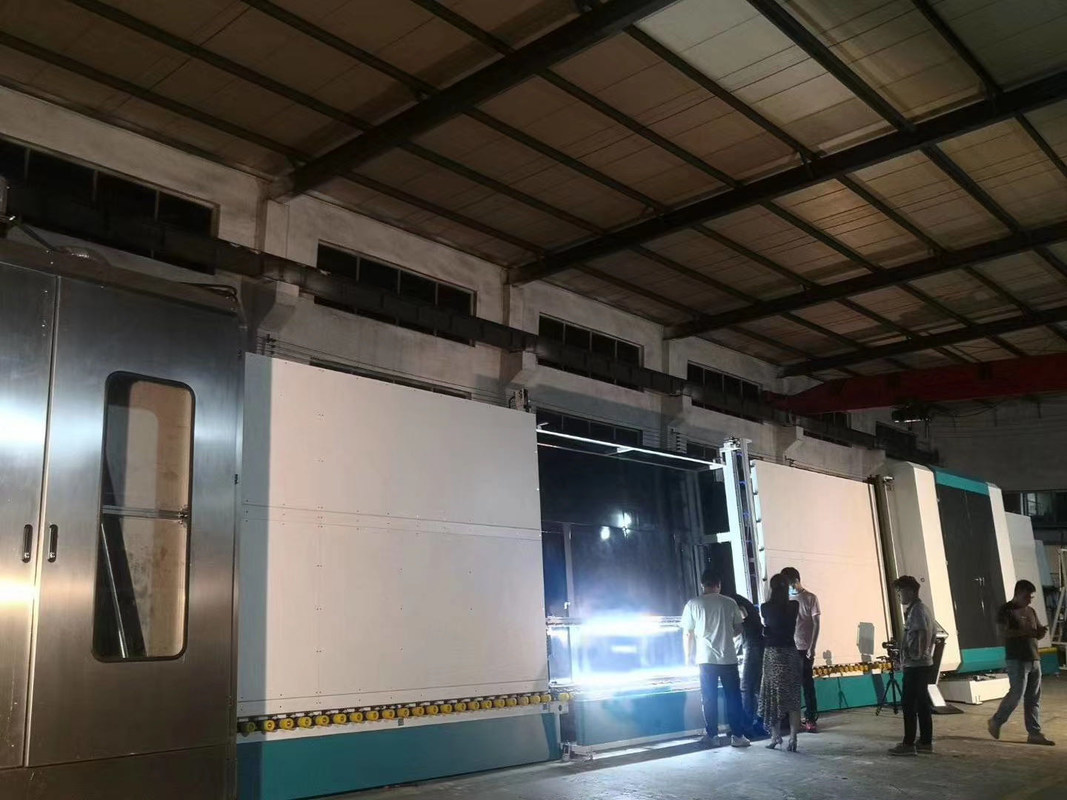

Screw Pressing On Line Filling 60mm Double Glazing Equipment 0

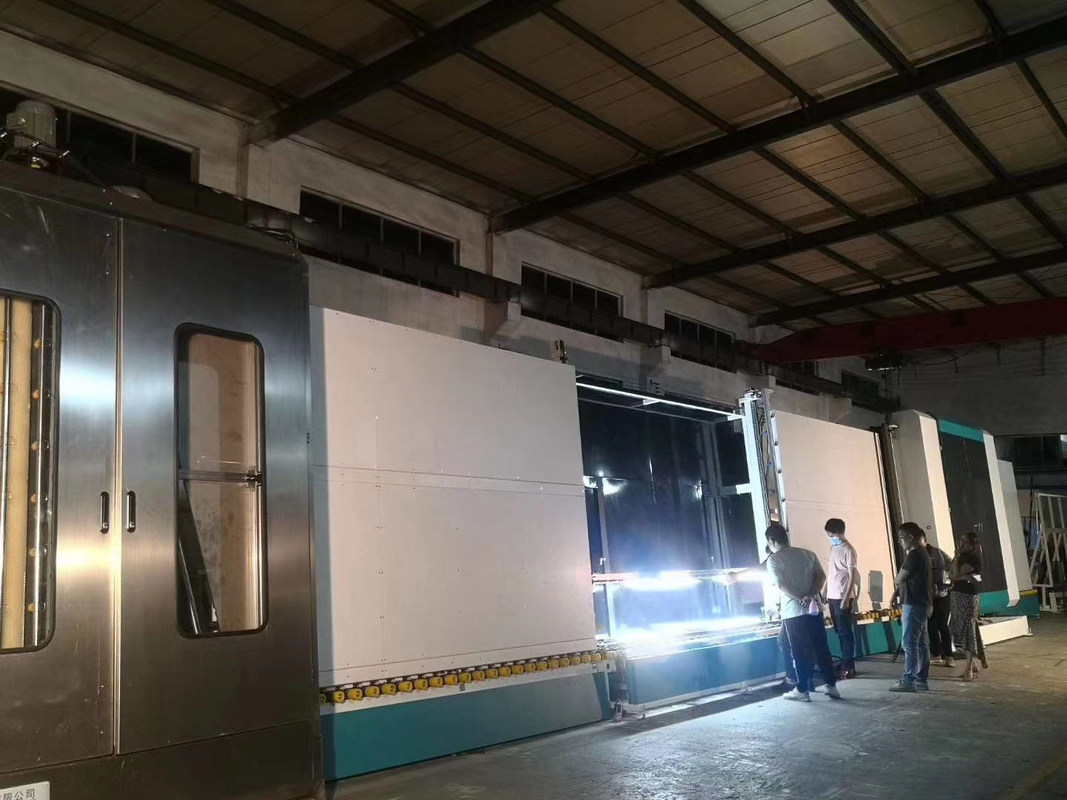

Screw Pressing On Line Filling 60mm Double Glazing Equipment 1

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Main Features:

• The line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

• PLC control system, touch screen interface

• Using Siemens servo motors

• Applicable to produce double glass, triple glass



Optional functions:

• Step glass with optional edges

• Shaped glass

• Filling argon gas automatically

• Air-floating technology to transfer glass

To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.



• Pressing and filling 2 pieces of IG units, totally 8 sections



Main Features

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)

• From transfer part to pressing part, each part is divided

• Suitable for mass production in a factory. Ultra-fast speed



Details introduce of the LJBZ2535G

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

02 washing machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



03 discharge section

• Storage glass



04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

06 pressing and filling section



Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen





• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine
