Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine

Large Image : Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine

Product Details:

Place of Origin:	China
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJSCLM

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable,
Packaging Details:	wooden case or container
Delivery Time:	60days
Payment Terms:	L/C, T/T
Supply Ability:	10set/month

Contact Now

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine

Description

Name:

CNC Automatic Glass Cutting Machine Glass Cutting Line

Advantage:

CNC Control

Function:

Loading Breaking And Cutting

Type:

CNC Glass Cutting Machine

High Light:

±0.20mm/M cnc glass cutting table

CNC tempered glass cutting machine

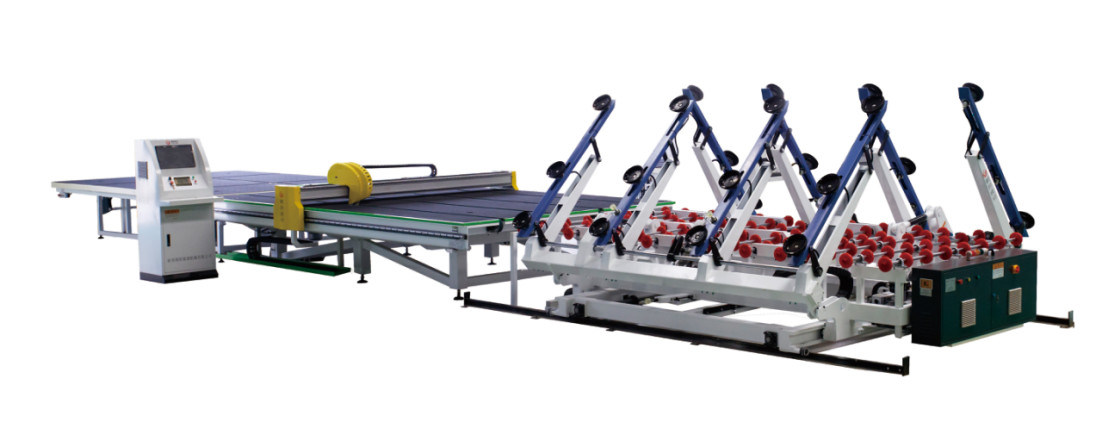

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line and Cantilever crane

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 0

LJSCLM CNC Automatic Glass Cutting Machine glass cutting Line has been comprehensively upgraded by means of introduction of European leading technology, world newest tech and process to eliminate the insufficient performances, incomplete functions and unstable operation from domestic glass loader, moreover,through the precise racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term stable accuracy and fast running with the newest American Galil control system, it features even faster operation, higher safety, higher efficiency, more stability and better accuracy: with the photoelectric positioning, it facilitates the simple and precise operation and prominent labor saving

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 1

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 2

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 3

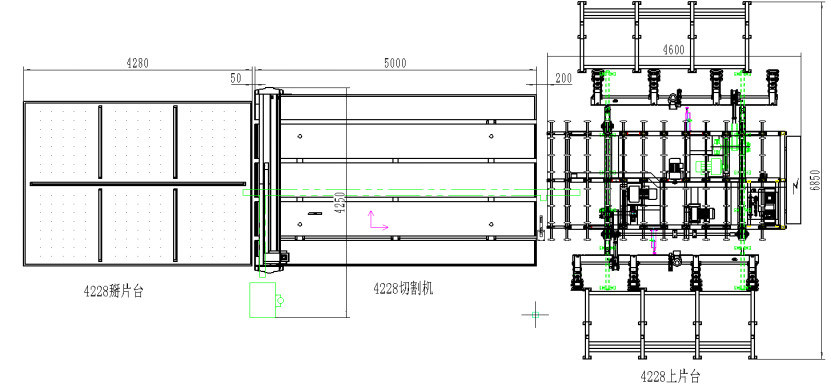

LJSCLM CNC Glass Cutting Machine

Technical data

Max. glass cutting size	2800*4200mm
Glass thickness	2-255mm
Cutting speed(m/min)	0-200
Accurcy(mm/m)	≤±0.20
Breaking bar(pcs)	1+2
Total power	3P 380V 50Hz
Dimension	Dimensions :14200x3750x900 ±20mm
Total weight	3700KG

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 4

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 5

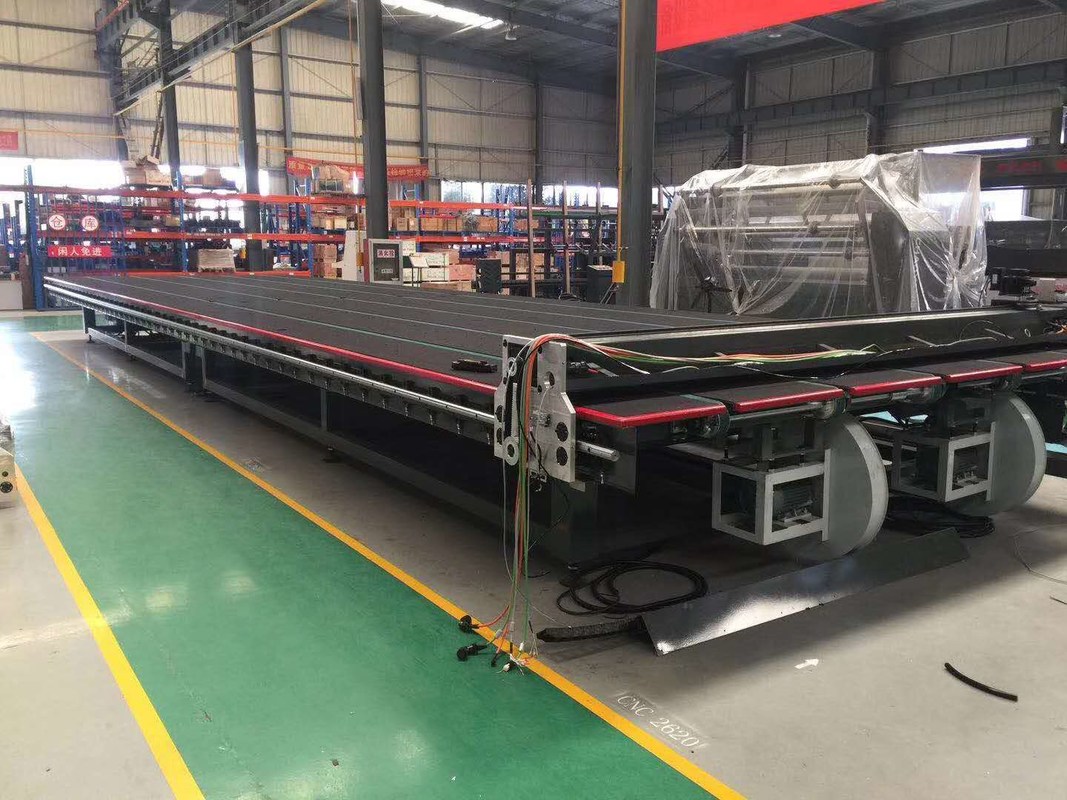

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for installation

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 6

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for working in our customer's workshop

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 7

Cantilever crane

1. This vacuum glass lifter is for handling insulating glass sheet.

2. This glass lifter is able to lift the glass sheet with 800kg

3. It is equip with 5 suckers. But the sucker can be add according to need of the client.

4. The equipment is Stable, Easy to use and safe.

5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

			Parameter:

						Safety-absorption
						200KG/400kg/600kg/800kg

						Performance
						Rotation 0-90 degree and lifting 600-1200mm

						Quantity and size of sucker
						2/4/6/8

						Working gas source
						5-8 Pa

						Outer size
						L 1120xW660XH620mm

						Net weight
						550kg

Useing For

- Insulating Glass Production line,

- Installing Glass Curtain Wall System,

- Loading and Unloading glass sheet on glass cutting table,

- Instaling car windscreen.
Edge finish machine LJKBM95
Main feature
It is used for polishing single glass, to prevent to hurt workman from sharp glass edge
It adopts type of ‘x’ to polish the up and down edge at the same time
Easy operating, simple and flexible

Technical data

			Power supply
			380V 50Hz

			Total power
			3kw

			Dimension
			2000*1200*820mm

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 12

Intelligent High Speed ±0.20mm/M CNC Glass Cutting Machine 13

Lijiang-Glass specializes in R&D,Founded in 2009, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions.We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.
