Product Details:
|
| Production Name: | Auxiliary Machines For Making Double Glazing Glass | Machine Brand: | LIJIANG GLASS |
|---|---|---|---|
| Machines: | New | Warranty: | 1 Year |
| Size: | 3500*2500mm | Service: | Engineers |
| High Light: | Auxiliary gas filling machine,Transfer glass production line |
||
Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically
• Can set and display the data of gas value
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
Manual Gas filling machine LJCJ02
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
Freezer LJSGF01
Main feature
• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass
• Storing at low temperature,to prevent sealant solidify
• Apply to polysulfide and silicone
• Can be effectively reduced waste when cleaning the glue
Technical data
| Max refrigerating temperature | 70ºC |
| Min heating temperature | -40ºC |
| Total power | 3.8kw |
| Refrigerating | <150min |
| Overall dimension | 1550*60*1300mm |

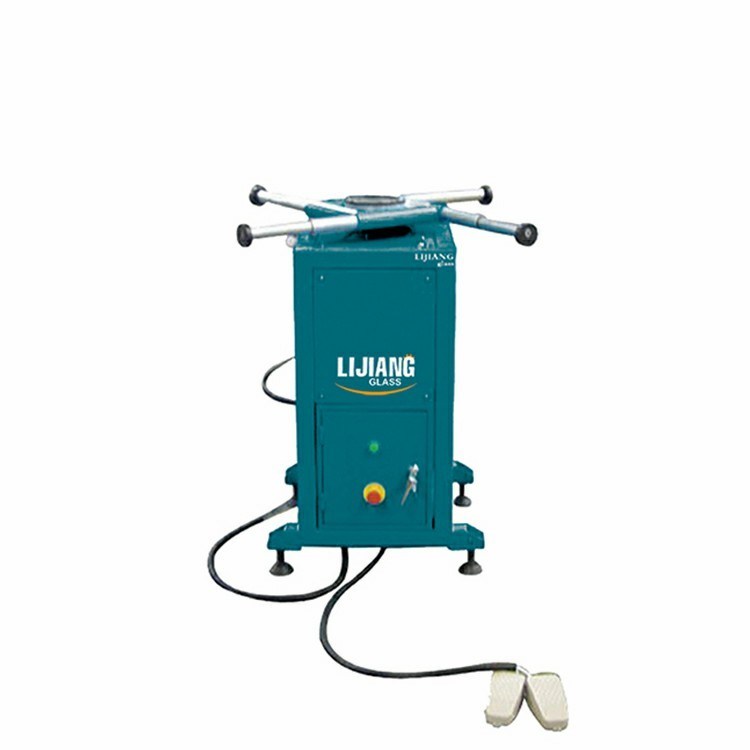

Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Spacer trip cutting machine LJQJ 02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers, keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
Molecular sieve filling machine LJFGJ 03
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |

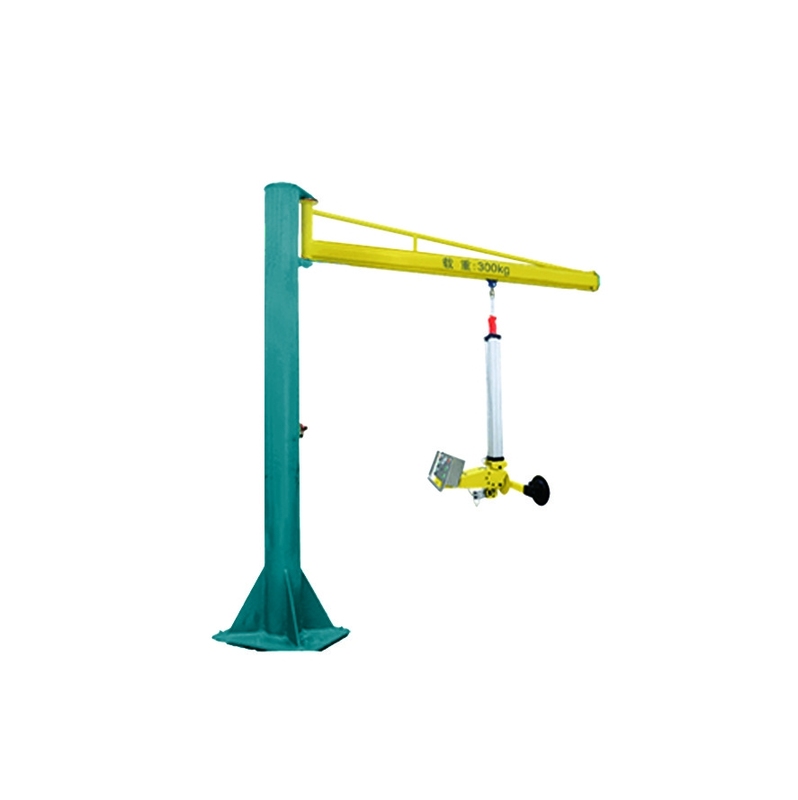

Cantilever crane LJXJ300
Technical data
| Max. load | 300kg (500kg is optional) |
| Rotated angle | 90° |
| Upright height | 3400mm or 3900mm |
| Rail length | 1000mm |
| Quantity of sucker | 2 or 4 |
| Air pressure | 0.5MPa-0.8MPa |

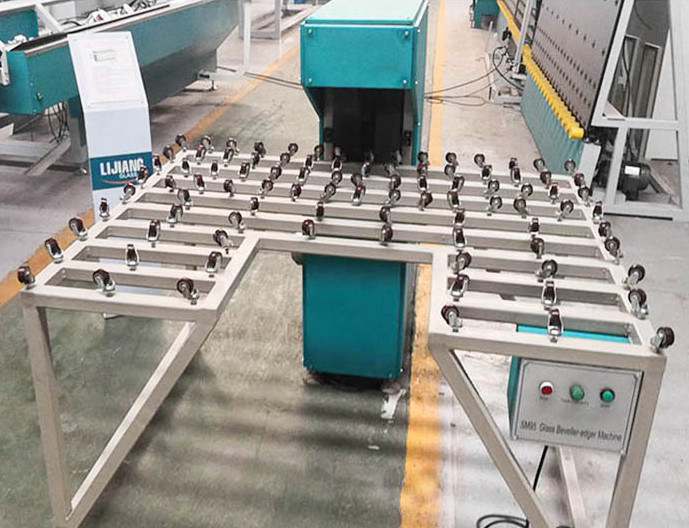

Edge finish machine LJKBM95
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
Description:
`● It abopts advanced front beam lifting system,the lifting screw in pure copper is control by motor,synchronize with 45°quenched dovetail carriage,to ensure high precision.
| Max.Glass size | 2500×2500mm |
| Min.Glass size | 25×25mm |
| Glass thickness | 3-19mm |
| Transmissinon speed | 0.5-6m/min |
| Max.Hypotenuse width | 45mm |
| Bevel angle | 0~45° |
| Power | 27KW |
| Weight | 5000kg |
| Land occupation | 7500×1000×2500mm |
| glass diagonal error | ≤0.5mm/m |
| Power | 380V/50HZ |
| S.N. | Name | Configuration date | |
| 1 |
The material of the |
Material | Cast Iron |
| Model No. | HT250 | ||
| Thickness | Pedestal 25mm,front & rear crossbeam 30mm, | ||||
| 2 |
Grinding motors |
Supplier | Shanghai ABB company | ||
| Model No. | QAMT80L2B-2.2kw/ QAMT80L2B-1.5kw | ||||
| 3 |
Step-less reducer |
Supplier | XG-TRANSMISSION Machinery Co., Ltd | ||
| Model No. | BLY1-17-2.2 | ||||
| 4 |
Worm reducer |
Supplier | ZHUJIANG REDUCTION GEAR CO.,LTD | ||
| Model No. | WPR00125-20 | ||||
| 5 |
Transmission pads |
Supplier | Foshan Shunde Longjiang Rongshenglong | ||
| Model No. | 55°High-frequency hardening | ||||
| 6 | Transmission train | Supplier | Hangzhou Donghua Chain Group Co.,Ltd. | ||
| Model No. | |||||
| 7 | Gears | Supplier | Foshan Shunde Zhongmin Gear Co.,Ltd | ||
| Model No. | 6-15Z 6-17Z two 6-22Z | ||||
| 8 | Bearing | Supplier | Harbin Bearing Group Corp. | ||
| Model No. | P204/F204/6203/6206/6008/51102/51105 |
| Electric Parts: | |||
| NO. | |||
| 1 | PLC | Supplier | Siemens Electric |
| 2 | display screen | Supplier | Siemens Electric |
|
3 |
AC contactor |
Supplier | Schneider Electric |
| Model | CJX2-0901/CJX2-0910 | ||
|
4 |
Overload relay |
Supplier | Schneider Electric |
| Model | JRS1-09-25/Z | ||
|
5 |
Transformer |
Supplier | Schneider Electric |
| Model | NDK(BK)-250 | ||
|
6 |
Circuit breaker |
Supplier | Schneider Electric |
| Model | NM10-100/330 DZ-47/60 | ||
|
7 |
Ammeter/Voltmeter |
Supplier | CHINT electric |
| Model | 6L2-A 6L2-C | ||
| 8 | Button/light | Supplier | Shanghai Electric |
CGX371SJ Wheels placement
|
Grinding head
name data |
Grindin g head 1# rough grinding |
Grindin g head 2# rough grinding |
Grindin g head 3# rough grinding |
Grindi ng head 4# fine grinding |
Grindin g head 5# fine grinding |
Grindin g head 6# fine grinding |
Grinding head 7# fine grinding |
Grinding head 8# polishing |
Grindin g head 9# polishing |
Grindin g head 10# polishing |
Grindi ng head 11# polishing |
|
|
moto r |
Power (KW) |
2.2 |
2.2 |
2．2 | 2．2 | 2．2 | 2．2 |
2.2 |
2．2 | 1．5 | 1．5 |
1.5 |
| Speed | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 1400 | 1400 | 1400 | |
|
Spec (mm) |
Ф150×2 2 100 mesh |
Ф150× 22 240 mesh |
Ф150×2 2 180 mesh |
Ф150× 22 |
Ф150× 22 |
Ф150×2 2 |
Ф150× 22 |
Ф150×2 2 |
Φ150 |
Φ150 |
Ф150 |
|
|
Name |
Diamon d wheel | Diamon d wheel | Diamon d wheel |
PE Wheel |
Resin wheel | Resin wheel | Resin wheel |
10S60 Polishing wheel |
Felt wheel | Felt wheel | Felt wheel | |
| From | China | China | China | China | China | China | China | Import | Import | Import | Import | |
