Product Details:
|
Production Name: | Glass Cutting Machine | Machine Size: | 2800mm*4200mm |
---|---|---|---|
Glass Thickness: | 3 - 15mm | Loading Table: | Yes |
Cutting Table: | Yes | Warranty: | 1 Year |
Breaking Table: | Yes | ||
High Light: | 0.08% glass cutting table machine,Suckers cnc glass cutter |

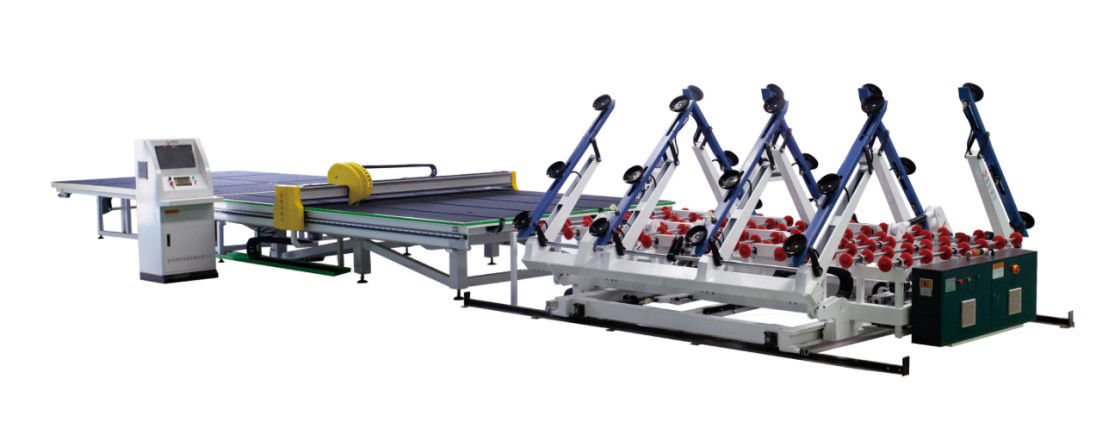

CNC Glass Cutting Machine With Cutting Table And Glass Suckers
Hoisting requirements:
With two parallel steel wire rope hanging on the eyebolt, shall not be skewed, keep the table level slowly and lightly, and prevent squeezing and impacting by other objects.
Steel wire rope, diameter:12-14mm, length: 3.5m-4m/pcs.
Number | Name | Type | Number | Notes |
1 | Loading table | YR-28/42 double arms with single position | 1pcs | |
2 | Cutting table | YR-CNC28/42 | 1pcs | |
3 | Breaking table | YR-30/42 | 1pcs | |
4 | Rails | 15kg/m | 3.8m*2pcs | |
5 | Position chain trunk | YR-SPT28/42-072 | 1pcs | |
6 | Chain trunk | YR-SPT28/42-097 | 1sets | |
7 | Three-way trunk | YR-SPT28/42-098 | 1sets | |
8 | Cable trunk | YR-SPT28/42-099 | 1sets | |
9 | Electrical cabinet cable cover | YR-SPT28/42-099 | 1pcs | |
10 | Rail welding | YR-SPT28/42-094 | 2pcs | |
11 | Y limited fitting | YR-SPT28/42-0986 | 3pcs | According to the site position |
Technical requirements:
1. Rail surface is level, straightness accuracy≤0.08%
2. Loading table height is 5-7mm higher than CNC cutting table.
3. Loading table Y axis limited fitting ensure the position when the loading table stopped.
4. Cables are collected tidy in the trunk, exposed cable should be covered with guard tube.
5. Compressed air is dry pure air, 0.5-0.6Mpa, input air tube is 4 ways from main air tube to the
machine, changed into diameter 10mm PU tube to FRL.
6. Glass rack should be in the middle part of the turning arms, and fixed
7. The electrical cabinet position adjusted according to the site.
8. Electrical cabinet power:380V 50HZ, wire diameter 3*10+1*6
9. Setscrew:M10*80 Total:70pcs
setscrew for rail: 28pcs, for CNC table: 8pcs, for Loading table limited position: 6pcs, for
trunk: 14pcs, for tracing edge device: 4pcs, for screen frame:4pcs, for chain trunk: 6pcs.
10. Safety operation, maintenance, instruction training after installation.

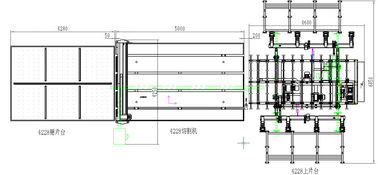

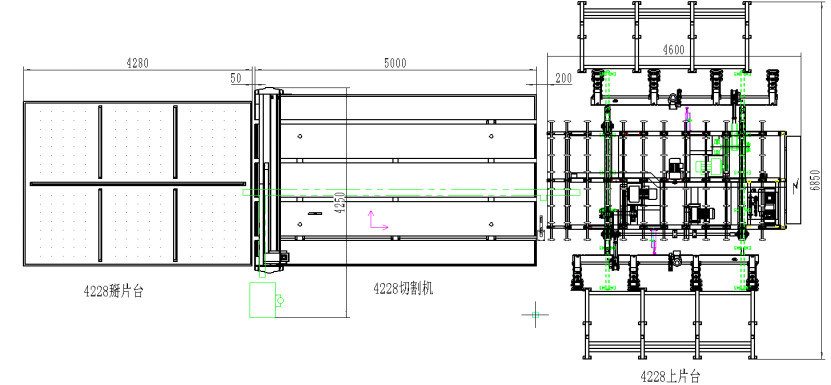

11. This layout drawing was reserved by client after training.
YR-4228 DOUBLE ARMS DOUBLE POSITIONS LOADING MACHINE
1.1 Equipment composition :
1)Equipment main frame/equipment work system/equipment transport system/vacuum suck system/machine overturn system/high & low pressure system/program control system
1.2 Machine configuration:
1)Overturn sprocket & chain :special high accuracy strengthen
2)Transport trolley: import PU material
3)Vacuum sucker: import material (double suck function)
4)Vacuum pump: China & German joint venture PUXU
1.3 Electric original
1)PLC controller: DELTA
2)Tranducer: DELTA
3)Approach switch: Switzerland ELCO
4)Control cable: flexible shield cable
5)Controller: Schneider
6)Pneumatic original: Taiwan Airtac
7)Positive & negative pressure sensor: Japan SMC
1.4 Technology parameters
1)loading glass size limits: minimum size 1500*1500mm (only left)
maximum size 4200*2800mm
2)loading glass thickness: 3~19mm
3)loading glass cycle: 40-90 minutes 9(adjustable)
4)transport speed: 0~40m/min(adjustable)
5)maximum suck glass depth: 700mm
6)maximum loading glass weight: 900KG
7)single side loading glass arm number: 6
8)single arm sucker number : 3
9)loading overturn arm: 2
10) loading glass position: 2positions
11) power source& power: V/ HZ
12) install power: 8KW
13) compress air: 0.3Mpa
14)vacuum pressure: -70~ -90Kpa (adjustable)
Technology information
2.1: Machine summarize
1)Automatic glass loading machine is an equipment that can suck glass from the glass shelf and turn to the level table and transport to cutting machine or any other working place.
2): Vacuum system use famous brand vacuum pump, and increase stability and safety of the equipment largely. All the work processes are controlled by the PLC.
2.2: Technology describer
1)overturn mode: mechanical overturn, high speed, work stable, no shake
2)overturn angle : 95-98(adjustable)
3)suck glass depth: sucker can be stretch 300mm, and fulfill 700 loading glass depth
4)induction system: use two sets of glass photo electric inductor, more safe and stable.
5)lifting device: special connecting rod lifting device
6)suck device: use advance double layer suck conduction.
7)sucker control: every sucker can be controlled by the air valve, you choose the sucker work number freely.
8)lifting wrong glass protect : can protect the wrong glass when you meet the little or broken glass.
9)alarm device: have auto check and red, green lamp alarm device.
10)control mode: automatic mode and manual mode
11)control interface: Chinese and English display, liquid crystal display
12)parameter set : the glass loading sequence and number can be set automatically, and can link with cutting machine to achieve the full automatic function without interrupt, don’t need repeat set. More convenient and quickly
Ⅱ, YR-4228 AUTOMATIC GLASS CUTTING MACHINE (China & Italy joint venture)
1, Equipment standard:
The cutting glass maximum size: 4200*2800mm
The height of the machine: 900±50mm.
The weight of the machine: 3.8T.
The cutting thickness: 3~19mm
2, Cutting parameters
Straight line depth of parallelism: ≤±0.25mm/m
Diagonal accuracy: ≤±0.30mm/m
Cutting bridge speed: 0~180m/min (adjustable)
Cutting bridge acceleration: 3.0m/s²
Tool bit shelf speed: 160m/min
Tool bit shelf acceleration: 6.0m/s²
Belt transport speed: 40m/min
Cutting head location accuracy error: ≤±0.2 mm
3, Power source /power
Install power source: V/ HZ
Equipment actual power: 8KW
Compress air:0.6PA
4, Equipment performance
Equipment frame: guarantee accuracy and no deformation
Equipment tool apron: tool bit can spin 360 degree.
Machine surface: use import waterproof board.
Felt: import industrial felt(fibre & wool component)
Oil supply mode: automatic pneumatic supply, synchronism with tool bit.
Transport mode: automatic belt transportation
5, Machine part
Table board: import waterproof and fireproof board
Rack : Japan KHK
Transport belt/belt wheel: Italy Bredbury
Cutting wheel: German Bohle
6,Electric appliance
Use industrial personal computer to control, Microsoft windows interface
Voltage: 415V/50HZ , have voltage stabilizer
Motor : Japan YASKAWA Sever motor
Approach switch: Switzerland ELCO
Main electric appliance original: Japan IZUMI & SCHNEIDER
Pneumatic proportional valve: Japan SMC
7,Software
Italy import cutting software & optimization software (Italy OPTIMA)
Optimization software & produce management software can be used together
Have plunge cut limit protect function
Count production amount function
Have 1500 kinds of figure storage (convenient for drawing and controlling)
AUTO CAD paint software can be compatible use
Optimization software can be used directly with cutting software
Have automatic correction function, guarantee cutting accuracy
Cutting path choose function, guarantee reach the fastest cutting speed
Heteromorphism cutting , automatic inflating, can guarantee cutting result quickly and effectively.
Origin addition and correction function, can set origin twice
Control input: keyboard and mouse, Chinese & English interface
Have heteromorphism cutting knife pressure automatic mediate function, guarantee cutting best result
Heteromorphism template scanning: scan different kinds of figure include heteromorphism point by point, and transform them to CAM figure
Optimization software: can combine and arrange any kinds of cutting size,output best cutting program, increase cutting rate, and also have manual software amend after optimization, increase cutting use ratio effectively
Optimize pressure and cutting speed: according to figure, straight line, arc, incurve, excurvature origin & finish , acceleration part, deceleration part and so forth , optimize, mediate and out most suitable pressure and speed.
Heteromorphism storage: more than 300 kinds of heteromorphism storage, this one can fulfill all the possible demand
Heteromorphism optimization: heteromorphism in the storage can be changed the size,spined freely, moved any direction, combined freely according order
Drill location function: in heteromorphism storage supply drill pre-install function.
Tool bit protect function: mechanical protection function, avoid any crash possibility.
Heteromorphism cutting: equipment can cutting any straight line, oblique line or heteromorphism
Belt transport: motor drive the belt directly, transport the cut glass to the glass breaking machine.
Route protection: the maximum route of the equipment have double protection of machine and electric
Cutting pressure mediate function: all pressure can be mediate by keyboard
8, Append film removing function
9, Use transparent oil container
Ⅲ, YR-4228 AIR CUSHION BREAKING MACHINE
1,Technology parameter
1.1 Table-board standard: 4200×2800mm
1.2 Table-board height: 910±30mm
1.3 Fan machine amount: 1 sets
2, Main configuration
2.1 Table-board felt: import industrial felt(fibre & wool component)
2.2Table board: import waterproof and fireproof board
2.3Carrier rod: crosswise 2sticks, lengthways 1stick
2.4Air cylinder: Taiwan Airtec
2.5Air machine: Zhujiang
3, Append automatic overturn function: the table can be turned on one side
Ⅳ, Append windows optimization software can be used in personal computer
Random accessory list
No. | Name | Unit | Amount | Remarks |
1 | Optoelectronic switch | set | 2 | |
2 | Tool kit | set | 1 | |
3 | Import knife holder (German) | set |
6 |
|
4 | Approach switch | set | 2 | |
5 | Loading machine sucker | piece | 2 | |
6 | Copper tool apron | set | 2 | |
7 | 694bearing | piece | 4 | |
8 | Gasbag | piece | 1 | |
9 | English operation manual | part | 1 | |
10 | Optima software | set | 1 |
