Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 85000.00 - 90000.00
Packaging Details: 2*40HQ
Delivery Time: 60 work days
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per month

Double Triple Glass Vertical 15mm Insulating Glass Production Line

Description
Product Name: Vertical Insulating Glass Production Line Max. Glass Size: 2500mm*3500mm
Min. Glass Size: 280mm*450mm Glass Thickness: 3-15mm
Insulating Glass Thickness: 60mm Glass Washing Speed: 2-10m/min
High Light:

Triple insulated glass equipment

,

15mm glass production machinery

,

Glass Production Line 10m/min

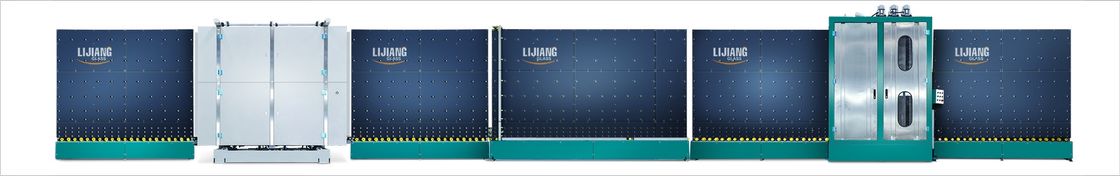

Vertical Insulating Glass Production Line that Applicable to produce double glass, triple glass

Double Triple Glass Vertical 15mm Insulating Glass Production Line 0

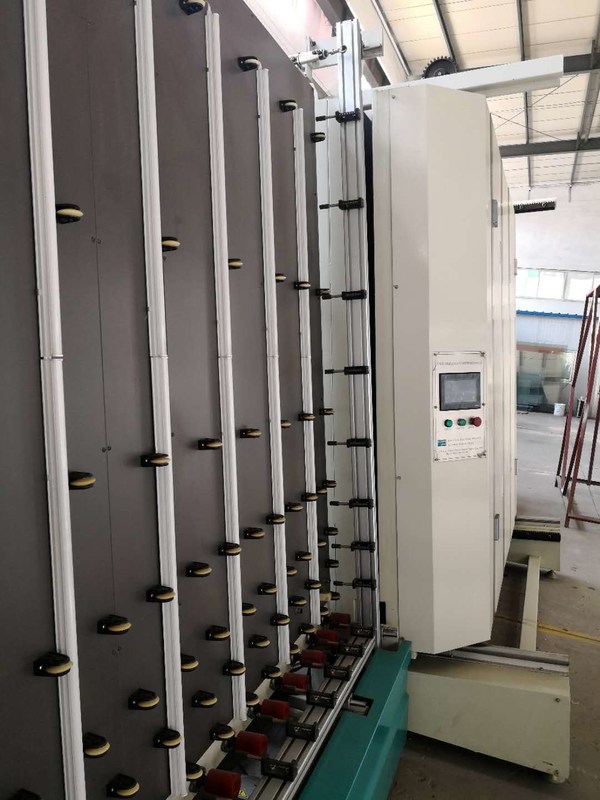

A.The machine adopts Siemens control system with high resolution touch screen. The operator

can modify the working parameters of the production line at any time, and can clearly show the

state of each input and output signal to facilitate the daily maintenance of the machine.



B. The machine is divided into manual and automatic control mode.Each section can be controlled

separately, easy and concise.



C. LJBZ2535G vertical insulating glass production line includes:



  • LJBZ2535G loading section
  • LJBZ2535G washing&drying section
  • LJBZ2535G discharging section
  • LJBZ2535G inspection and frame installation section
  • LJBZ2535G flat press lading section
  • LJBZ2535G glass pressing section
  • LJBZ2535G flat press discharging section.

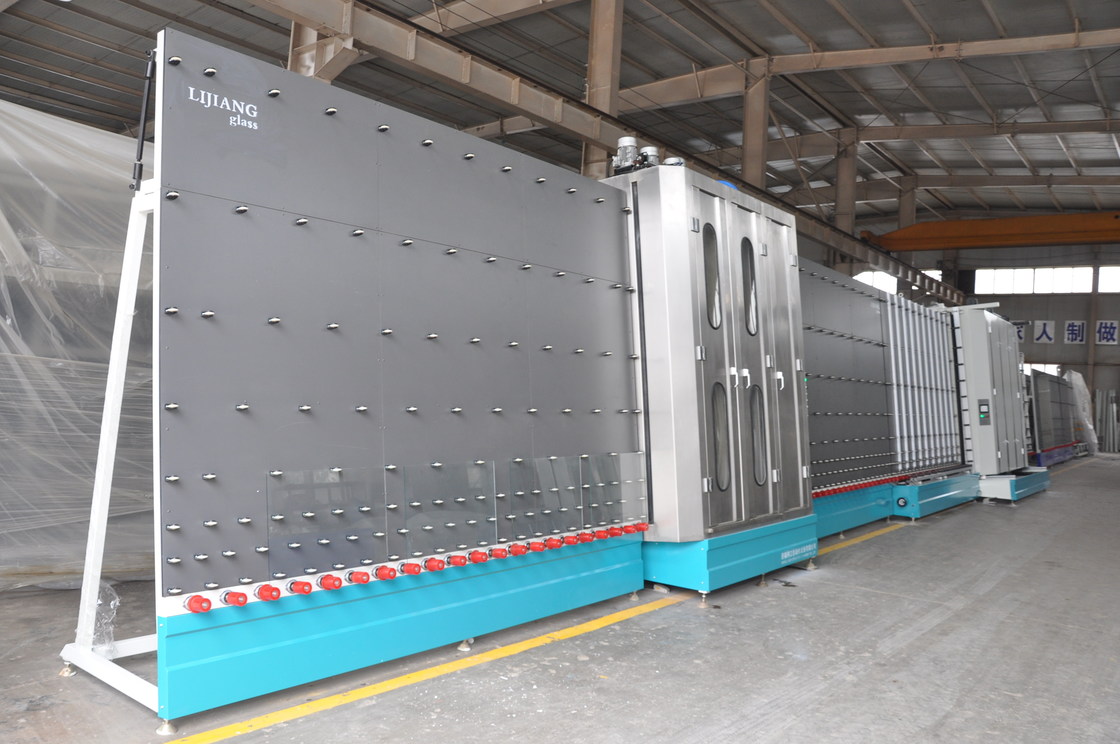

LJBZ2535G loading section is inclined vertical structure. The transmission roller is wear-resistant,

acid and alkali polyamine grease roller, adopting the stepless frequency conversion speed

regulation and the glass can run smoothly at the appropriate speed.The foot switch can according

to the work situation start and stop transmission at any time. The low-e detection and alarm

system can accurately detect whether the coating surface of the coated glass is properly placed.

If not, the buzzer alarm is reported and the transmission is stopped.

Double Triple Glass Vertical 15mm Insulating Glass Production Line 1


Double Triple Glass Vertical 15mm Insulating Glass Production Line 2

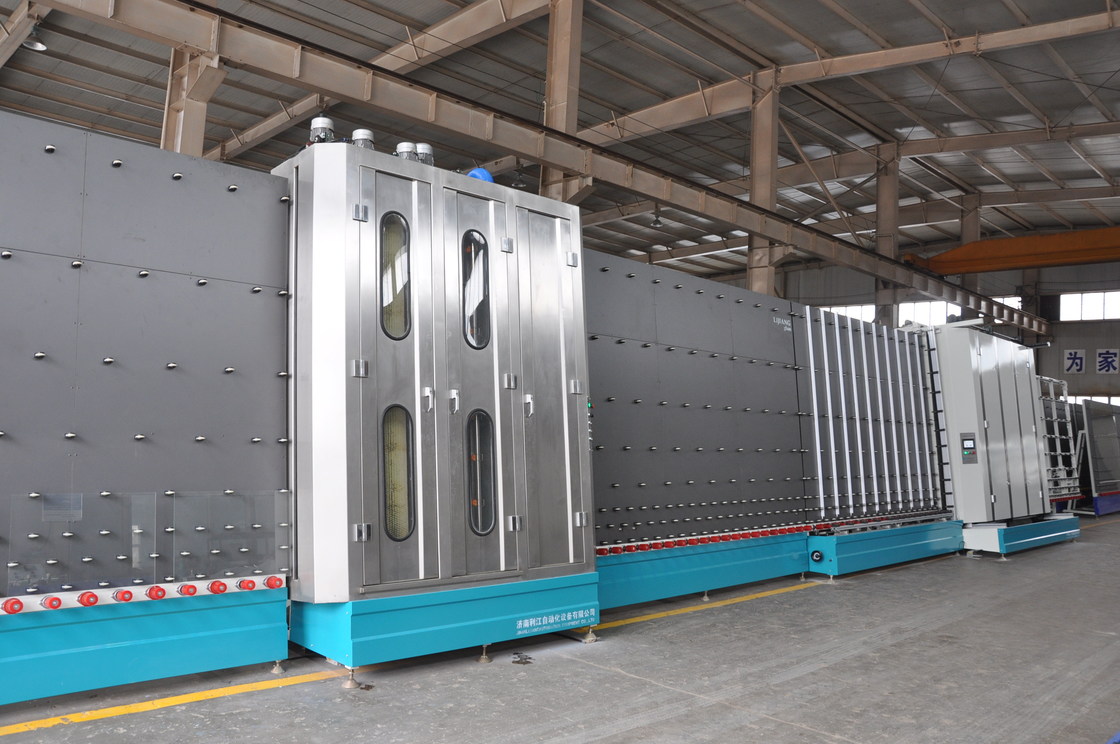

The special structure inside the washing machine can automatically recognize glass thickness.

Allowing different thicknesses of glass to be transferred quickly, increasing production speed.

According to the test, it takes only 22s to produce a 1m*m insulating glass.



1). There is a universal joint device, when the glass thickness was changed, the wind knife will

move forward and backward to adjust the distance so that the relative distance between the

wind knife and the glass is constant, so as to avoid damage to the glass due to the changes

of the glass thickness.



Double Triple Glass Vertical 15mm Insulating Glass Production Line 3



2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass

which can keep a fast speed, not only the large

size, small size glass can also be passed quickly.



Double Triple Glass Vertical 15mm Insulating Glass Production Line 4


Double Triple Glass Vertical 15mm Insulating Glass Production Line 5

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
electric gauge China MIRAN
Photoelectric switch Korea AUTONICS
