Product Details:
|
| Certification: | CE / UL | Voltage: | 380V 50Hz 3P |
|---|---|---|---|
| Condition: | New Machine | Production Name: | Manual Argon Gas Filling Machine |
| Warranty: | 1 Year | Max Glass Size: | 2000mm*2500mm |
| High Light: | Manual argon gas filling equipment,Glass argon filling machine |
||
Manual Argon Gas Filling Machine For Insulating Glass Production Line

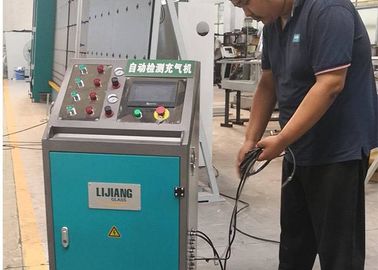

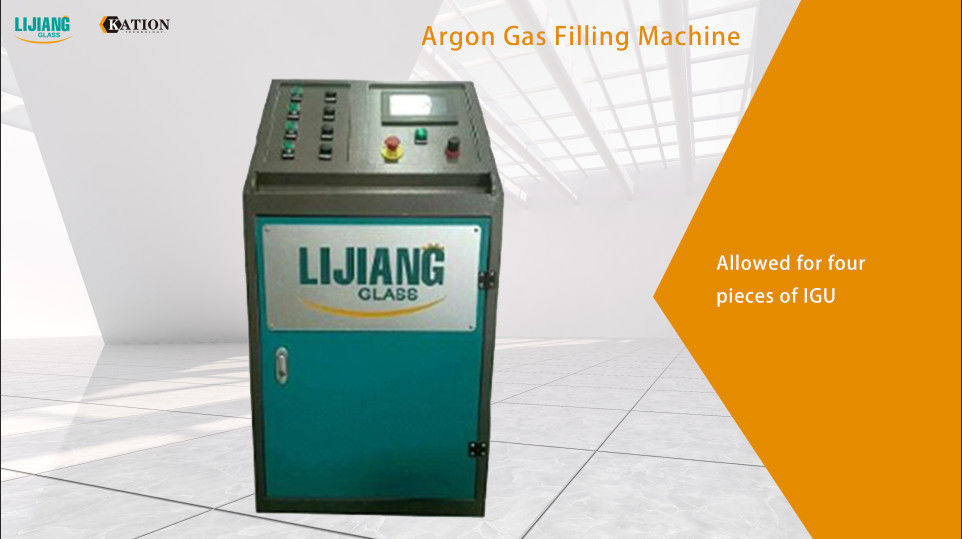

Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically
• Can set and display the data of gas value
Main feature:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
• Automatically fill argon gas with significant sealing effect, higher argon content
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• Can set gas value and show the process of filling gas on the touch screen
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
• 07 discharge section
• Storage glass
• Can be connected to sealing machine
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |

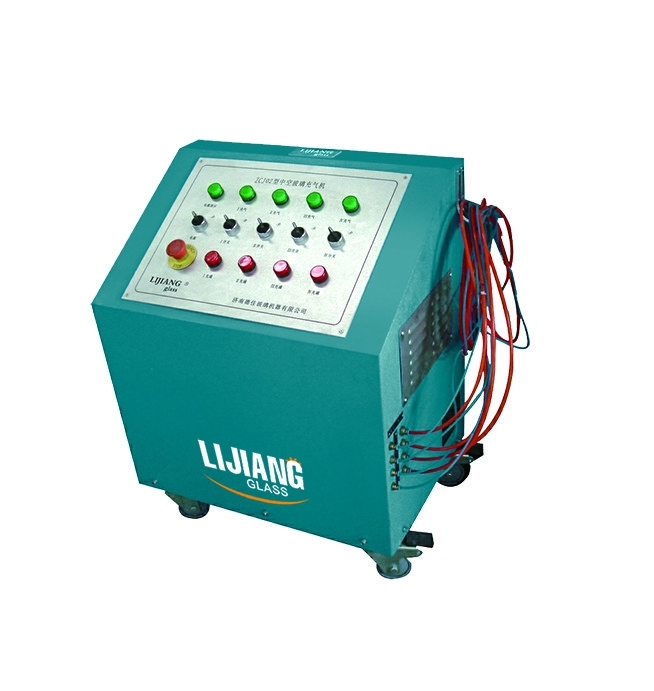

Manual Gas filling machine LJCJ02
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
Freezer LJSGF01
Main feature
• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass
• Storing at low temperature,to prevent sealant solidify
• Apply to polysulfide and silicone
• Can be effectively reduced waste when cleaning the glue
Technical data
| Max refrigerating temperature | 70ºC |
| Min heating temperature | -40ºC |
| Total power | 3.8kw |
| Refrigerating | <150min |
| Overall dimension | 1550*60*1300mm |
Edge finish machine LJKBM95
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
