Product Details:
|
| Voltage: | 380V 50Hz 3P (Option)\ | After-sales Service Provided: | Engineer Service |
|---|---|---|---|
| Condition: | New Machine | Glass Thickness: | 3 - 15mm (Option) |
| Warranty: | 1 Year | Product Name: | Vertical Glass Washing Machine |
| Max Glass Size: | 2500*3500mm | Pre Washing Section: | Yes |
| High Light: | Box vertical glass washer,15mm glass cleaning machine |
||

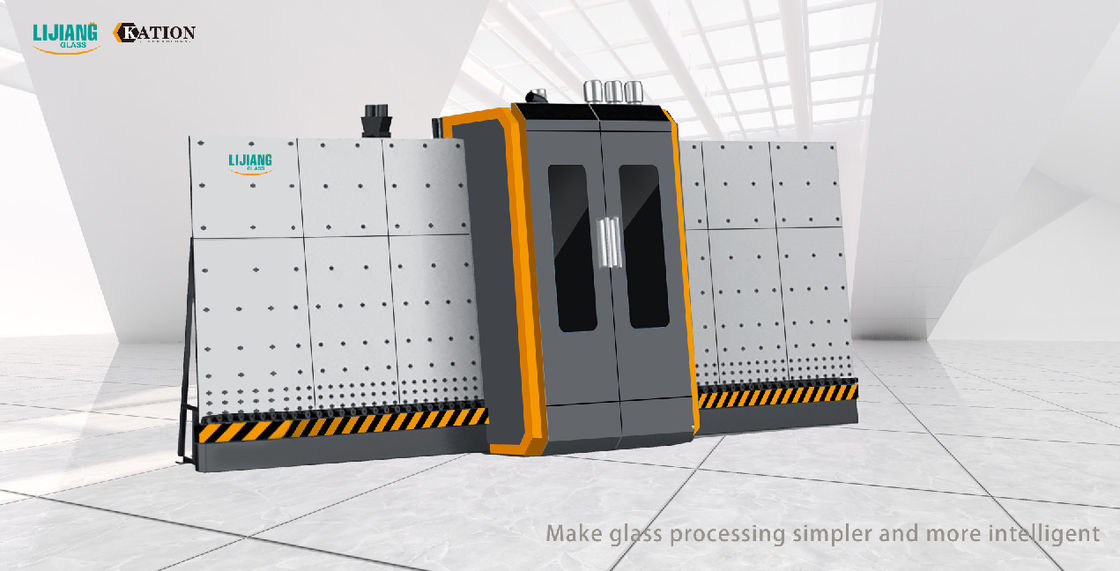

Hot Washing Machine With Stainless Steel Box For Vertical Glass Washing Machine
Vertical glass washing machine LJBQX 2535
1. Main feature
PLC control system, touch screen interface
Wash online and offline low-e glass, automatically recognizes Low-e film
Adopt the independent wind knife system to improve the washing efficiency
The air knife can automatically adjust the width according to glass thickness
Water tank automatic temperature control, water replenishing system
European silencer system & stainless steel drying system
Display washing speed on the screen directly
Pre washing section is optional
Transfer section
1. Low-e glass sensor
This sensor is installed before washing machine.It can automatically recognize Low-e glass, preventing the glass from dropping Low-e surface.
The transfer : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly.

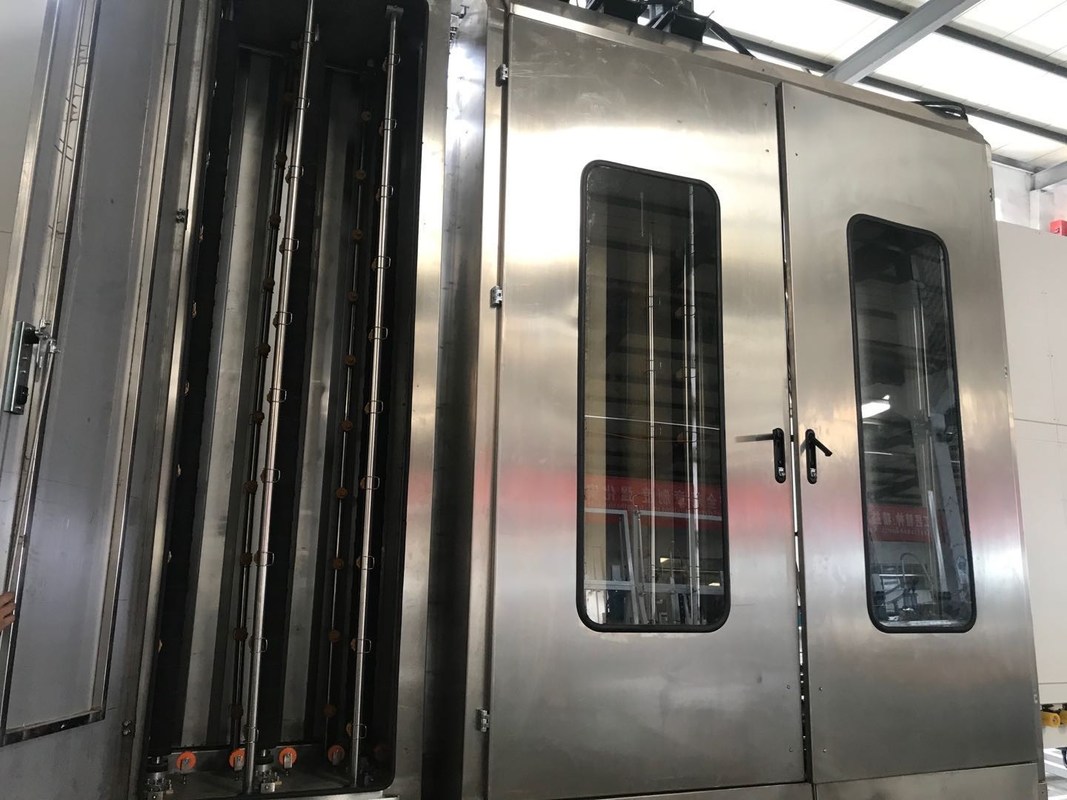

Washing & drying section
The whole washing and drying section adopt stainless steel, including the plate and interior spare parts.
The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.
It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low-e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for protecting low-e glass.
The noise can be controlled below 90 decibels by using nylon gear and sponges, our washing machine has the smallest noise decibel.
Adopts air heating system, use soft water to wash glass clearly.
Air knife is float design, it always keep the right and suitable distance 3mm between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)
6. Automatically recognize glass thickness
1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.
The front and back squeeze wheel are all actively moved and conveyor. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.(Same like LISEC)
INSPECTION PART
1. LED Checking lights
Using Energy saving lights to check the glass. Clearly reflects whether the glass is clean and free of impurities.
Technical data
| Max.glass size | 2000mm*2500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Materials | Stainless steel |
| Glass washing speed | 2-10m/min |
| Glass convyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Volatge | 3P 380V 60Hz |
