Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Glue Thickness: | 0.3-0.5mm |
| Glue Width: | 3.5mm | ||
| High Light: | Spacer extrusion coating machine,Double Glazing hot glue machine |
||
• PLC control system, touch screen interface
• Automatic recognition of the width of the aluminum strip, the glue nozzle can be adjusted
• The key part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled
• Quick warm-up to improve work efficiency
• With preheating function
• With exhaust gas inflation function, improve the sealing quality and save plastic time
• Fast coating speed, up to 47m/min
• Save glue

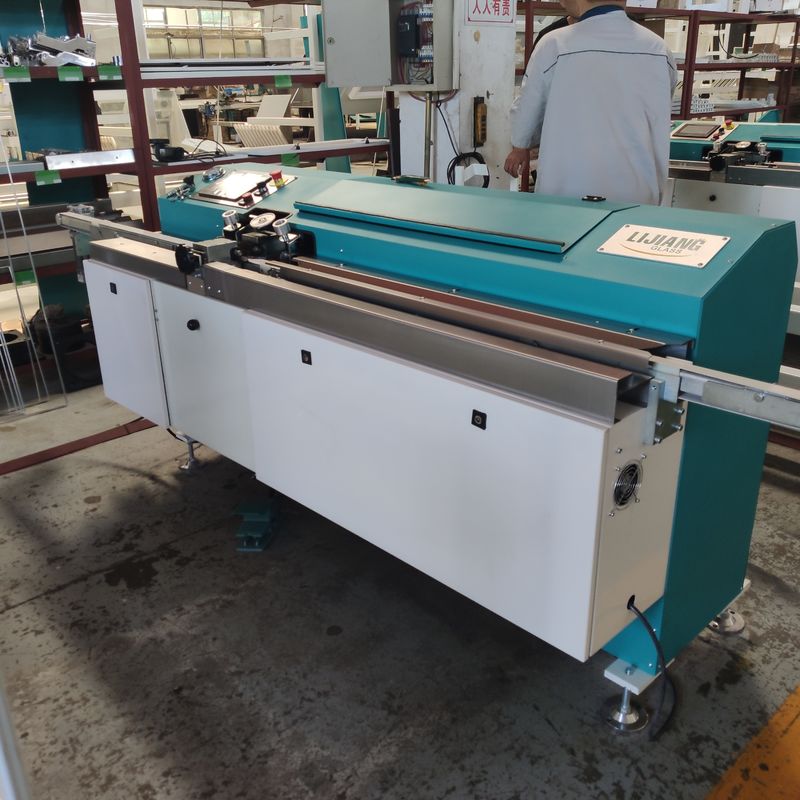

The LJTB 01 automatic butyl rubber extruder is used to evenly disperse aluminum spacers (and other spacers) with hot melt butyl adhesive. Butyl extruders use large electric control panels that are easier to operate than ever before. The speed is adjustable from 0m/min to 47m/min, the fastest speed in China. Butyl rubber extruders are very popular for their energy savings. The extrusion system adopts German pneumatic and hydraulic boosting system, the extrusion pressure is more stable. Butyl rubber extruder has reached world-class technical level due to its well-known features and complete spare parts.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
| Name | Brand | Original |
| PLC | SIEMENS | Germany |
| Valve | HAWE | Germany |
| Low voltage electrical apparatus | SIEMENS | Germany |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | Germany |
| Frequency converter | SIEMENS | Germany |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |

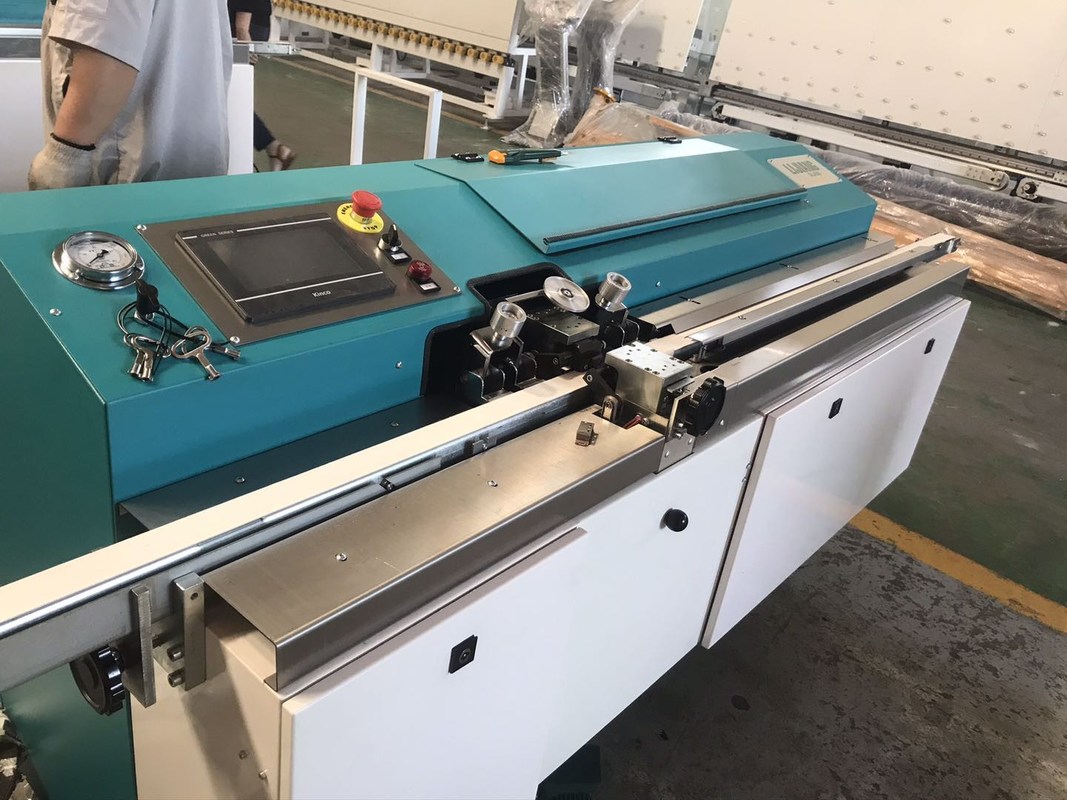

KINCO touch screen
Clear interface, simple operation, smart touch screen, updated program.
Germany HAVE valve
Using German Harvey valve, the performance is more stable.
Germany Maximator Cylinder
The supercharging system adopts Germany pneumatic and hydraulic cylinder, controlling the pressure of outlet oil strongly.
Controllable pressure roller (optional)
The wheels are used to suppress the spacer frame to keep running smoothly,
When you apply shims such as the following decorative strips, you can choose to close the press roller from the touch screen.
