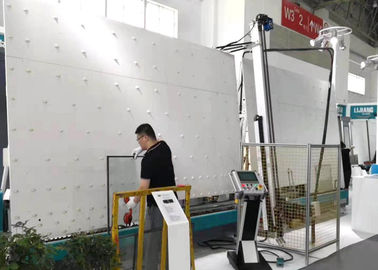

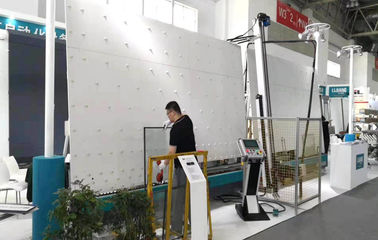

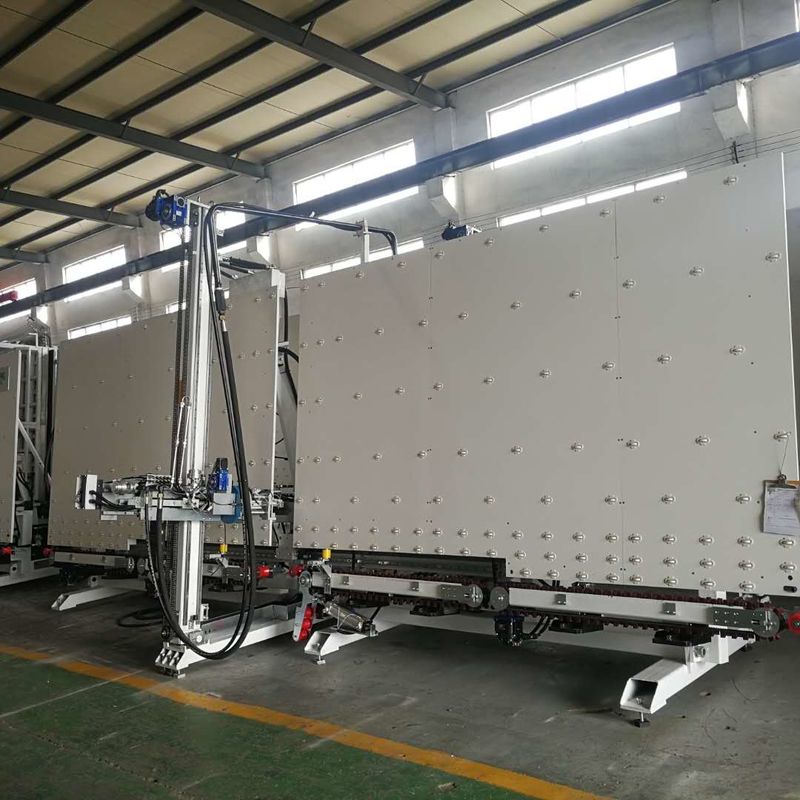

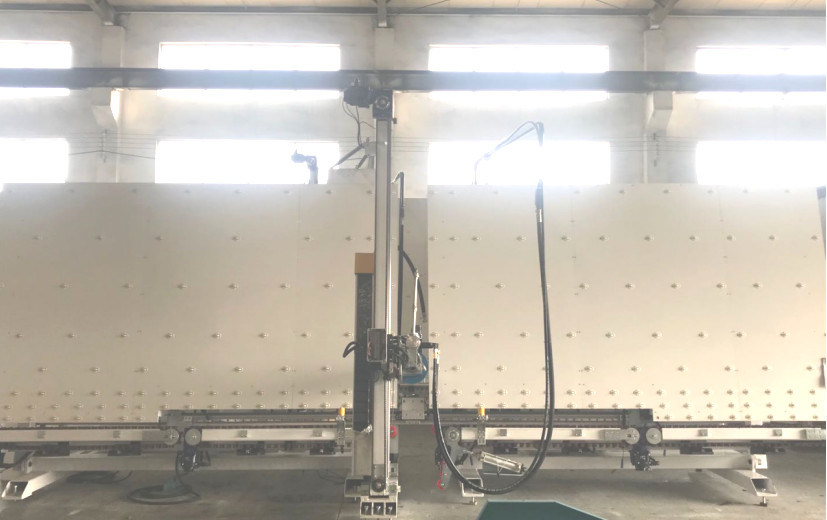

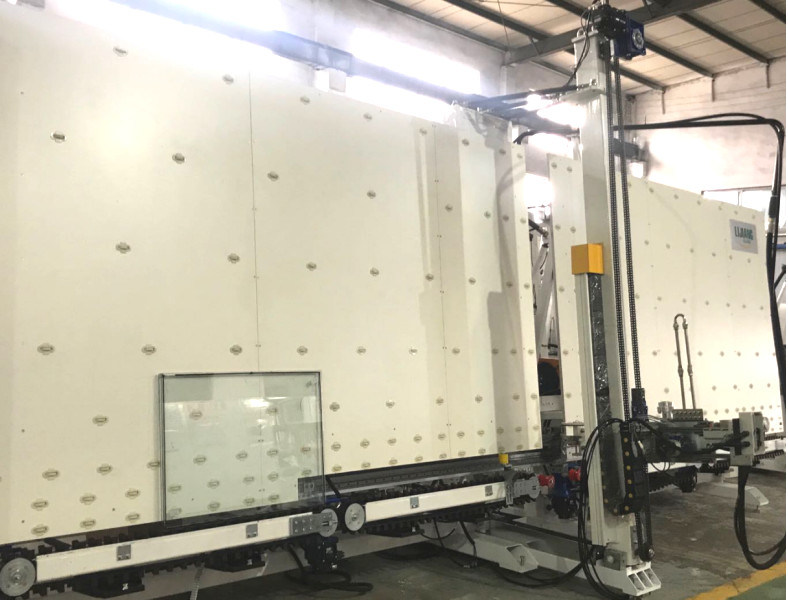

Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Max. Glass Size: | 2500*4000mm |
|---|---|---|---|
| Min. Glass Size: | 400*300mm | Glass Thickness: | 12-50mm |
| Working Speed: | 5-40m/min | ||
| High Light: | Glass small extruder machine,Silicon sealant dispensing equipment |
||
1.Min & Max glass size can be optional
2. Adopted 8 servo motors
3. Adopted Japan Yaskawa servo control system with stable performance
4. Automatically measure glass size, glue depth, glue speed 5. Adopt a timing belt, keep the transport smoothly in the correct position
6.Spares are produced with high standardization and high precision, make sure the machine can be used in long-term work
7.The glass corner need not be complete without air bubbles, smooth surface
8. Fully automatic and high efficiency machine
9. New scraper design, especially for creating a bubble-free train IG with very uniform sides and corners.
10. Automatically repairs glass corners with beautiful surfaces
11. Carry smoothly without scratches and pollution
12.Single functional parts are equipped with manual function, easy adjustment
13.Shape IG unit (optional)
14.4 step IG unit (optional)
15.Double and Triple IG units
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
One Set of Pump A & Pump B
the silicone extruder machine Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.
Two sets of pump A and pump B
the small extruder machine Equipped with two sets of A components and two sets of B components, it can be used for two different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive, etc.
Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
Dyad body device
The dyad body device has two functions. The left side is used to filter impurities and moisture when filling the gas with, and the right side acts as a lubricant.
Seal Seal device
Adopted Japan Yaskawa servo motor that controls the seal part by rotating 360°. No need to set up a scraper blade to scrape off excess glue and repair the glass corner a second time.
Eight servos
The robot uses 8 Yaskawa servos, four of which control the transmission part, and the other four servos control the suction cup, lifting, driving and adjusting mechanism and rotation.
