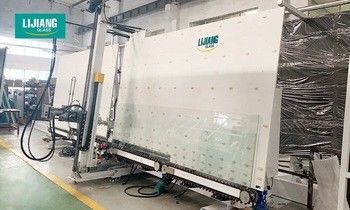

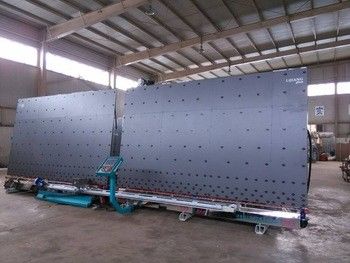

Window And Doors Vertical Silicon Sealant Spreading Machine

Window And Doors Vertical Silicon Sealant Spreading Machine
Window And Doors Vertical Silicon Sealant Spreading Machine Window And Doors Vertical Silicon Sealant Spreading Machine Window And Doors Vertical Silicon Sealant Spreading Machine Window And Doors Vertical Silicon Sealant Spreading Machine Window And Doors Vertical Silicon Sealant Spreading Machine

Large Image :  Window And Doors Vertical Silicon Sealant Spreading Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD63000/set
Packaging Details: wooden box
Delivery Time: 15work days
Payment Terms: L/C, T/T
Supply Ability: 10sets/month

Window And Doors Vertical Silicon Sealant Spreading Machine

Description
Name: Vertical Insulating Glass Sealing Robot Max. Glass Size: 2500*4000mm
Min. Glass Size: 400*300mm Glass Thickness: 12-50mm
Working Speed: 5-40m/min
High Light:

Window glass processing line

,

Silicon insulating glass sealant

Vertical Silicon Sealant Spreading Machine for Window and Doors

Main Features

  • Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine
  • 4 sections, can storage glass
  • Adopt timing belt, smooth transfer and accurate position
  • Automatically repair glass corners with scraper and roller
  • Automatically measure glass size, glue depth (30mm)
  •  Every auto-function is with manual operation
  • Can coat double glass
  • Shape glass with optional edges, step glass, triple glass (Optional)
  •  One set of booster pump controls two groups of sealants (Optional)
  • Can use silicone, polysulfide and silicone structural sealants
  • Glue head is in the front of the machine, which is easy for coating step glass
  • Can be connected with insulating glass processing line
  • With code scanning function (Optional)



Technical data

Max. glass size 2500*4000mm
Min. glass size 400*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 15kw
Overall dimension 11000*2000*3500mm





Electrical parameters

NAME ORIGIN BRAND
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA



Detail Images

One Set of Pump A & Pump B

Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.



Window And Doors Vertical Silicon Sealant Spreading Machine 0







Two sets of pump A and pump B
Equipped with two sets of A components and two sets of B components, it can be used for two different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive, etc.

Window And Doors Vertical Silicon Sealant Spreading Machine 1









Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

Window And Doors Vertical Silicon Sealant Spreading Machine 2Window And Doors Vertical Silicon Sealant Spreading Machine 3







Dyad body device
The dyad body device has two functions. The left side is used to filter impurities and moisture when filling the gas with, and the right side acts as a lubricant.

Window And Doors Vertical Silicon Sealant Spreading Machine 4







Seal Seal device
Adopted Japan Yaskawa servo motor that controls the seal part by rotating 360°. No need to set up a scraper blade to scrape off excess glue and repair the glass corner a second time.

Window And Doors Vertical Silicon Sealant Spreading Machine 5





Eight servos
The robot uses 8 Yaskawa servos, four of which control the transmission part, and the other four servos control the suction cup, lifting, driving and adjusting mechanism and rotation.

Window And Doors Vertical Silicon Sealant Spreading Machine 6





Window And Doors Vertical Silicon Sealant Spreading Machine 7Window And Doors Vertical Silicon Sealant Spreading Machine 8Window And Doors Vertical Silicon Sealant Spreading Machine 9Window And Doors Vertical Silicon Sealant Spreading Machine 10
