Double Glazing Glass 27A Hot Melt Butyl Extruder

Double Glazing Glass 27A Hot Melt Butyl Extruder
Double Glazing Glass 27A Hot Melt Butyl Extruder
Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder Double Glazing Glass 27A Hot Melt Butyl Extruder

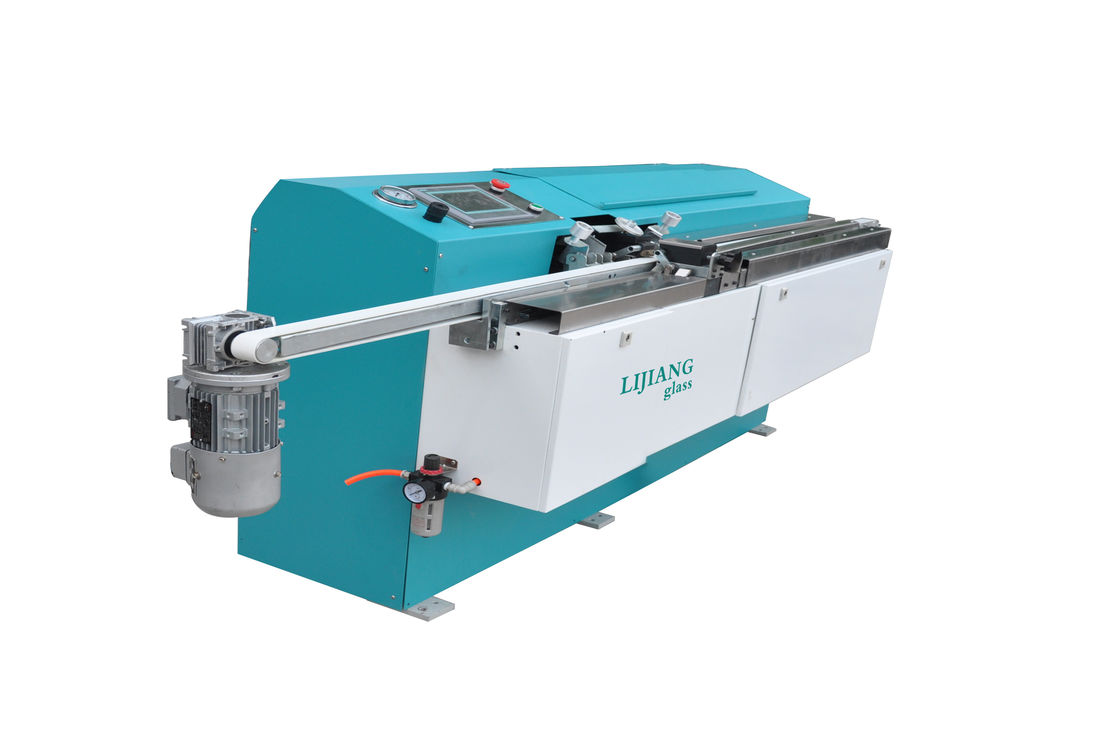

Large Image :  Double Glazing Glass 27A Hot Melt Butyl Extruder

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX OR PLASTIC FILM
Delivery Time: 3days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 20 sets per month

Double Glazing Glass 27A Hot Melt Butyl Extruder

Description
Name: Butyl Extruder Machine Coating Speed: 5-47m/min
Aluminum Spacer Width: 6A-27A Coating Pressure: 10-18mpa
Coating Temperature: 110-140 ° Air Pressure: 0.6mpa
Total Power: 5.7kw MachinCe Size: 2800*700*900mm
Condition: New Voltage: 380V 50HZ
Weight: 500kg Waranty: 12 Months
High Light:

27A insulating glass machine

,

Glazing extrusion coating machine

BUTYL EXTRUDER MACHINE GLASS DEEP PROCESSING MACHINES DOUBLE GLAZING GLASS MACHINE



DOUBLE GLASS MACHINE


Butyl extruder machine

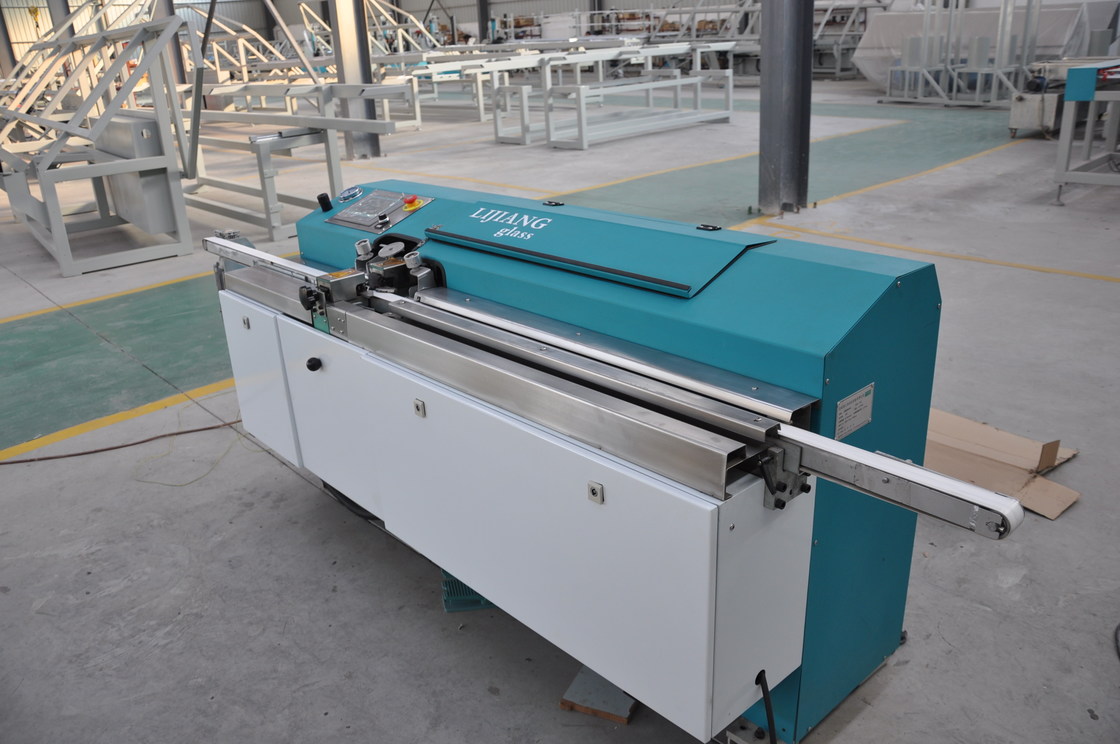

The butyl extruder machine is used for the coating of non-flexible spacer strip,



which is composed of hydraulic system, heating system, control system, fuselage and so on.



First of all, the equipment automatically detects the width of the spacer ,



the data is transmitted to the rubber nozzle, so that the opening width of the rubber nozzle reaches the width of the glue state,



and then the conveyor belt conveys the spacer strip to the rubber nozzle, and the rubber nozzle simultaneously glue on both sides of the



spacer strip. By PLC accurate control glue nozzle spray and break time,



and then by the hydraulic system and motor frequency converter control the amount of glue, so that the interval between the two sides of the



glue control within 0.1 grams

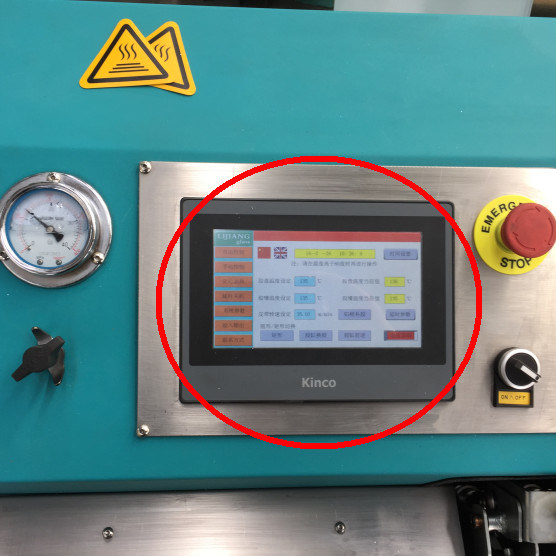

1. Touch-screen operation, simple and practical



2. Auto-measure the width of spacer, nozzle automatic positioning

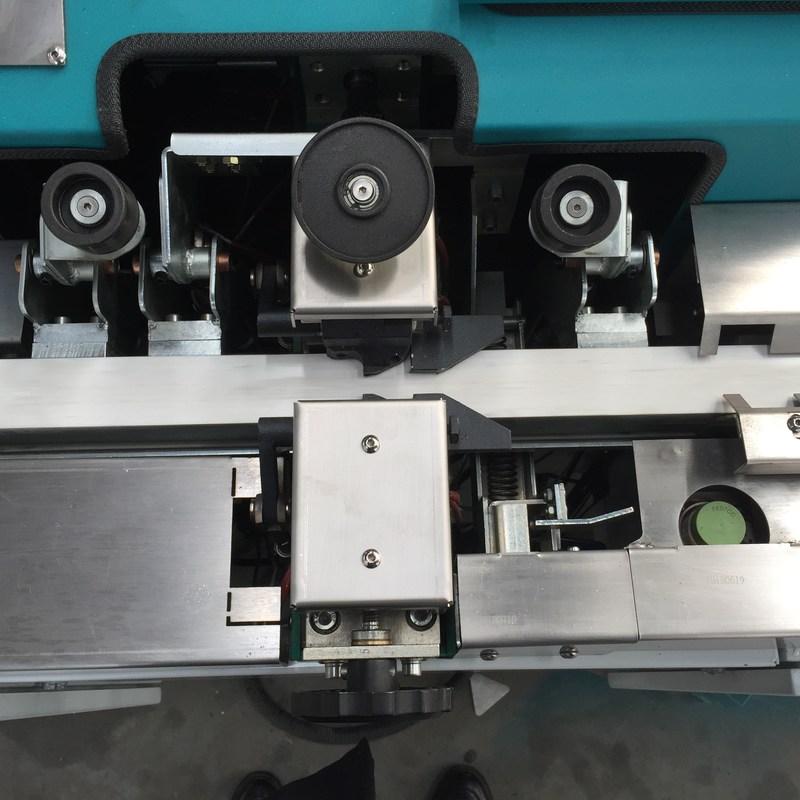

3. Auto-centering and auto-clamping

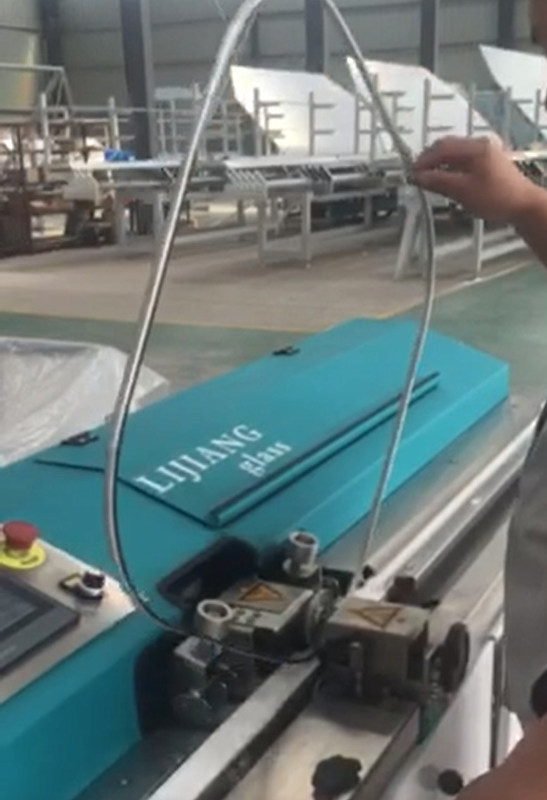

4. The bigger wheel help to coat the arc frame



5. Coating nuzzle is Teflon brand ,non-stick coating



6. The coating speed is up to 47m/min,saving materials up to 30%,( 5g/m)



7. The crossbeam height is easy to adjust,we can control the height of butyl

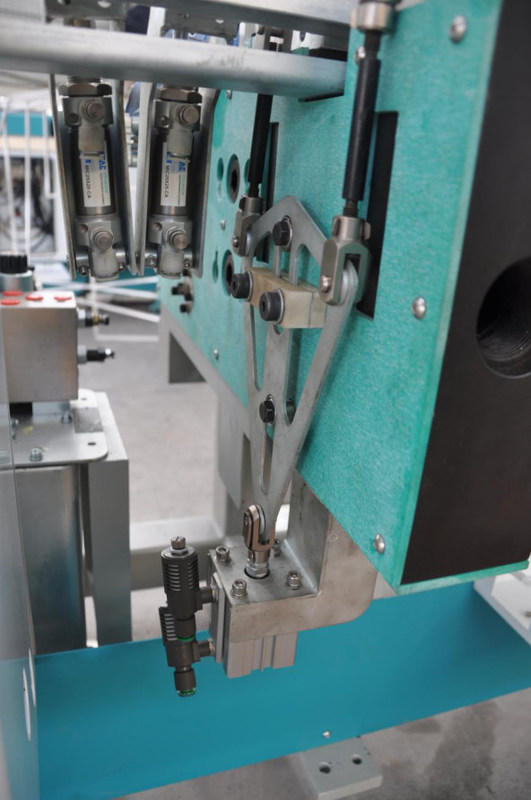

8. The special part controls both sides of nozzle opening and closing at the same time



9. Alarm device when use out of butyl and easy to load butyl



10. Pre-heading function,set a regular time before working time



11. Glue cylinder Adopt the upright structure, easy to change butyl.



12. Automatic filter function Automatically filter debris, keep spreading evenly.



13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand



14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned



15. Pneumatic component Taiwan Airtac



16. Japan OMROM Relay















Butyl extruder parameters



Name Brand Original
PLC KINCO China
Valve HAWE German
Low voltage electrical apparatus SIEMENS German
Hydraulic and pneumatic supercharging system MAXIMATOR German
Frequency converter KINCO China
Pneumatic components(cylinder/valve) ARTAC Taiwan
Quick exhaust valve/Vacuum generator SMC Japan SMC
Travel light OMRON Japan
Optical fiber OMRON Japan





Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg

























Double Glazing Glass 27A Hot Melt Butyl Extruder 0





Double Glazing Glass 27A Hot Melt Butyl Extruder 1

We have our own technician team :



IG line and automatic sealing robot technician team :There have 6 experts which all have more than 15 glass machine working experience.



Aluminum spacer bending and desiccant filling machine team :we have 3 technician which have rich experience in double glass machines.



Butyl extruder machine and sealing pump and hot melt machine team :have 4 experienced technician, all of them are worked in glass machine filed more than 12 years





Double Glazing Glass 27A Hot Melt Butyl Extruder 2

Double Glazing Glass 27A Hot Melt Butyl Extruder 3

Double Glazing Glass 27A Hot Melt Butyl Extruder 4

Double Glazing Glass 27A Hot Melt Butyl Extruder 5



National Glass Expo :Glasstec in Germany ,



CAM Eurasia Glass in Istanbul, India Zak,



India Glasspro, Glasstech Aisa ,



Glass build in America,



Mexico glass expo .Big Five In Dubai, Egpyt.



Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.











Double Glazing Glass 27A Hot Melt Butyl Extruder 6

Double Glazing Glass 27A Hot Melt Butyl Extruder 7

Double Glazing Glass 27A Hot Melt Butyl Extruder 8



Vertical Insulated Glass Produce Line for double glass production line



Auto Sealing Robot for double glass production line



Sealant Spreading Machine for double glass production line



Low-E Glass Washing &Drying Machine for double glass production line



Smart Edge Deleting Machine for double glass production line



Automatic Spacer Bending Machine for double glass production line



Automatic Desiccant Filling Machine for double glass production line



Butyl Extruder Machine for double glass production line



Glass Edge grinding Machine for double glass production line



Spacer Cutting Machine for double glass production line



Sealing gun Freezer for double glass production



Rotated Sealant Spreading Table double glass sealing



Argon Gas Filling Machine double glass



Semi-auto Aluminum Frame Transfer Machine for double glass production line



Molecular Sieve Filling Machine double glass production line



Glass Lifting Table double glass production line



Glass Loading /unloading Device for double glass production line



Water Treatment System for double glass production line (Economy)



Water Treatment System double glass production line (Advanced)



Auto Seaming Machine

Double Glazing Glass 27A Hot Melt Butyl Extruder 9



Double Glazing Glass 27A Hot Melt Butyl Extruder 10

Double Glazing Glass 27A Hot Melt Butyl Extruder 11

Service Team:



We have our own china domestic team and oversea service team .

Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.

24 hours online service and local engineer available , guarantee customers got timely service and solution .





Advantages of Lijiang Products



1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine



2, we have our own technician team and we got patent for the spacer bending machine and butyl extruder machine and desiccant filling machine and so on.

For the Double Glazing Production line we have latest technology about pressing part and argon gas filling part .

For the Automatic sealing robot , the mechanical head is in front of machine, it can achieve the real connection with Double Glazing production line when producing the step glass.

For the Spacer bending machine, our machine can bend aluminum spacer and warm edge spacer ,and stainless steel, warm edge spacer need heating before bend, the corner error is acceptable range, we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service .

for the butyl extruder machine , our best advantage is coating speed can up to 47m/min , it can save materials up to 30% compare with other brand(4-7g/m), we all use German Simens Japan SMC ,These national brand are stable and convenient for the future service. Now we are making new design -Machine can connect with big Bucket glue 200L, it can save refilling the glue time.

For the desiccant fillier machine , the biggest advantage is it can fill the rectangle and arc frame shape in one machine.

For the manual gas filling machine, we can input the argon gas concentration into touch screen and it can display the whole gas filling processing, customer will know exactly how much argon gas filled inside. When it up to the value you input , argon gas filling machine will automatic stop and give us alarming.
