Product Details:
|
| Production Name: | Insulating Glass Processing Line | Max Glass Size: | 2500mm*3500mm |
|---|---|---|---|
| Min Glass Size: | 280mm*400mm | Glass Thickness: | 50mm |
| Glass Washing Thickness: | 3 - 15mm | Washing Brushes: | 6 Pieces Of Soft Brushes |
| Insulating Glass: | Double / Triple / Step Glass | Warranty: | 1 Year |
| High Light: | Argon Gas glass production line,Pressing insulating glass machine,50mm Insulating Glass Processing Line |
||

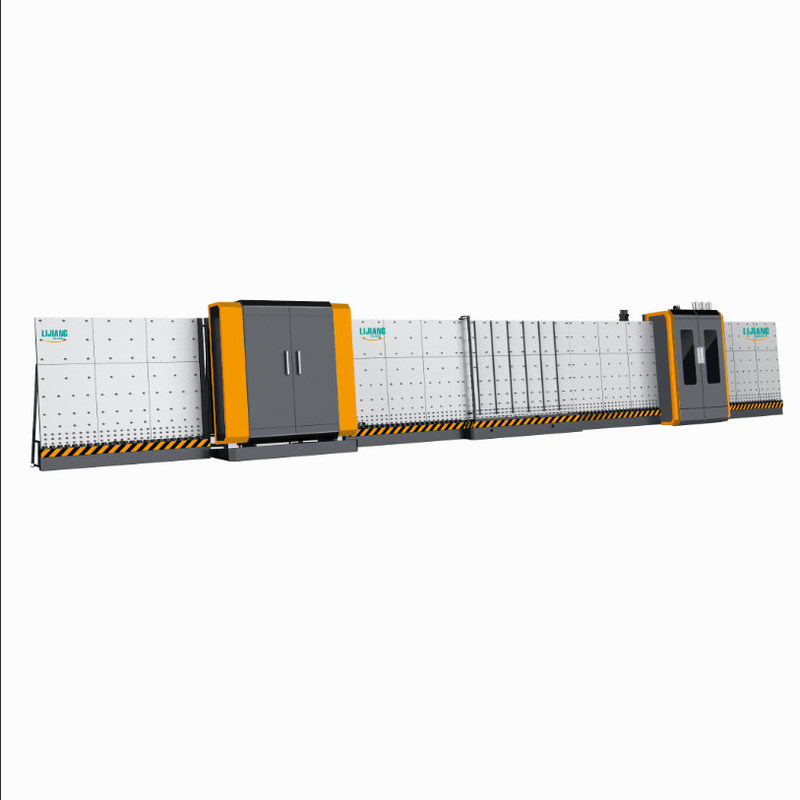

Automatic Filling Argon Gas Insulating Glass Processing Line With Washing And Pressing Machine
Main Features :
• German Siemens PLC control system, touch screen interface
• Automatic identification coating and Low-E glass
• 3 pairs of soft brushes can wash online and offline Low-E glass
• The washing machine adopts SS material and waterproof device
• Water tank with automatic temperature control and water processing system
• Noise reduction system
• Online display of washing speed
• Intelligent intermittent work, saving energy
• Adjustable pressing board to keep the plate pressing surface straight
• Automatic external rotary positioning system of glass
• Connection mode of aviation plug
Options:
• Pre-wash machine
• Triple IG unit
• 4-sided step IG unit
• Automatic Gas filling, set gas value, display the process of filling, high gas concentration
•Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
•Adopts conveyor belt to transfer glass, uses servo motor to press glass
•The pressing plate can be opened for easy maintenance
•Pressing board with adjustable structure to guarantee long-lasting service life
•Automatically fill argon gas with significant sealing effect, higher argon content
•Set zones to fill different size of glass with follow-up sealing method reduces argon loss
•Can set gas value and show the process of filling gas on the touch screen
•Fast reacting sensor for permanent control of gas filling process
•Gas concentration can reach more than 90%
•No need to drill holes on the spacer frame
•Standard gas is Argon gas
Parameters:
|
Minimum glass size |
450×280mm |
|
Maximum glass size |
2000x2500mm |
|
Flat glass thickness |
3-15mm |
|
Double Glazing glass thickness |
60mm |
|
Washing speed |
2-10m/min |
|
Washing brushes |
6 pieces |
|
Water supply |
0.5t/h, ≤40s/cm |
|
Air supply |
0.8m/min pressure≥0.8MPa |
|
Total power |
3P380V 50HZ 40KW |
|
Dimension |
23500mm*3200mm*3700mm |
Related production:
Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
Edge finish machine LJKBM95
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
