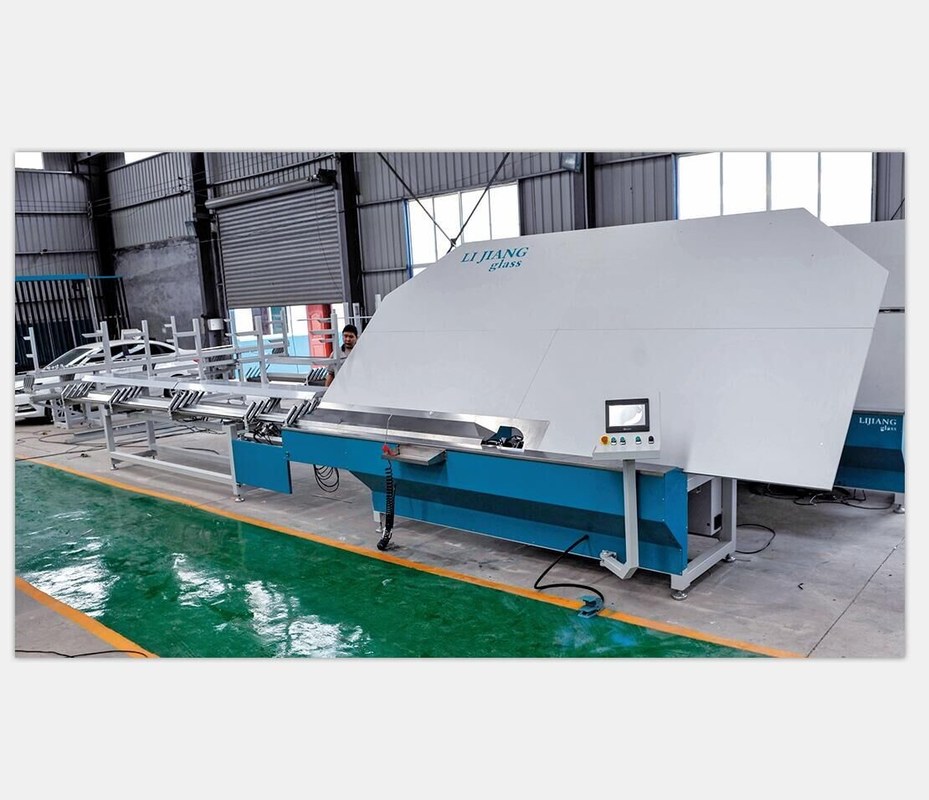

Siemens PLC Control 27mm Spacer Bending Machine

Adopt Siemens PLC control system Automatic spacer bending machine LJZW2020

Automatic aluminum spacer bending machine is controlled by PLC. By virtue of the mode of
human-machine interactive data input on the touch screen, the facility can get the expected
parameter data in different specifications of rectangular aluminum frames, or the convex
polygon’s edge and corner data composed of arc-shaped section or straight flange not more
than 8 edges. Simultaneously, acquire the quantity of the aluminum frames that are required
to be processed, as well as the parameter of other control equipment in accurate operation,
which essentially satisfy the required shapes of the current insulating glass.

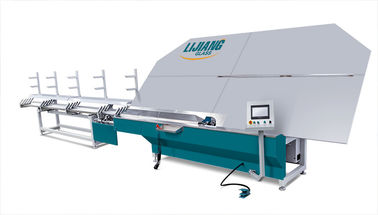

Equipment body of bending machine

Equipment body of bending machine is composed of body and frame, aluminum frame backp
lane, automatic feeding system, feeding system by servo, automatic breaking mechanism,

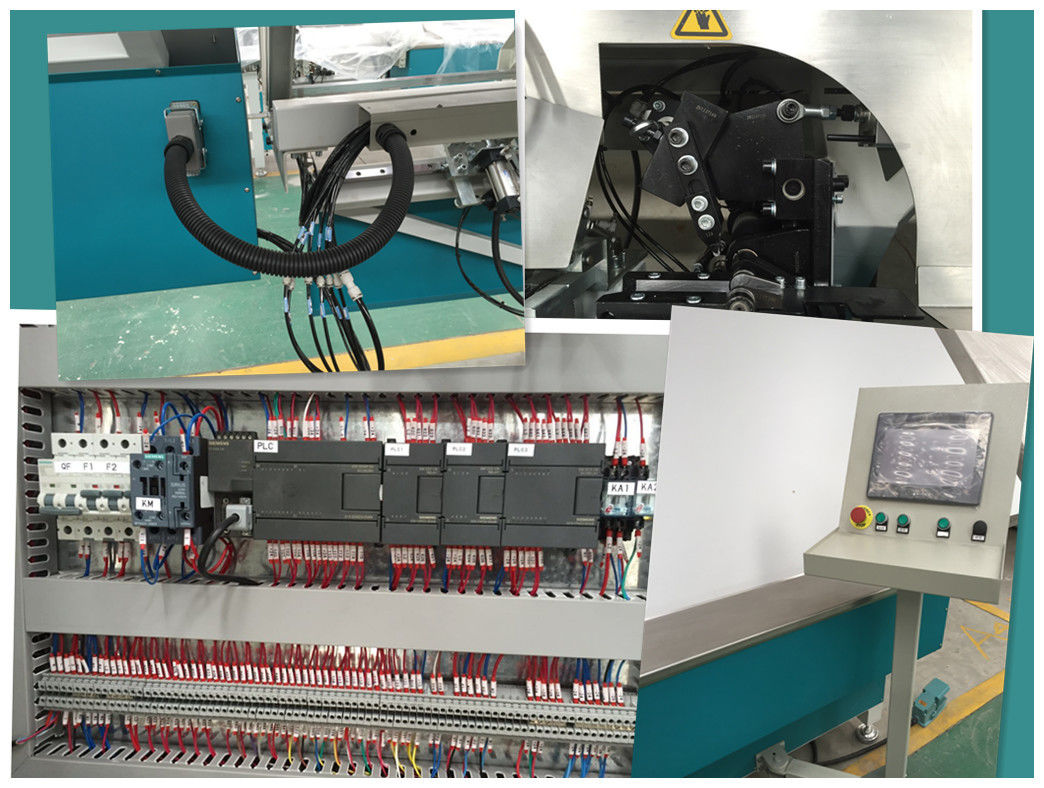

automatic bending system, electrical control system, power control system, control cabinet
and touch human-machine interface.

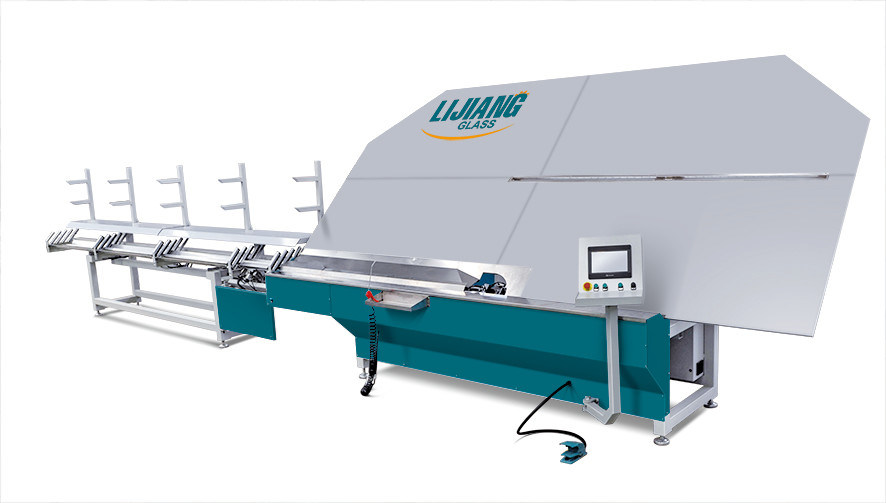

body and frame of machine 2. aluminum frame backplane 3. automatic feeding system 4.
Feeding system by servo 5. automatic breaking mechanism 6. automatic bending system 7.
electrical control system 8. human-machine interface system
(1) Body and frame of the machine: as the carrier of the whole support and component
installation of a bending machine; adopt way of welding.
(2) Aluminum frame backplane: adopt industrial multi-layered board used in the process
of forming aluminum frame to set off the plane of aluminum strips. The comprehensive
structure can rotate and fall on the base, so as to make it convenient for the fixation of
facilities in the long distance transport;
(3) Automatic pipe connecting system: the system is composed of joint positioning components
and aluminum strip positioning components. When the end of the aluminum spacer reaches the
signal, the pipe connecting system will automatically locate the end of the aluminum spacer
and wait for the next aluminum spacer to connect;


Bending stainless steel ( Optional)



Bending warm spacer (Optional)



Equipment in Germany
