Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot
Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot

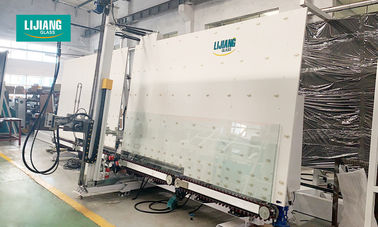

Large Image :  Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 55000-65000
Packaging Details: Container
Delivery Time: 30-40
Supply Ability: 20sets

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot

Description
Name: Vertical Insulating Glass Sealing Robot Max. Glass Size: 2500*4000mm (Optional)
Min. Glass Size: 300*300mm Glass Thickness: 12-50mm
Working Speed: 5-40m/min Air Pressure: ≥0.6MPa
High Light:

Glass silicone extruder machine

,

Glue sealant dispensing equipment

Vertical Insulating Glass Sealing Robot LJTJ2540 automatic identification of glass size, glue depth,



Main Features:

• Min & Max glass sizes can be optional

• Adopt 8 servo motors

• Adopt Japan servo control system with stable performance

• Automatically measure glass size, glue depth and glue speed with linear adjustment

• Adopt timing belt to keep smooth convey with accurate position

• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

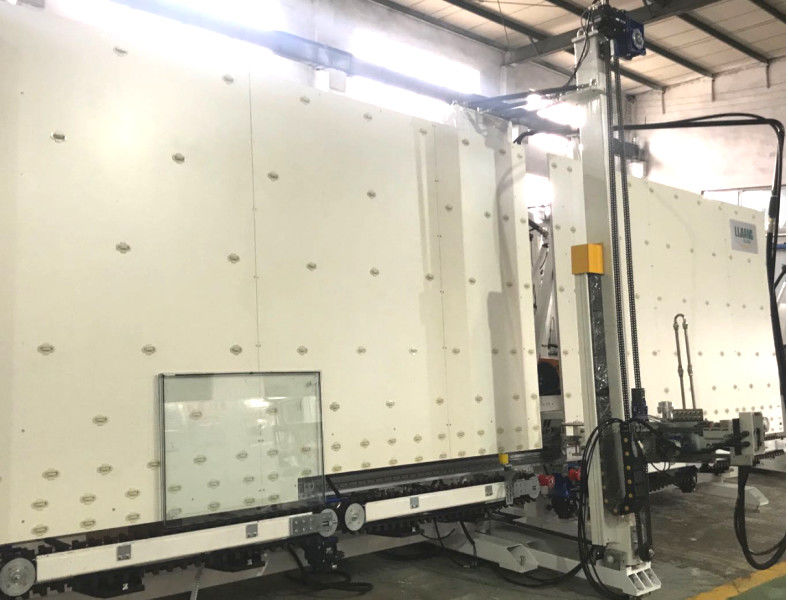

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 0



•The glass corners are full without air bubbles, smooth surface, no need to
•Full automatic and high-efficiency machine
•Automatically repair glass corners with beautiful surface
•Smooth convey without scratch and pollution
•Single-function parts are equipped with manual functions, easy adjustment
•Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
•Seal stepped glass fully at once (Optional)
•Can seal stepped IG with four sides (Optional)
•Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)

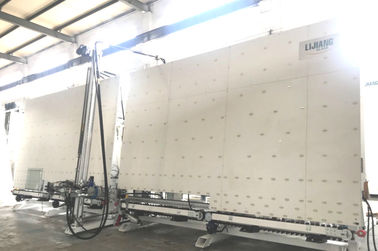

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 1

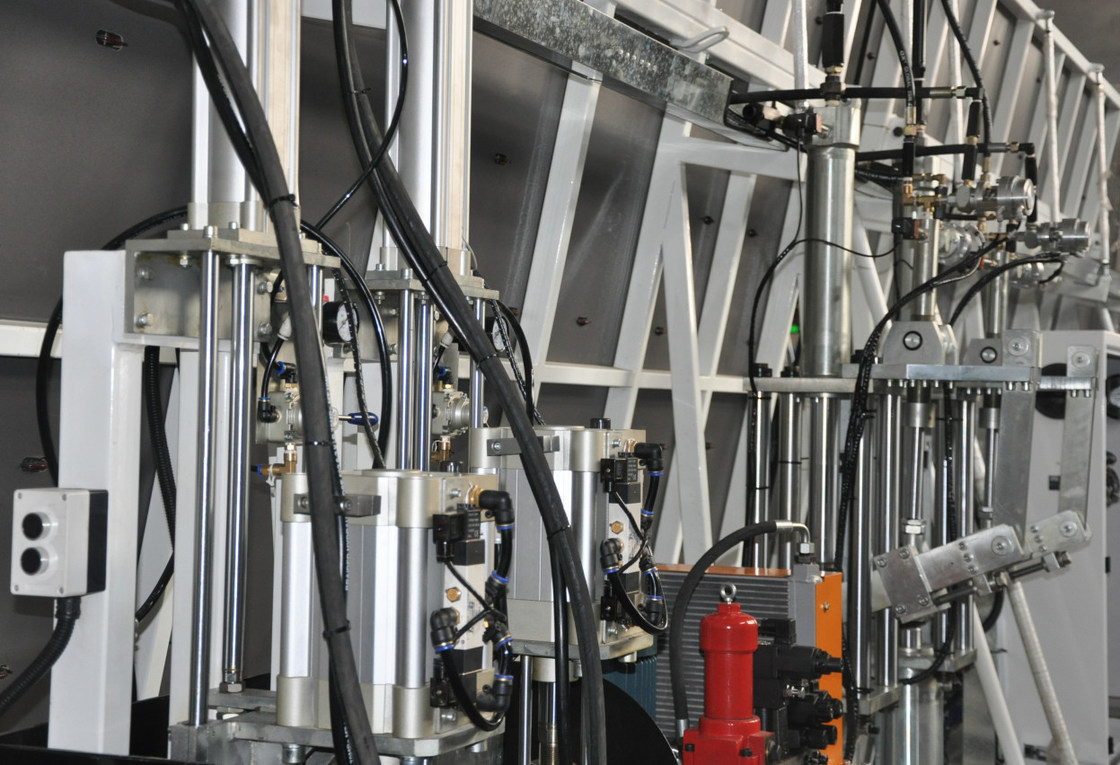

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 2



Technical data

Max. glass size 2500*4000mm (Optional)
Min. glass size 300*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 12kw
Overall dimension 11000*2000*3500mm

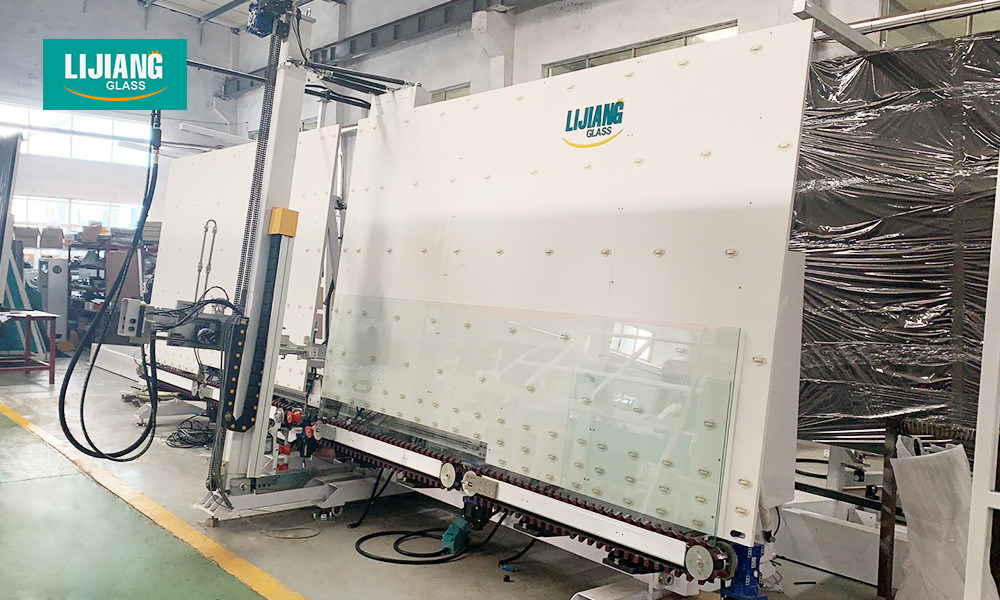

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 3





Electrical parameters

NAME ORIGIN BRAND

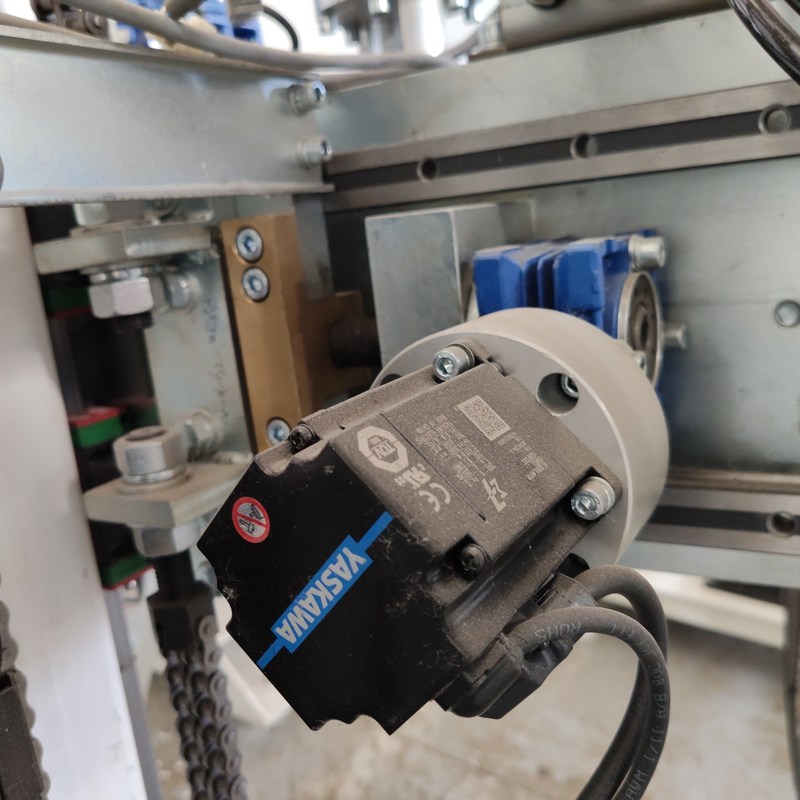

Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA

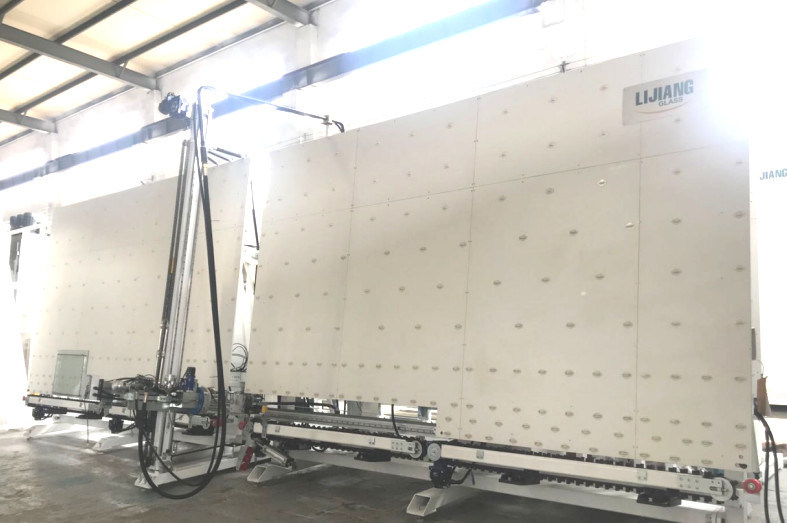

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 4



Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 5



Jinan Lijiang Automation Equipment Co.The company is committed to building high-end insulating

glass machinery and equipment by learning from famous experts, establishing the research and

development centers, cooperating with domestic and foreign well-known enterprises, importing

advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua,

Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises.

Since the establishment of the company, our products have been exported to Europe, America, South America,

the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked

with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University

and others, to constantly improve the level of technical research. So far, we have independently produced the

vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer

bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine,

its technology and quality have reached the highest leading level in China.

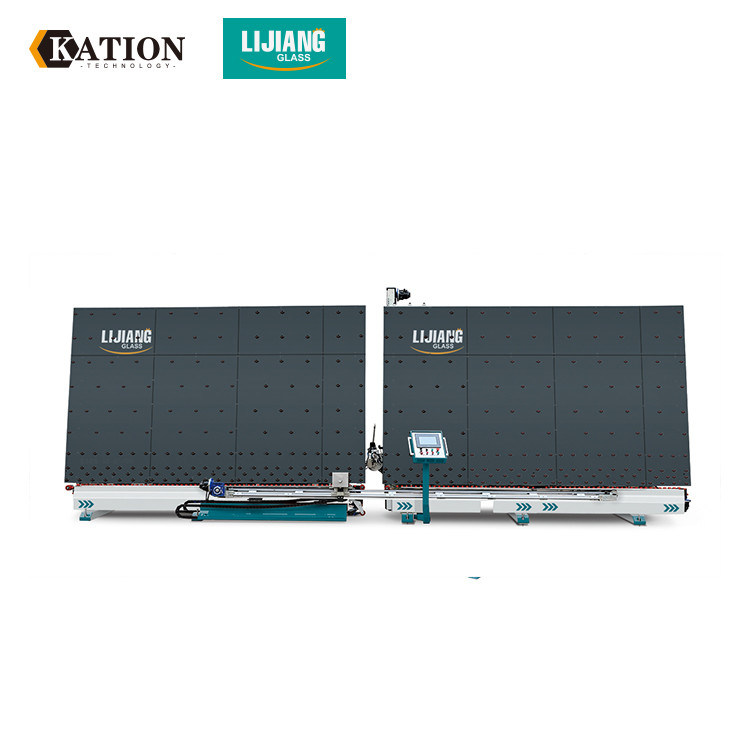

Identification glass Size Glue Depth Vertical Insulating Glass Sealing Robot 6
