Product Details:
|
| Name: | Glass Cantilever Crane With Lifting Sucker | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Liftting Wight: | 800kg | ||
| High Light: | Glass hoist lifting equipment,2 Meter glass lifting devices |
||
Gold Partner Glass Cantilever Crane with lifting sucker and insulating glass line 2 meter
LIJIANG GALSS-SERVICE FOR ALL GLASS PROCESSING MANUFACTURE IN THE WORLD

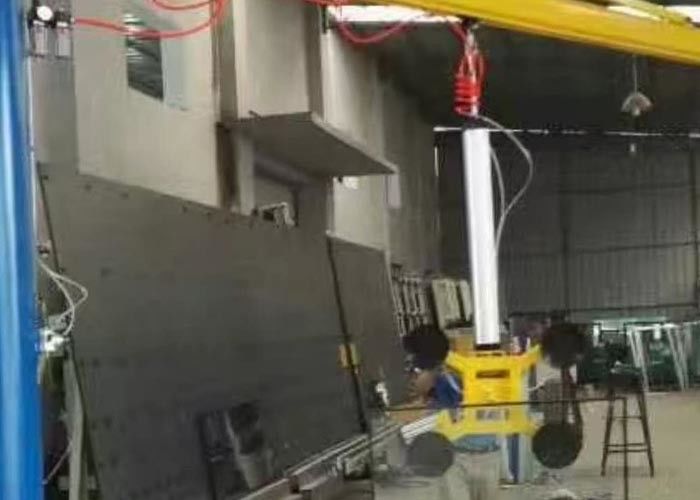

Cantilever crane LJXJ500-800

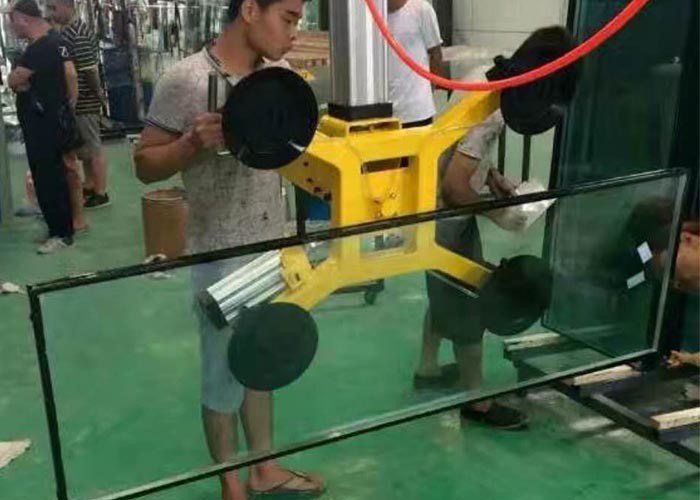

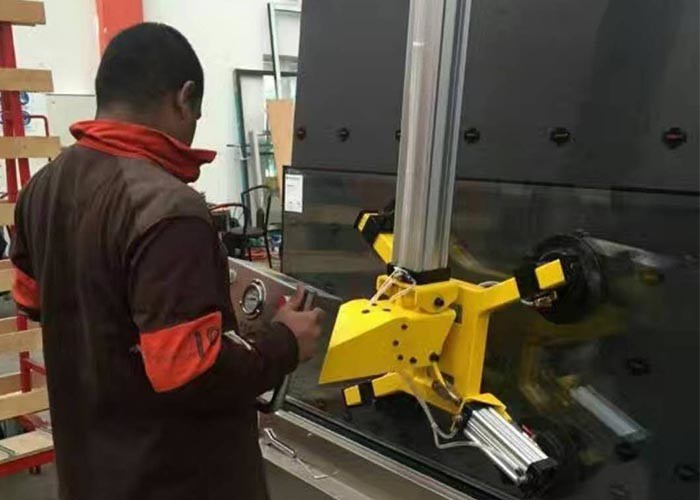

1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Parameter:
| Safety-absorption | 200KG/400kg/600kg/800kg |
| Performance | Rotation 0-90 degree and lifting 600-1200mm |
| Quantity and size of sucker | 2/4/6/8 |
| Working gas source | 5-8 Pa |
| Outer size | L 1120xW660XH620mm |
| Net weight | 550kg |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

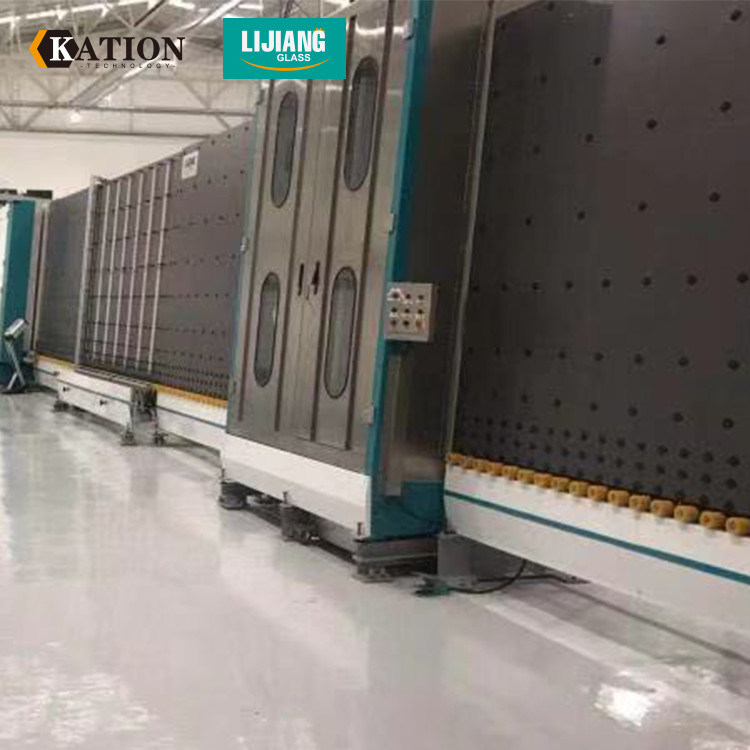

LJBZ2025 Vertical insulating glass production line
The whole line include 7 parts: (from right to left)
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading section
Main technical parameters
| Max.glass size |
2000*2500mm Gas filling line 2025 |
| Min.glass size | 280*450mm |
| Glass thickness | 3-12mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 48m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 34KW |
| Dimension | 23500*3500*3700mm |
Parts list
| Components | Brand | Remark |
| Servo motor | GERMAN SIEMENS | For stepped glass |
| Servo driver | GERMAN SIEMENS | For stepped glass |
| Servo motor | GERMAN SIEMENS | For transfer |
| Servo motor | GERMAN SIEMENS | For press |
| PLC | GERMAN SIEMENS | |
| Low voltage component | GERMAN SIEMENS | |
| Frequency converter | GERMAN SIEMENS | |
| Switching power supply | Taiwan MW | |
| Optoelectronic switch | Korea Autonics | |
| Pneumatic component | Taiwan Airtac | |
| Pneumatic component | Japan SMC | |
| Touch screen | Taiwan Wenview | |
| Travel switch | Taiwan Tiande | |
Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
