Product Details:
|
Condition: | New | Voltage: | 380V 50Hz 3P |
---|---|---|---|
Warranty: | 1 Year | Product Name: | Automatic Sealing Robot |
Application: | Second Sealants Sealing Machine | Max Glass Size: | 2500mm*3500mm |
Min Glass Size: | 280mm*400mm | Glass Thickness: | 50mm |
High Light: | Pump A silicone extruder machine,Pump B small extruder machine |

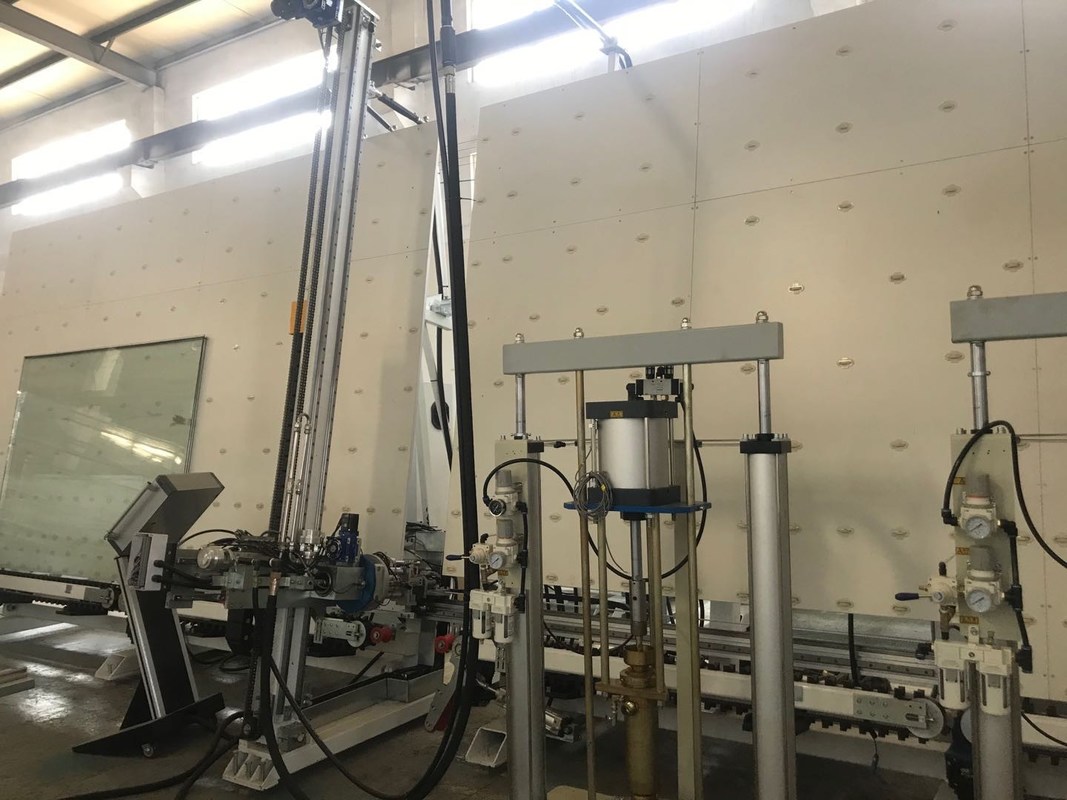

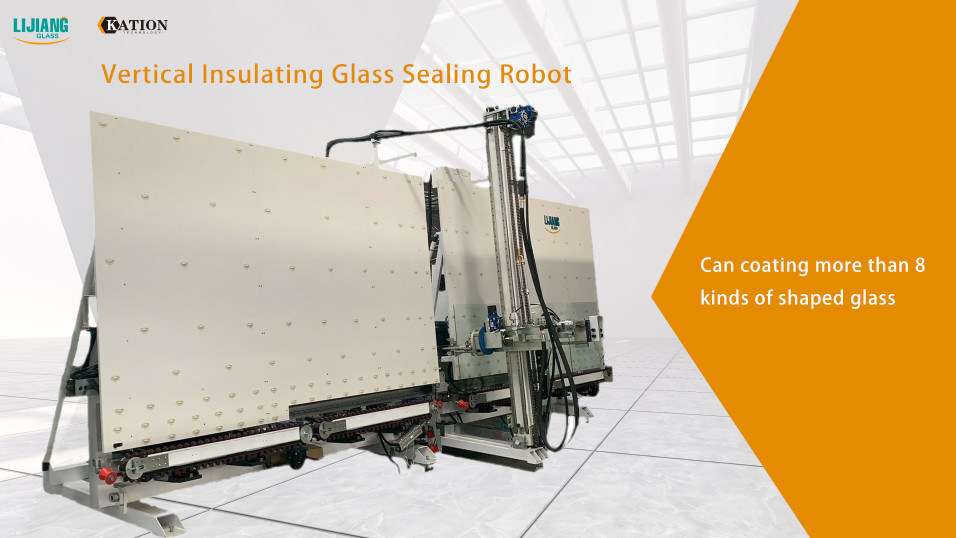

Automatic Silicone Sealants Sealing Robot With Pump A And Pump B Glues
Main performance features:
1. The whole machine is equipped with Yaskawa servo motor, servo control system and touch screen, which is more convenient and intuitive for operation, real-time display of technical parameters, simple and intuitive, stable and efficient.
2. It can be used by connecting or stand-alone.
3. Automatic memory function.
4. The glass corners are full without bubbles, and the glue output is controlled accurately.
5. The transmission is divided into four sections. The glass can be pre-stored, which can effectively reduce the waiting time of the glass and effectively improve the efficiency
6. Automatic identification of glass size, automatic detection of glue depth and automatic adjustment of glue application speed
7. Synchronous belt drive to ensure smooth glass transportation and accurate positioning
8. It can seal triple , double IG units, shaped and f4-sided step glass
9. The machining center of parts is highly standardized, which can achieve interchangeability, improve the convenience of maintenance, and ensure the long-term stable use of the equipment;
10. The glass support module on the conveyor belt adopts the replaceable V-shaped block, which is simple and convenient to replace after wear and low cost;
11. The conveyor wheel with back plate adopts inlay design, making the glass run more smoothly;
12. Support two different sealants gluing, with a easy operation.
13. The glue mixing system adopts the anti blocking structure, which is easy to clean.
Specification :
Max. glass size | 2500*4000mm |
Min. glass size | 400*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | ≥0.6MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 15kw |
Overall dimension | 11000*2000*3500mm |
Details information :
• Japan Yaskawa servo system control,full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)

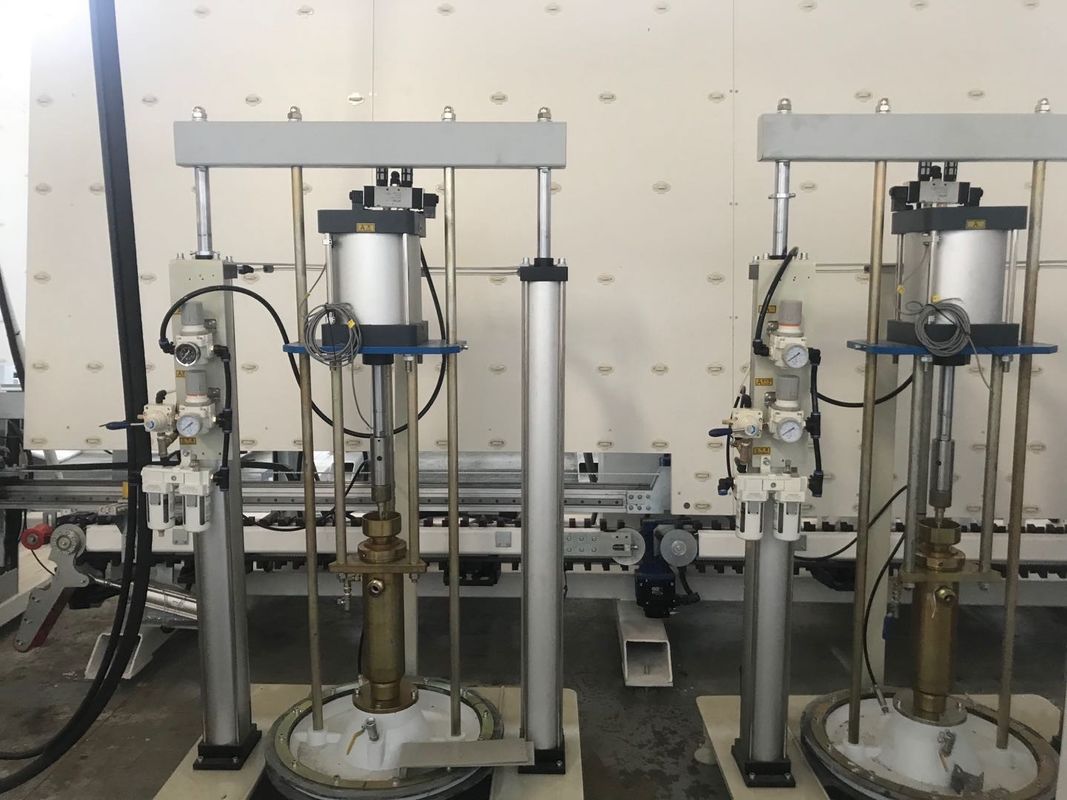

Two sealing system : double sealing pumps with two pump A and two pump B, two sets of glue mixers, one set of glue nozzle. When you change the different sealants, the first sealant. should be flushed clean with the second sealant.
